FUEL TAP KIT YAMAHA YFM400 KODIAK 03-06, YFM400 GRIZZLY 07, YFM450 KODIAK 03-06

FUEL TAP KIT YAMAHA YFM400 KODIAK 03-06, YFM400 GRIZZLY 07, YFM450 KODIAK 03-06

£55.44 GBP
£55.44 GBP
Sale Sold out
Taxes included.

2003 - 2006 Yamaha YFM 400 FA Kodiak 4x4 ATV,
2007 - 2007 Yamaha YFM 400 FG Grizzly 4x4 IRS ATV,
2003 - 2006 Yamaha YFM 450 FA Kodiak 4x4 ATV

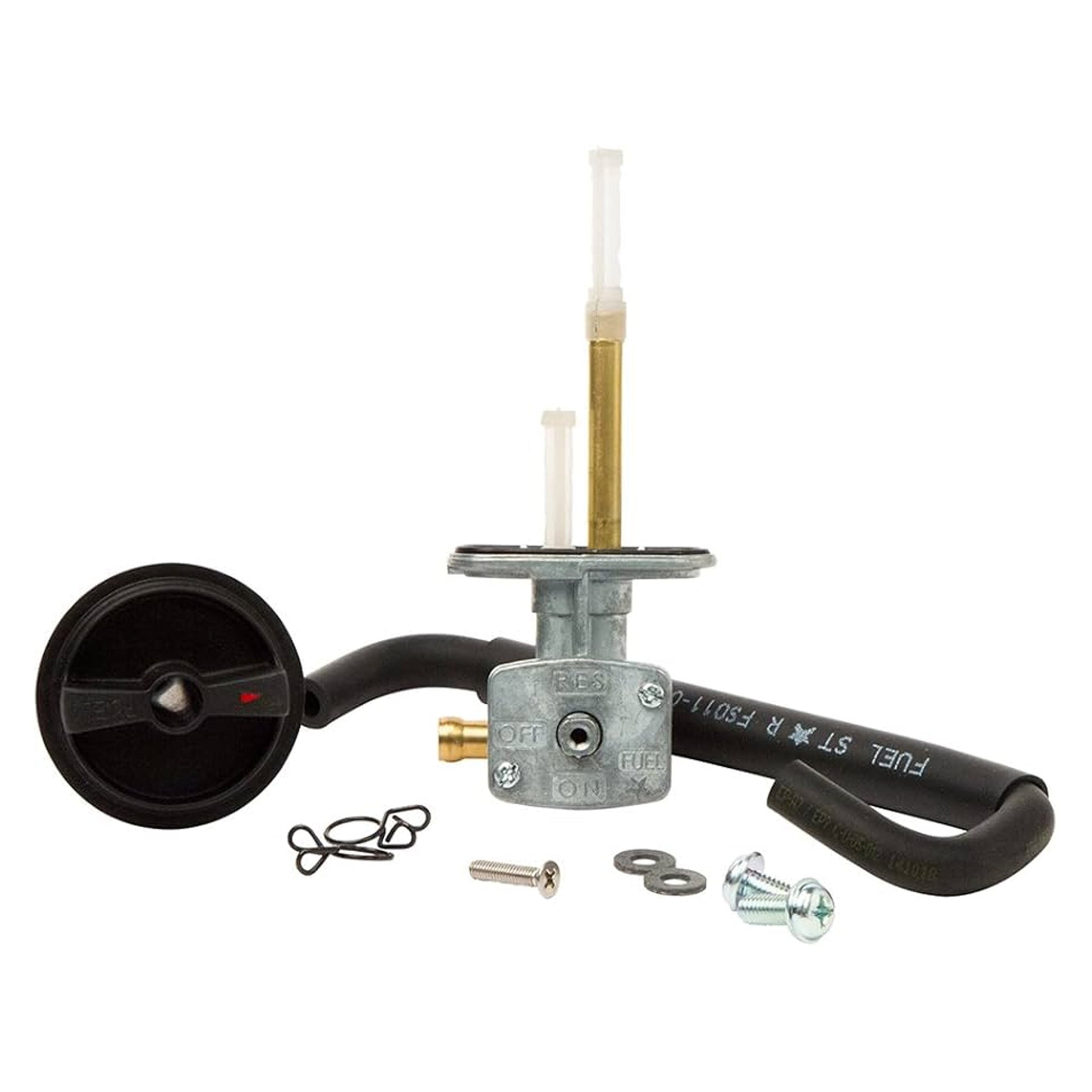

Fuel Star Fuel Valve Kit - FS101-0051
  • Complete replacement fuel petcock assembly
  • Sold each
Included Items: �

(1) Fuel valve assembly

(1) Rubber fuel line

(2) Fuel line clamps

(2) 6mm-1.00 x 15mm Phillips washer head bolts

(2) Mounting spacers

(1) Plastic on/off fuel knob

(1) 4mm-.70 x 15mm Tapered phillips head screw

Instructions

Cross Reference Numbers Only:
Fuel Cock Assy 1 5GH-24500-00-00 5GH-24500-10-00
O-Ring 4X8-24512-00-00
Screw, Pan Head 98507-03014-00
Seal, Cock 3AJ-24534-00-00 3AJ-24534-01-00
Valve Packing 3AJ-24523-00-00 3AC-24523-00-00
Lever, Cock 5GH-24524-00-00 1NS-F4524-00-00
Screw, Flat Head 98707-04018-00
Washer, Plate 90202-05193-00 90202-05187-00
3Screw 90149-06011-00
Pipe, Fuel 1 (YMUS) 5ND-F4311-00-00 3C2-F4311-00-00
2Clip 90467-10008-00 90467-100A1-00

Yamaha
  • 2006 Yamaha YFM400FA Kodiak 4x4 Ultramatic
  • 2005 Yamaha YFM400FA Kodiak 4x4 Ultramatic
  • 2004 Yamaha YFM400FA Kodiak 4x4 Ultramatic
  • 2003 Yamaha YFM400FA Kodiak 4x4 Ultramatic
  • 2006 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
  • 2005 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
  • 2004 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
  • 2003 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
  • 2007 Yamaha YFM400FG Grizzly 4x4
  • 2007 Yamaha YFM400FGH Grizzly 4x4 Hunter Edition
  • 2006 Yamaha YFM450FA Kodiak 4x4
  • 2005 Yamaha YFM450FA Kodiak 4x4
  • 2004 Yamaha YFM450FA Kodiak 4x4
  • 2003 Yamaha YFM450FA Kodiak 4x4
  • 2006 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
  • 2005 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
  • 2004 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
  • 2003 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
  • 2006 Yamaha YFM450FSE Kodiak 4x4 Special Edition
  • 2005 Yamaha YFM450FSE Kodiak 4x4 Special Edition

�

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.



REF FS101-0051
