ATHENA WATER PUMP SEAL 10x24x6,DERBI GPR 97-05, SENDA 97-05, GSM 00-03

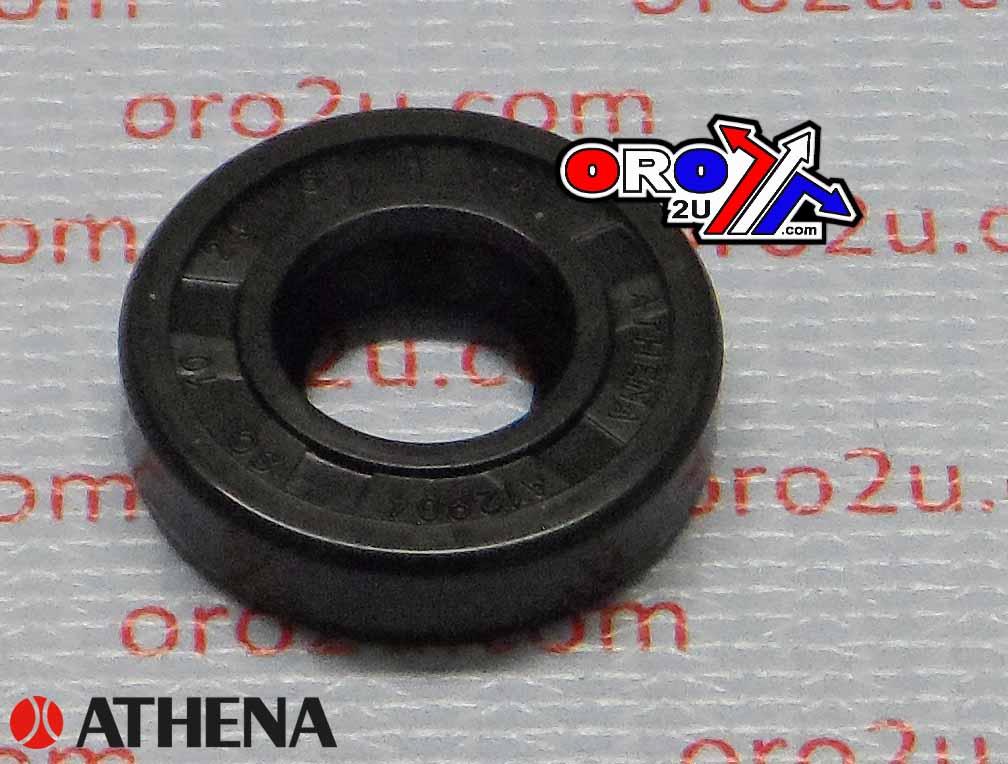

ATHENA Oil Seal with Rubber Exterior 10x24x6 mm in NBR with one Seal-lip and Spring - M730000225000

Description

Oil Seal with Rubber Exterior 10x24x6 mm in NBR with one Seal-lip and Spring. Athena supplies the widest range of replacement gaskets available on the market, strong in over 40 years of experience in this sector. Athena�s products are based on a solid know-how, continuous technological development, achieved by its in-house team of engineers and designers, and production that keeps strictly to parameters required by OEMs.

Technical features

• External Diameter (mm) 24.00
• Height 6.00
• Internal Diameter (mm) 10.00
• Net Weight (Kg) 0.01
• Type SC

Partner OEM code

• CAGIVA DUCATI MACCHI HUSQV. 00H03810211

Vehicle Compatibility

• Derbi Senda R DRD 50 2003 (Europe) (7077CH03002) - Water Pump - Seal - 1
• Derbi Senda R DRD 50 2003 (Europe) (7077CH03002) - Water Pump - Seal - 2
• Derbi Senda SM DRD 50 2003 (Europe) (7077CH03001) - Water Pump - Seal - 1
• Derbi Senda SM DRD 50 2003 (Europe) (7077CH03001) - Water Pump - Seal - 2
• Derbi GPR 50 R 1997 (Europe) (00H00016000) - Water Pump - Seal - 1
• Derbi GPR 50 R 1997 (Europe) (00H00016000) - Water Pump - Seal - 2
• Derbi GPR 50 R 1998 (Europe) (00H00016000) - Water Pump - Seal - 1
• Derbi GPR 50 R 1998 (Europe) (00H00016000) - Water Pump - Seal - 2
• Derbi GPR 50 R 1999 (Europe) (00H00016000) - Water Pump - Seal - 1
• Derbi GPR 50 R 1999 (Europe) (00H00016000) - Water Pump - Seal - 2
• Derbi GPR 50 R 2000 (Europe) (00H00016000) - Water Pump - Seal - 1
• Derbi GPR 50 R 2000 (Europe) (00H00016000) - Water Pump - Seal - 2
• Derbi GPR 50 Nude E2 2004 (Europe) (7077CH05013) - Water Pump - Seal - 1
• Derbi GPR 50 Nude E2 2004 (Europe) (7077CH05013) - Water Pump - Seal - 2
• Derbi GPR 50 Nude E2 2005 (Europe) (7077CH05013) - Water Pump - Seal - 1
• Derbi GPR 50 Nude E2 2005 (Europe) (7077CH05013) - Water Pump - Seal - 2
• Derbi GPR 50 R E2 2004 (Europe) (7077CH05012) - Water Pump - Seal - 1
• Derbi GPR 50 R E2 2004 (Europe) (7077CH05012) - Water Pump - Seal - 2
• Derbi GPR 50 R E2 2005 (Europe) (7077CH05012) - Water Pump - Seal - 1
• Derbi GPR 50 R E2 2005 (Europe) (7077CH05012) - Water Pump - Seal - 2
• Derbi GPR 50 R Replica 2003 (Europe) (7077CH03005) - Water Pump - Seal - 1
• Derbi GPR 50 R Replica 2003 (Europe) (7077CH03005) - Water Pump - Seal - 2
• Derbi GPR 50 Replica 2001 (Europe) (00H00016002) - Water Pump - Seal - 1
• Derbi GPR 50 Replica 2001 (Europe) (00H00016002) - Water Pump - Seal - 2
• Derbi Senda R DRD Racing 50 E2 2004 (Europe) (7077CH05009) - Water Pump - Seal - 1
• Derbi Senda R DRD Racing 50 E2 2004 (Europe) (7077CH05009) - Water Pump - Seal - 2
• Derbi Senda R DRD Racing 50 E2 2005 (Europe) (7077CH05009) - Water Pump - Seal - 1
• Derbi Senda R DRD Racing 50 E2 2005 (Europe) (7077CH05009) - Water Pump - Seal - 2
• Derbi Senda SM DRD Racing 50 E2 2004 (Europe) (7077CH05010) - Water Pump - Seal - 1
• Derbi Senda SM DRD Racing 50 E2 2004 (Europe) (7077CH05010) - Water Pump - Seal - 2
• Derbi Senda SM DRD Racing 50 E2 2005 (Europe) (7077CH05010) - Water Pump - Seal - 1
• Derbi Senda SM DRD Racing 50 E2 2005 (Europe) (7077CH05010) - Water Pump - Seal - 2
• Derbi Senda R X-Race 50 E2 2005 (Europe) (7077CH05005) - Water Pump - Seal - 1
• Derbi Senda R X-Race 50 E2 2005 (Europe) (7077CH05005) - Water Pump - Seal - 2
• Derbi Senda R X-treme 50 2003 (Europe) (7077CH03004) - Water Pump - Seal - 1
• Derbi Senda R X-treme 50 2003 (Europe) (7077CH03004) - Water Pump - Seal - 2
• Derbi Senda R X-treme 50 E2 2004 (Europe) (7077CH04004) - Water Pump - Seal - 1
• Derbi Senda R X-treme 50 E2 2004 (Europe) (7077CH04004) - Water Pump - Seal - 2
• Derbi Senda R X-treme 50 E2 2005 (Europe) (7077CH05003) - Water Pump - Seal - 1
• Derbi Senda R X-treme 50 E2 2005 (Europe) (7077CH05003) - Water Pump - Seal - 2
• Derbi Senda SM X-treme 50 2003 (Europe) (7077CH03003) - Water Pump - Seal - 1
• Derbi Senda SM X-treme 50 2003 (Europe) (7077CH03003) - Water Pump - Seal - 2
• Derbi Senda SM X-treme 50 E2 2004 (Europe) (7077CH04003) - Water Pump - Seal - 1
• Derbi Senda SM X-treme 50 E2 2004 (Europe) (7077CH04003) - Water Pump - Seal - 2
• Derbi Senda SM X-treme 50 E2 2005 (Europe) (7077CH05004) - Water Pump - Seal - 1
• Derbi Senda SM X-treme 50 E2 2005 (Europe) (7077CH05004) - Water Pump - Seal - 2
• Derbi Senda R (50cc) 1999 (Europe) (00G00027003) - Water Pump - Seal - 1
• Derbi Senda R (50cc) 1999 (Europe) (00G00027003) - Water Pump - Seal - 2
• Derbi Senda R (50cc) 2000 (Europe) (00G00027003) - Water Pump - Seal - 1
• Derbi Senda R (50cc) 2000 (Europe) (00G00027003) - Water Pump - Seal - 2
• Derbi Senda R (50cc) 2001 (Europe) (00G00027003) - Water Pump - Seal - 1
• Derbi Senda R (50cc) 2001 (Europe) (00G00027003) - Water Pump - Seal - 2
• Derbi Senda R (50cc) 2002 (Europe) (7077CH02001) - Water Pump - Seal - 1
• Derbi Senda R (50cc) 2002 (Europe) (7077CH02001) - Water Pump - Seal - 2
• Gilera GSM 50 2000 (Europe) (341) - Water Pump - Seal - 1
• Gilera GSM 50 2000 (Europe) (341) - Water Pump - Seal - 2
• Gilera GSM 50 2001 (Europe) (177) - Water Pump - Seal - 1
• Gilera GSM 50 2001 (Europe) (177) - Water Pump - Seal - 2
• Gilera GSM 50 2002 (Europe) (177) - Water Pump - Seal - 1
• Gilera GSM 50 2002 (Europe) (177) - Water Pump - Seal - 2
• Gilera GSM 50 2003 (Europe) (177) - Water Pump - Seal - 1
• Gilera GSM 50 2003 (Europe) (177) - Water Pump - Seal - 2
• Gilera H@K 50 2000 (Europe) (342) - Water Pump - Seal - 1
• Gilera H@K 50 2000 (Europe) (342) - Water Pump - Seal - 2
• Gilera H@K 50 2001 (Europe) (178) - Water Pump - Seal - 1
• Gilera H@K 50 2001 (Europe) (178) - Water Pump - Seal - 2
• Gilera H@K 50 2002 (Europe) (178) - Water Pump - Seal - 1
• Gilera H@K 50 2002 (Europe) (178) - Water Pump - Seal - 2
• Gilera RCR 50 2003 (Europe) (511) - Water Pump - Seal - 1
• Gilera RCR 50 2003 (Europe) (511) - Water Pump - Seal - 2
• Gilera RCR 50 2004 (Europe) (511) - Water Pump - Seal - 1
• Gilera RCR 50 2004 (Europe) (511) - Water Pump - Seal - 2
• Gilera RCR 50 2005 (Europe) (511) - Water Pump - Seal - 1
• Gilera RCR 50 2005 (Europe) (511) - Water Pump - Seal - 2
• Gilera SMT 50 2003 (Europe) (512) - Water Pump - Seal - 1
• Gilera SMT 50 2003 (Europe) (512) - Water Pump - Seal - 2
• Gilera SMT 50 2004 (Europe) (512) - Water Pump - Seal - 1
• Gilera SMT 50 2004 (Europe) (512) - Water Pump - Seal - 2
• Gilera SMT 50 2005 (Europe) (512) - Water Pump - Seal - 1
• Gilera SMT 50 2005 (Europe) (512) - Water Pump - Seal - 2
• Gilera Zulu 50 2001 (Europe) (197) - Water Pump - Seal - 1
• Gilera Zulu 50 2001 (Europe) (197) - Water Pump - Seal - 2
• Gilera Zulu 50 2002 (Europe) (197) - Water Pump - Seal - 1
• Gilera Zulu 50 2002 (Europe) (197) - Water Pump - Seal - 2
• KTM 400 EXC 2009 (Europe) - Water Pump - Seal - 1
• KTM 400 EXC 2010 (Europe) - Water Pump - Seal - 1
• KTM 400 EXC 2011 (Europe) - Water Pump - Seal - 1
• KTM 450 EXC 2009 (Europe) - Water Pump - Seal - 1
• KTM 450 EXC 2010 (Europe) - Water Pump - Seal - 1
• KTM 450 EXC 2011 (Europe) - Water Pump - Seal - 1
• KTM 450 EXC Six Days 2009 (Europe) - Water Pump - Seal - 1
• KTM 450 EXC Six Days 2010 (Europe) - Water Pump - Seal - 1
• KTM 450 EXC Six Days 2011 (Europe) - Water Pump - Seal - 1
• KTM 450 EXC-R (4T) 2008 (Europe) - Water Pump - Seal - 1
• KTM 530 EXC (4T) 2009 (Europe) - Water Pump - Seal - 1
• KTM 530 EXC (4T) 2010 (Europe) - Water Pump - Seal - 1
• KTM 530 EXC (4T) 2011 (Europe) - Water Pump - Seal - 1
• KTM 530 EXC-R (4T) 2008 (Europe) - Water Pump - Seal - 1

Part No. 58-8104.ATH (oro2u.com)

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
