WOSSNER 3.816" PISTON KIT HARLEY DAVIDSON 1200 BIG BORE 2004-2007

Piston kit 3.816" � Bore � Wossner K8620DA-2 (STD)

HARLEY DAVIDSON
1200 BIG BORE 3 13/16 (88 cu. in.) Stroke 3.812 2004-07,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9956.000.WO
HARLEY DAVIDSON 1200 BIG BORE 3 13/16 (88 cu. in.) Stroke 3.812 2004-07,

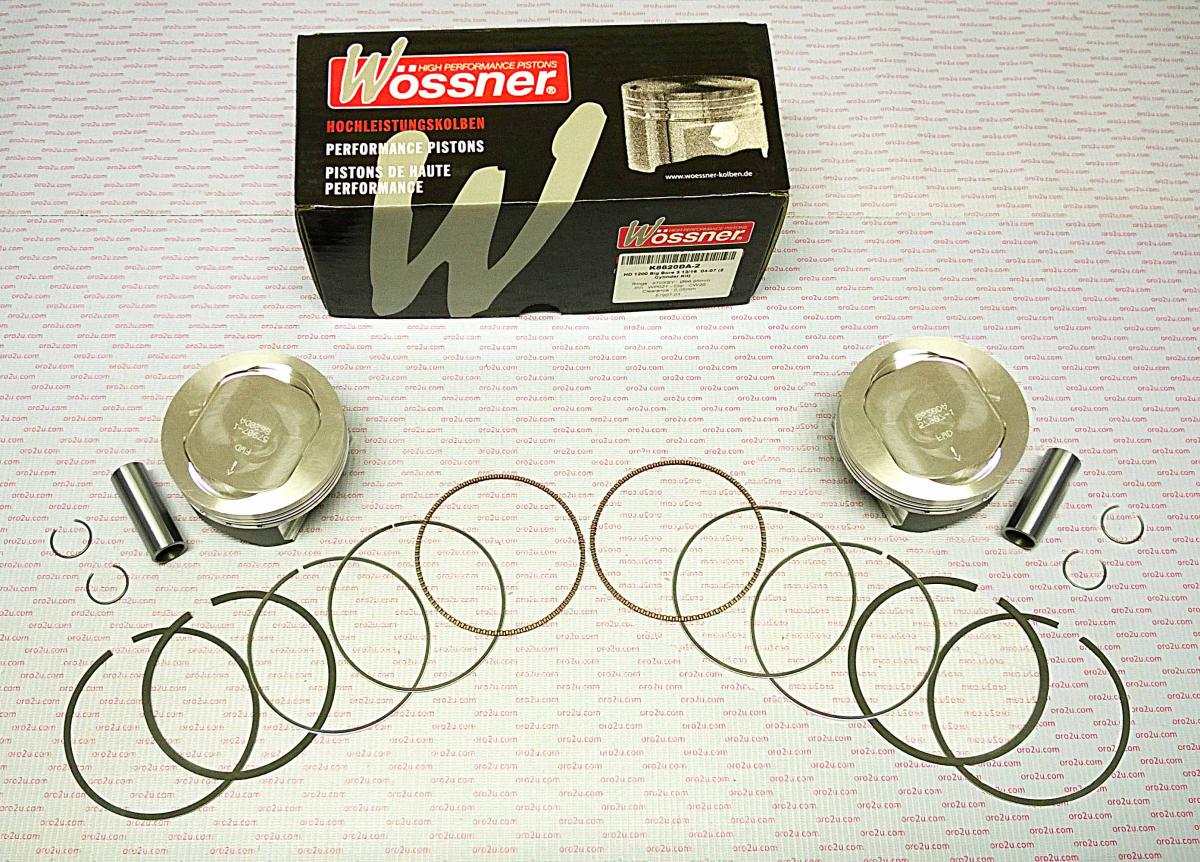

WOSSNER K8620DA-2 PISTONS FORGED KIT 2pcs. Bore 3.816" SIZE STANDARD
Compression ratio: 10.5:1 Reverse Dome

�

Includes: Forged high performance pistons (skirt coated) rings, clips, pins Cases must be bored to accept big bore cylinders. Must use aftermarket Big Bore cylinders.
Cross reference numbers ONLY.

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
