WISECO 96mm FORGED PISTON KIT B, HONDA CRF450R 2017-2025, CRF450RX 2019-2025

Part No. 56-W9949.B.WI

HONDA CRF450R 2017-2025
HONDA CRF450RX 2017-2025
ArmorGlide WISECO 40177M09600 STD BORE 96.00mm (95.95mm)
Wiseco Piston Kit 96mm Std. Bore 13.5:1 Compression.

Dedicated forging - Light weight and superior strength - High Compression - Maximum torque and throttle response - Super finished piston pin - Reduced friction/scuff resistant - Horizontal slot pin oiling - Improved lubrication and better pin oiling, reduced friction - Pressure seal groove - Maximum ring seal - ArmorGlide skirt coating - Reduced friction - Dedicated rings - Maximum compression and oil control.

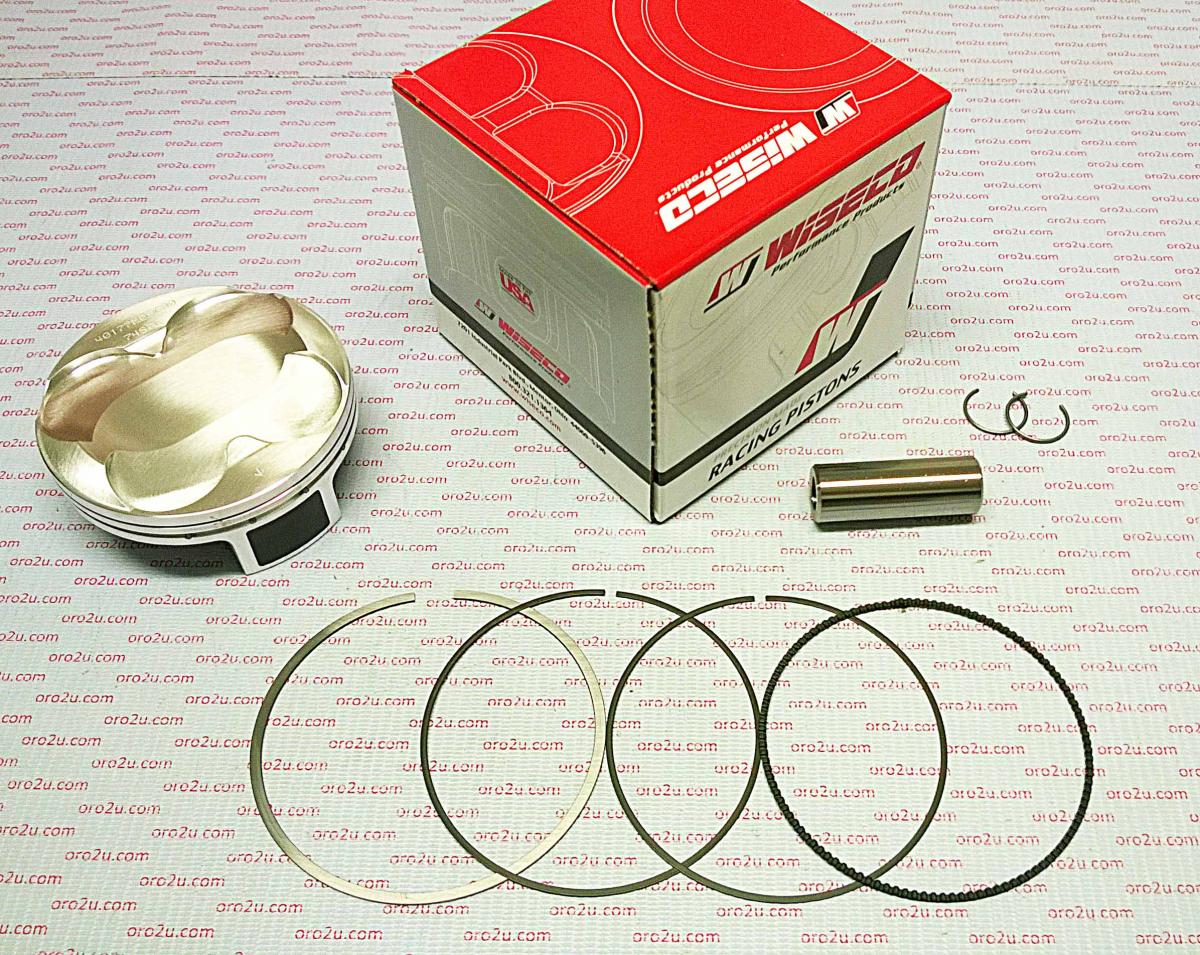

Piston includes piston, rings, pin, and circlips.
Cross reference numbers ONLY. W40177M09600, [13101-MKE-A00 + 13011-MKE-A00 + 13111-MKE-A01 + 13112-MKE-A00]
REPLACEMENT PARTS. RINGS 9600ZV, PIN 748-2050-16-93C, CLIPS CW19

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
