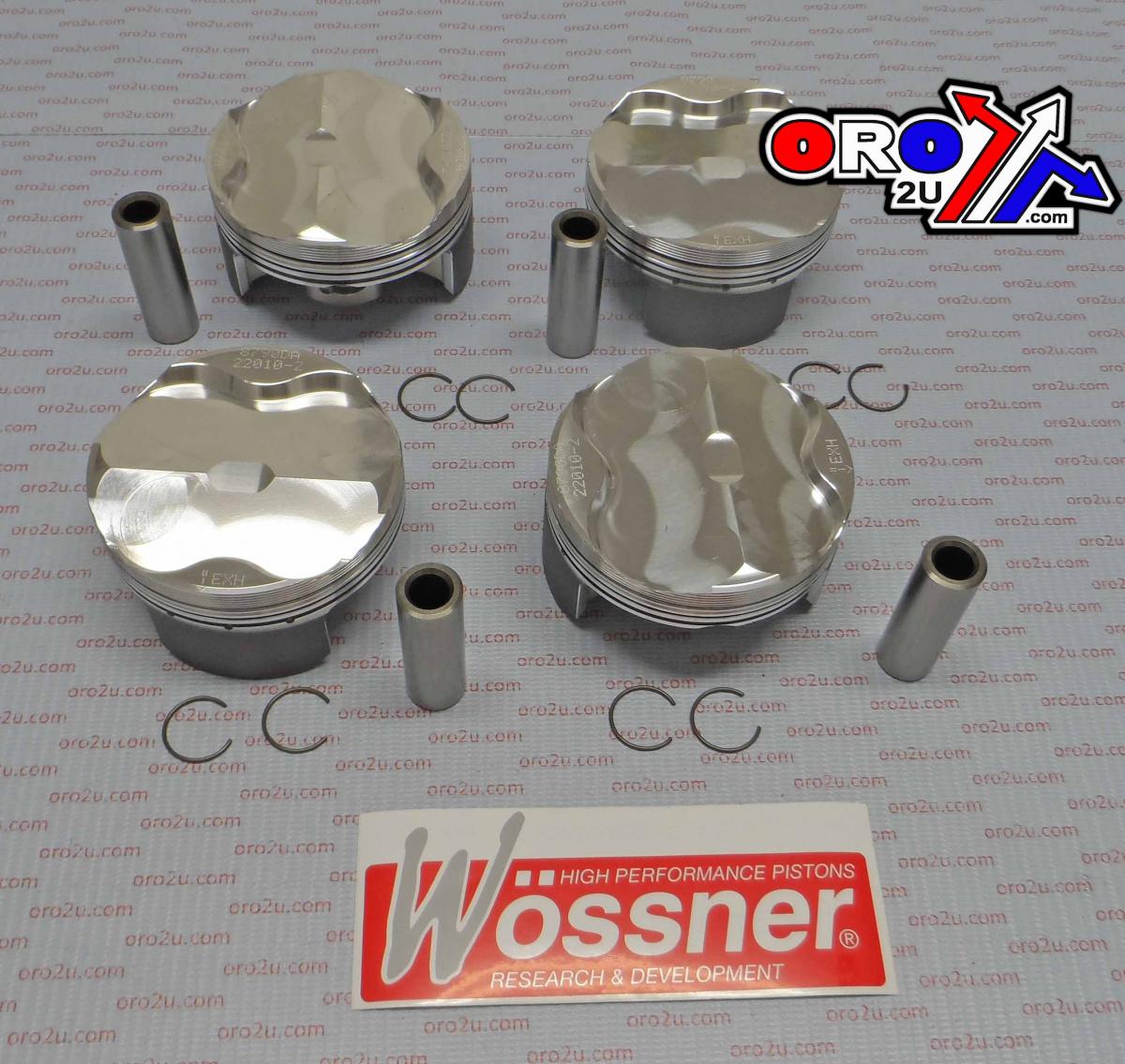

WOSSNER 74.5mm PISTON KIT SUZUKI GSX-R1000 2009-2016

Piston kit 74.50mm Bore 74.46 Wossner K8790DA-4 (STD)

SUZUKI
GSXR1000 2009 - 2016,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9933.000.WO
SUZUKI GSXR1000 K9-K10,
WOSSNER K8790DA-4 PISTON KIT SET/4.
SIZE BORE [74.46] 74.50mm STD.
Clips P/N CW15
Pin P/N WP011
Ring Set P/N OEM

Display (cm3) 999 / 1052
Hub stroke (mm) 57.30
Clearance (mm) 0.04
Wossner compression Ratio: 14.00:1
OEM Compression ratio: 12.80:1
Dome volume (cm3) -4.40
Compression height (mm) 22.35
Theorectical weight (G)

�

Wossner high performance forged pistons, are world leaders

in piston research and development. As used by many race teams Wossner forged pistons are designed to operate at the highest levels of motorsport and competition. You can have confidence in your engine when you are running Wossner pistons. Wossner piston kits come,pins and circlips ready for fitting.
Must use OEM Rings

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
