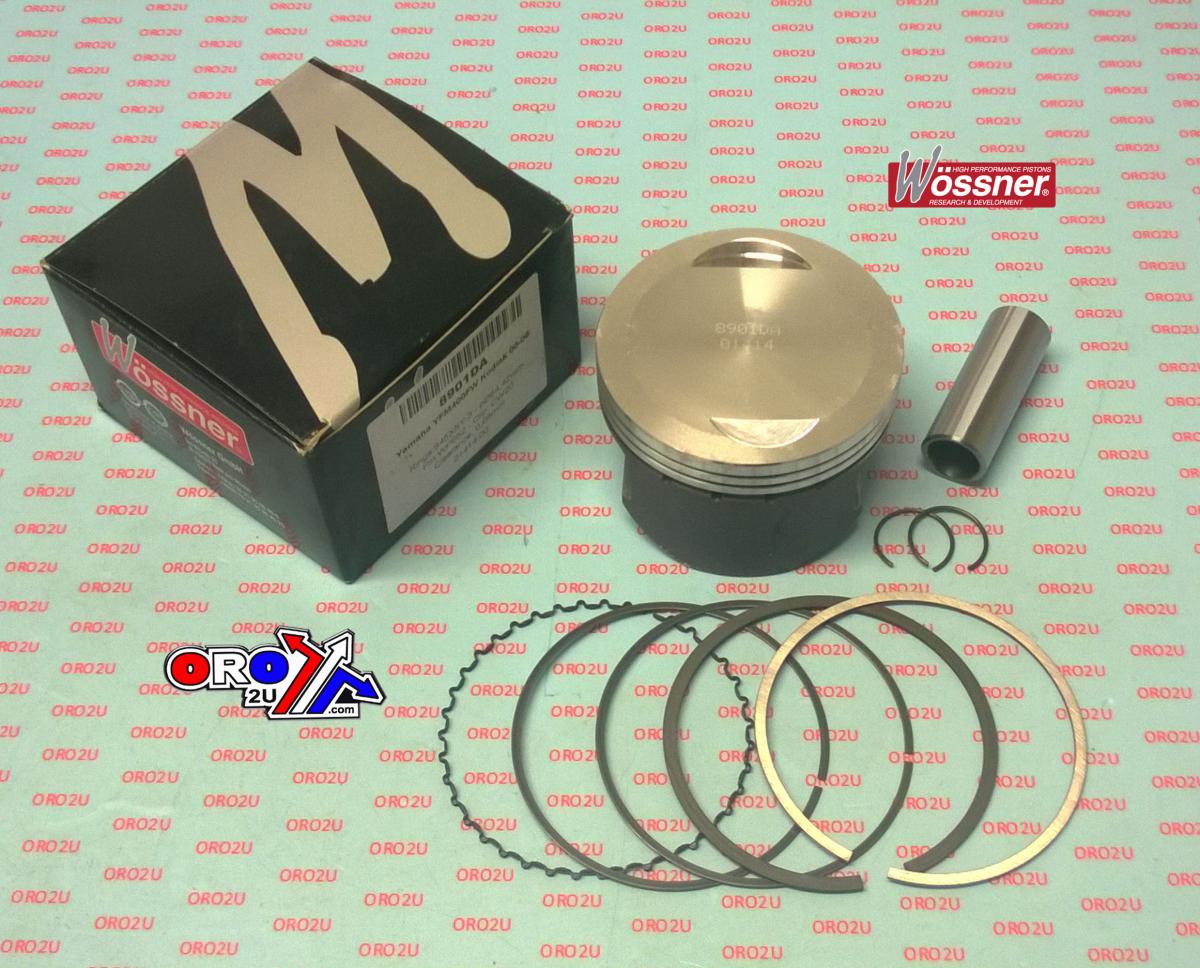

WOSSNER 92mm FORGED PISTON KIT YAMAHA YFM400 GRIZZLY 07-08, KODIAK 00-06

Piston kit 92mm Bore 84.42 Wossner 8901DA (STD)

YAMAHA
YFM400FW KODIAK 2000 - 2006,
YFM4 GRIZZLY 400 2007 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9924.00A.WO
YAMAHA YFM 400FW KODIAK 2000-2006, YAMAHA YFM 400 GRIZZLY 2007-2008,
WOSSNER 8901DA 84.82mm PISTON KIT

Clips P/N CW20
Pin P/N WP052
Ring Set P/N 845XSY

Display (cm3) 400
Hub stroke (mm) 70.50
Clearance (mm) 0.08
Wossner compression Ratio: 8.50:1
OEM Compression ratio: 10.50:1
Dome volume (cm3) -2.90
Compression height (mm) 26.90
Theorectical weight (G)

Cross reference numbers ONLY.
5GH-11631-00-00, 40076M08450,

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
