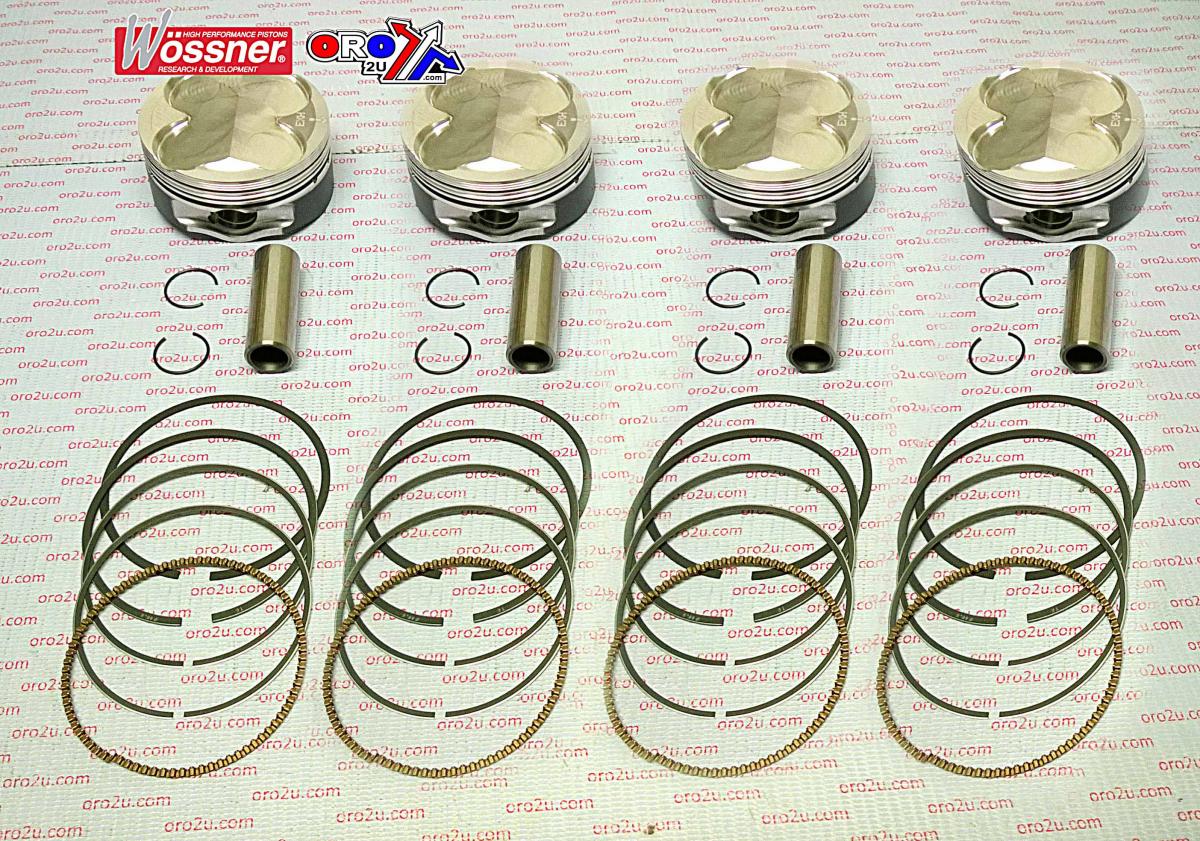

WOSSNER 65.5mm PISTON KIT YAMAHA YZF-R6 2001-2005

Piston kit 65.50mm Bore 65.44 Wossner SET/4 �K8831DA-4 (STD)

YAMAHA
YZF R6 2001 - 2005,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9904.000.WO
YAMAHA YZF R6 2001-2006,
PISTON KIT SET/4 WOSSNER K8831DA-4 STD BORE 65.50mm.
DISPLACEMENT 600cc
COMP.HEIGHT 21.20mm

Cross reference numbers ONLY.
CLIP No. CW16,
PISTON PIN No. WP036,
REPLACEMENT RING SET No. 655XKS

Display (cm3) 600 / 617 / 636
Hub stroke (mm) 44.50
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 12.40:1
Dome volume (cm3) -0.10
Compression height (mm) 21.20
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
