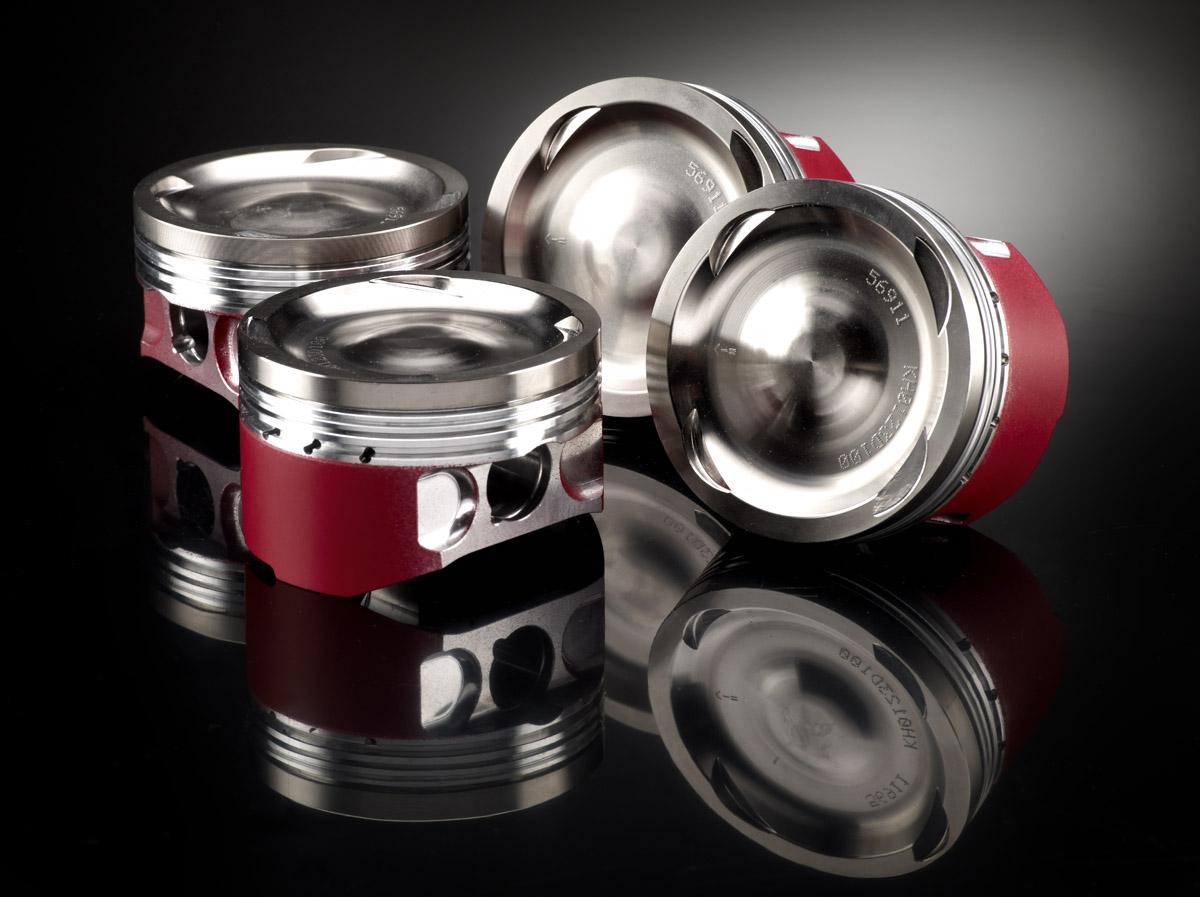

WOSSNER 84mm PISTON KIT SUZUKI GSX1300R HAYABUSA 1999-2007, (X4) Pro Series

�

Piston kit 84.00mm Bore 83.95 Wossner SET/4 K4017D300-4 (+3MM)

SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)
(Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

�

Part No: 56-W9897.300.NC.WO

SUZUKI HAYABUSA HC / 3-Ring 1999-2007,

PISTON KIT SET/4 WOSSNER K4017D300-4 STD BORE 84.00mm.

COMP.HEIGHT 25.25mm

Oversize: +3.00MM

Hub stroke (mm) 63.00

Clearance (mm) 0.05

Wossner compression Ratio: 12.00:1

Compression height (mm) 25.25

Theorectical weight (G) 253

Cross reference numbers ONLY.

CLIP No. CW20,

PISTON PIN No. WP029-SP

REPLACEMENT RING SET No. RIK84.00B

�

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
