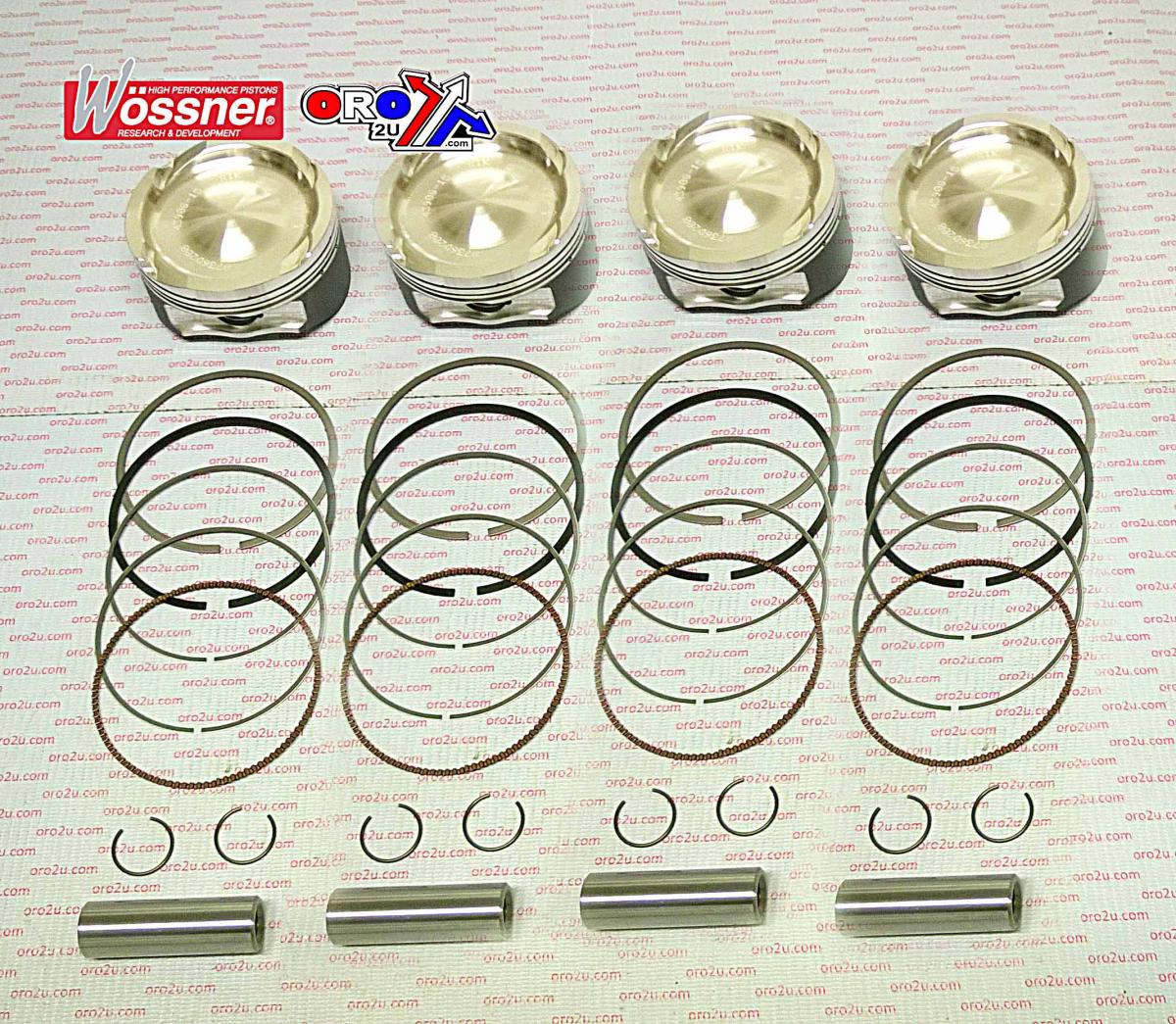

WOSSNER 81mm PISTON KIT SUZUKI GSX1300R HAYABUSA TURBO 2008-2020 (X4)

Piston kit 81.00mm Bore 80.92 Wossner SET/4 K8736DA-4 (STD)

SUZUKI
HAYABUSA Turbo 2008-ON,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9896.000.WO
SUZUKI HAYABUSA TURBO 2008-ON,
PISTON KIT SET/4 WOSSNER K8736DA-4 STD BORE 81.00mm.
DISPLACEMENT 1340cc

Display (cm3) 1340 / 1406
Hub stroke (mm) 65.00
Clearance (mm) 0.08
Wossner compression Ratio: 9.00:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -19.40
Compression height (mm) 24.00
Theorectical weight (G)

Cross reference numbers ONLY.
CLIP No. CW18,
PISTON PIN No. WP064
REPLACEMENT RING SET No. RIK81.00A

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
