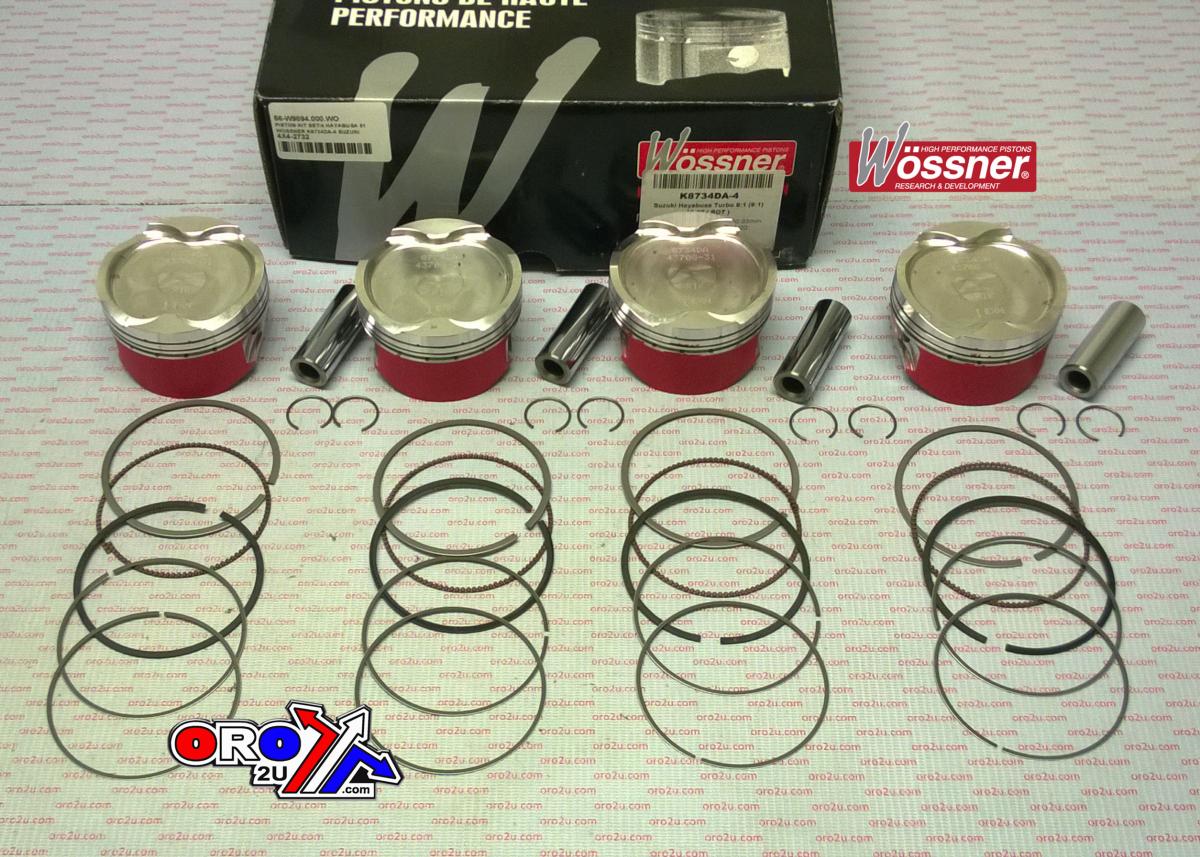

WOSSNER 81mm PISTON KIT SUZUKI GSX1300R HAYABUSA 1999-2007 (X4)

Piston kit 81.00mm Bore 80.93 Wossner SET/4 K8734DA-4 (STD)

SUZUKI
HAYABUSA TURBO GSX R 1300 1999-2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9894.000.WO
CLIP No. CW20,
PIN No.WP065
RINGS No. RIK81.00A

Display (cm3) 1299 / 1362
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 9.00:1 �
OEM Compression ratio: 11.00:1
Dome volume (cm3) -17.80
Compression height (mm) 26.80
Theorectical weight (G)

DISPLACEMENT 1300cc

COMP.RATIO COMP.HEIGHT 26.80mm

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
