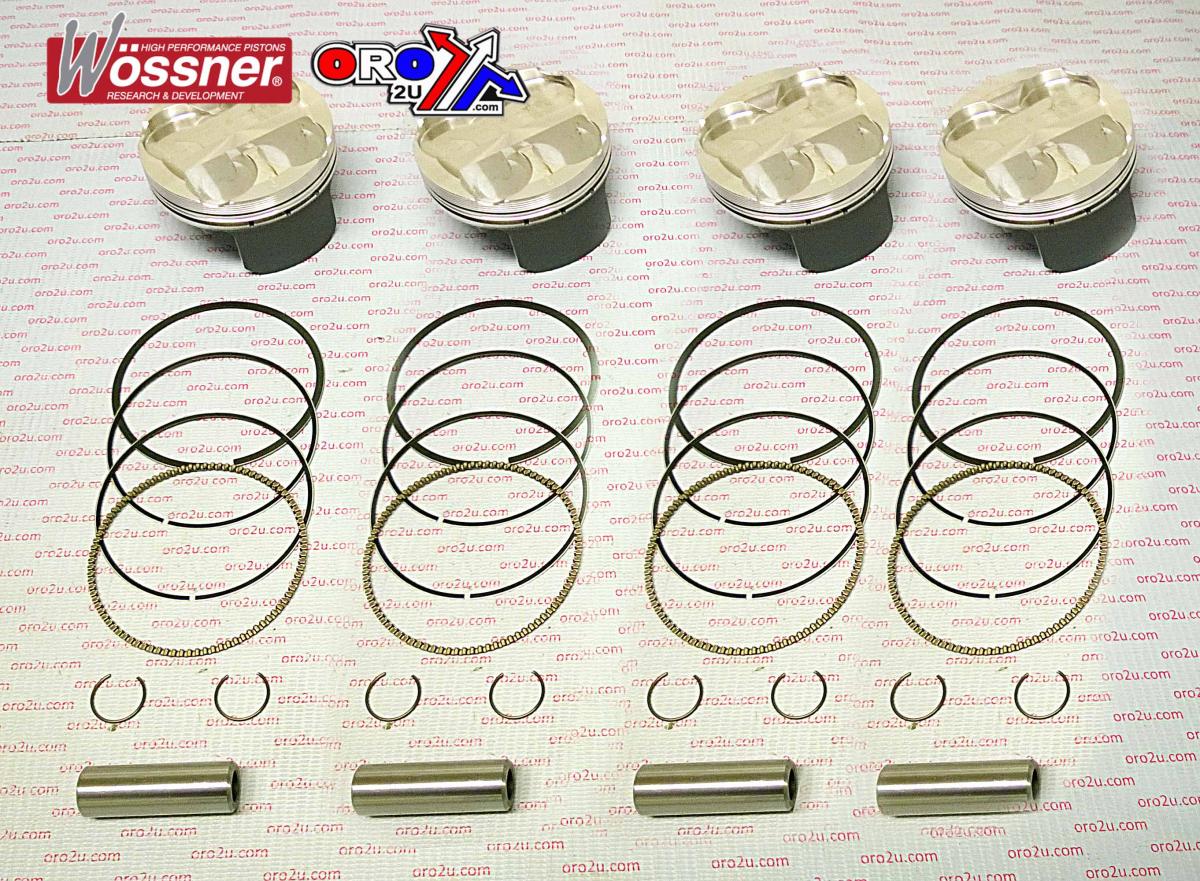

WOSSNER 73.4mm PISTON KIT SUZUKI GSX-R1000 2005-2008

Piston kit 73.40mm Bore 73.36 Wossner SET/3 �K8700DA-4 (STD)

SUZUKI �
GSXR1000 2005-2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9893.000.WO
SUZUKI GSXR1000 2005-2008,
PISTON KIT SET/4 WOSSNER K8700DA-4 O/S STD BORE 73.40MM.

CLIP No. CW15,
PIN No. WP011,
RINGS No. RIK73.40L

Display (cm3) 988 / 1024 / 1070
Hub stroke (mm) 59.00
Clearance (mm) 0.04
Wossner compression Ratio: Display (cm3) 998 - 14.00:1 / 1024 - 14.60:1 / 1070 - 14.90:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -4.40
Compression height (mm) 22.55
Theorectical weight (G)

DISPLACEMENT 998cc

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
