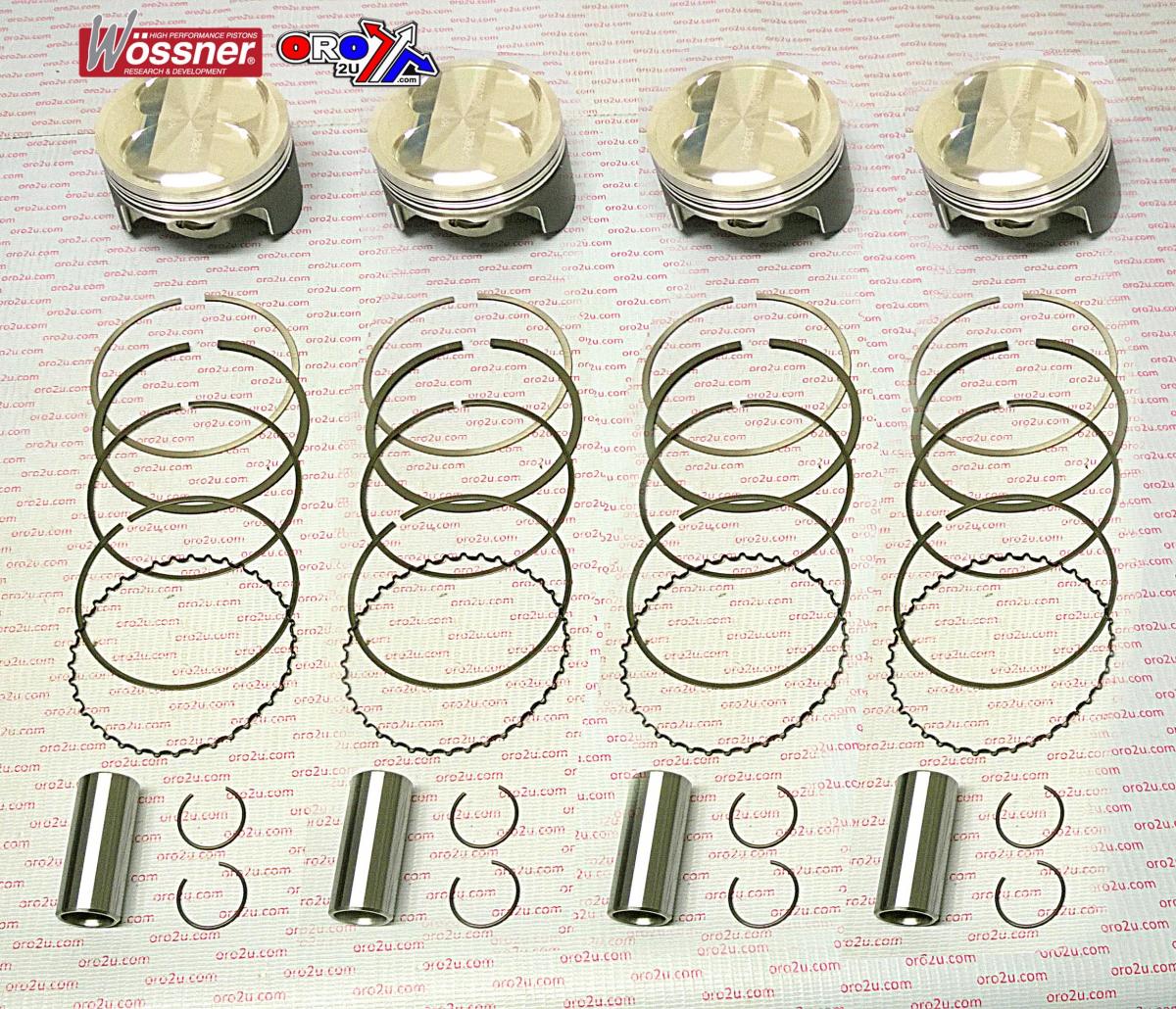

WOSSNER 85mm PISTON KIT SUZUKI GSX-R1100 89-92, GSX1100F 89-92, GSF1200 99-02

Piston kit 85mm Bore 84.94 Wossner SET/4 K8530D700-4 (+7mm)

SUZUKI
GSXR1100 1989-1992,
GSF1200 BANDIT 1989-1992,
GSX1100F KATANA 1989-1992,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9890.700.WO
SUZUKI GSXR1100 1989-1992, SUZUKI GSF1200 BANDIT 1989-1992, SUZUKI GSX1100F KATANA 1989-1992,
PISTON KIT SET/4 WOSSNER K8530D700-4 O/S 7.00mm 85.00mm.

CLIP No. CW20,
PIN No. WP029,
RINGS No. 850XSY

COMP.RATIO 12.5:1 COMP.HEIGHT 25.30mm

Display (cm3) 1165/1194/1224/1254/1315
Hub stroke (mm) 58.00
Clearance (mm) 0.06
Wossner compression Ratio: 12.5:1
OEM Compression ratio: 10.0:1
Dome volume (cm3) +3.80
Compression height (mm) 25.30
Theorectical weight (G)
