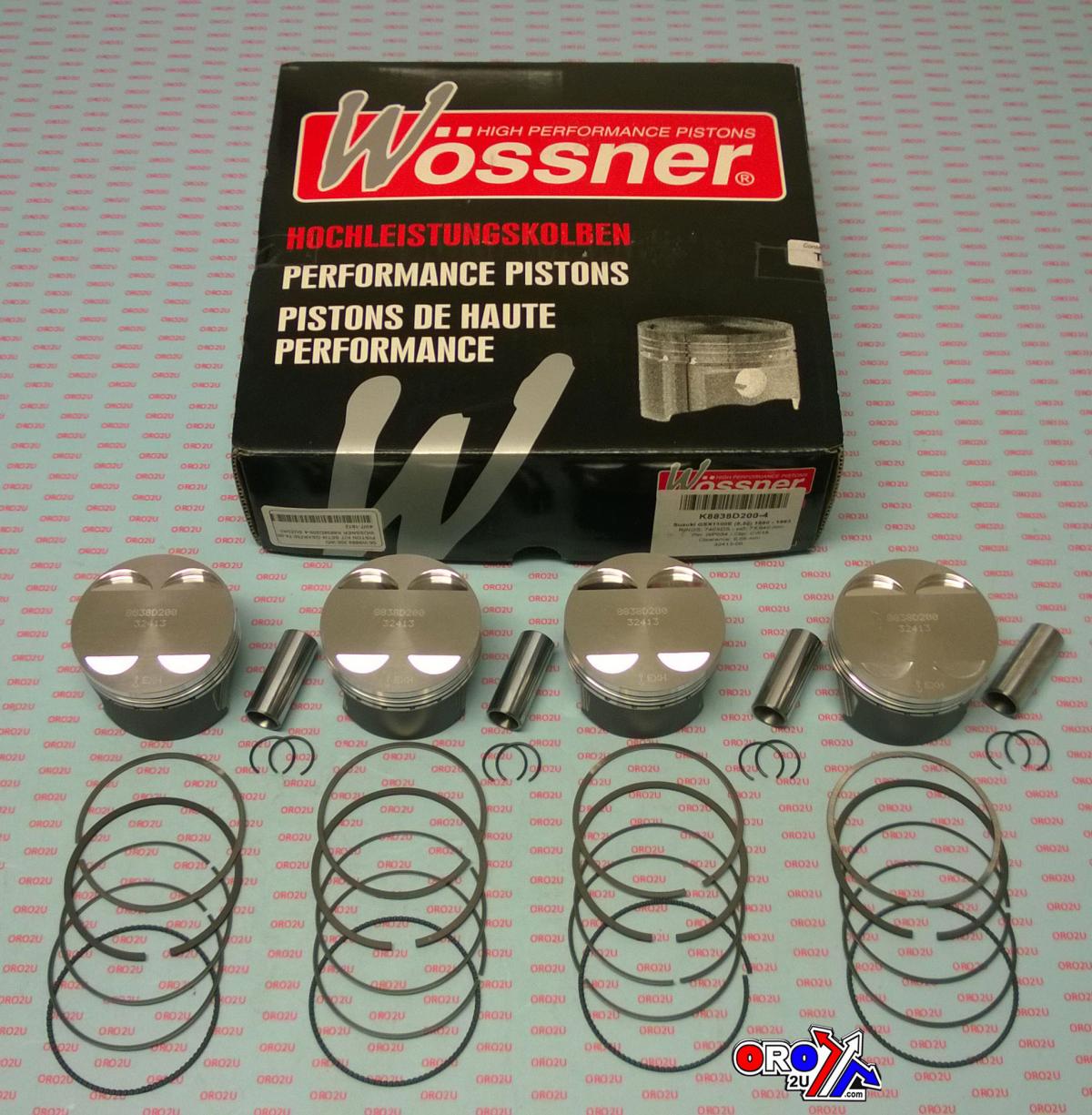

WOSSNER 74mm PISTON KIT SUZUKI GSX1100E 1980-1983

Piston kit 74mm Bore 73.94 Wossner SET/4 K8838D200-4 (+2mm)

SUZUKI
GSX1100E 1980 - 1983,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9889.200.WO
SUZUKI GSX1100E 1980 - 1983
PISTON KIT SET/4 WOSSNER K8838D200-4 O/S 2.00mm 74.00mm.

CLIP No. CW18,
PIN No. WP054,
RINGS No. 740XDS

Display (cm3) 1134
Hub stroke (mm) 44.7
Clearance (mm) 0.06
Wossner compression Ratio: 11.70:1
OEM Compression ratio: 10.90:1
Dome volume (cm3) +5.70
Compression height (mm) 23.80
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
