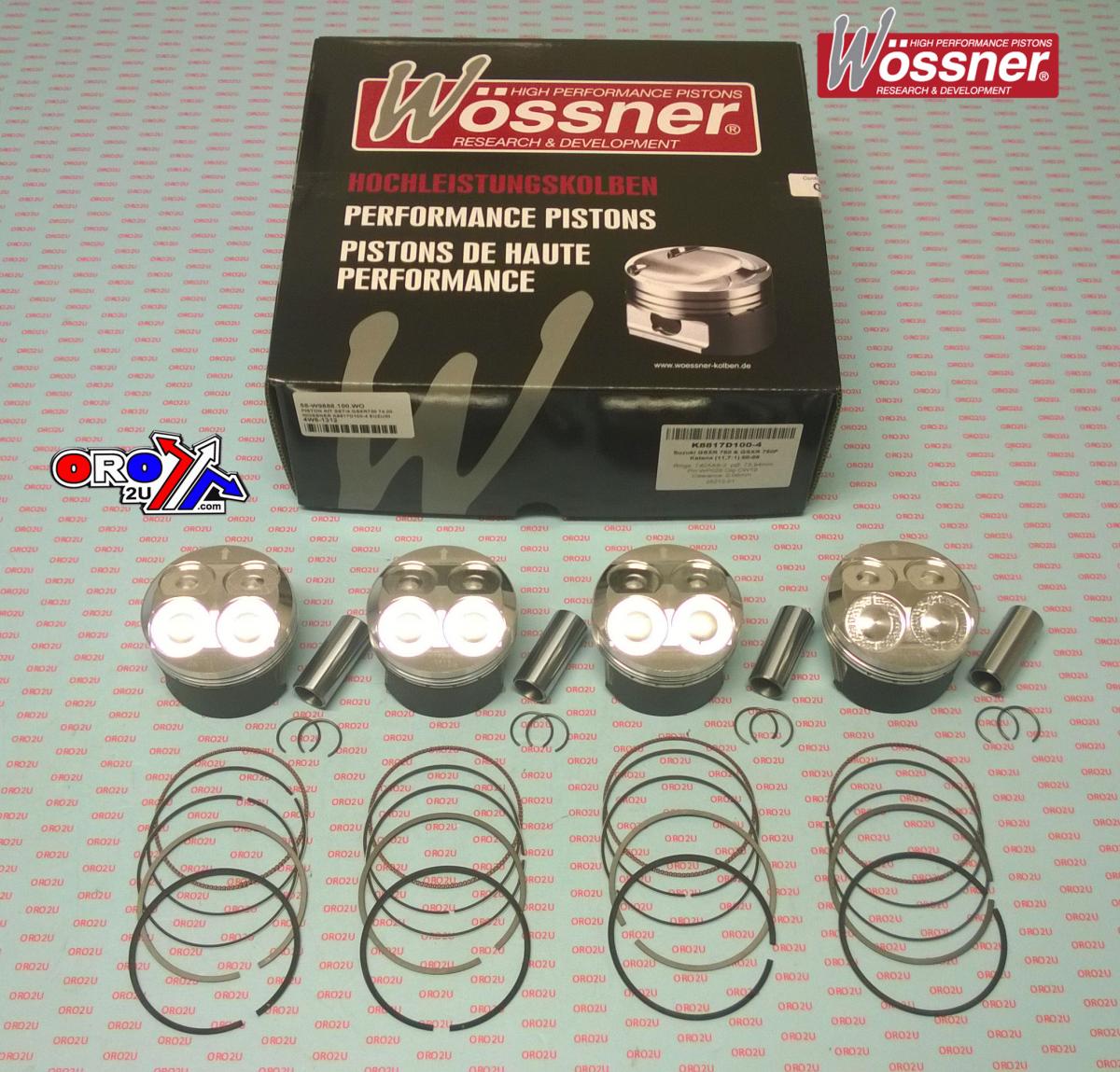

WOSSNER 74mm PISTON KIT SUZUKI GSXR750 88-89, GSX-F750 89-97 (X4)

Piston kit 74mm Bore 73.94 Wossner SET/3 K8817D100-4 (STD)

SUZUKI
GSXR750 1988 - 1989,
GSXR750F Katona 1989 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9888.100.WO
SUZUKI GSXR750 1988-1989, SUZUKI GSXR750F 1989-1997,
PISTON KIT SET/4 WOSSNER K8817D100-4 O/S 1.00mm 74.00mm.

CLIP No. CW19,
PIN No. WP028,
RINGS No. 740XAS

Display (cm3) 771
Hub stroke (mm) 44.7
Clearance (mm) 0.06
Wossner compression Ratio: 11.70:1
OEM Compression ratio: 10.90:1
Dome volume (cm3) +5.70
Compression height (mm) 23.80
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
