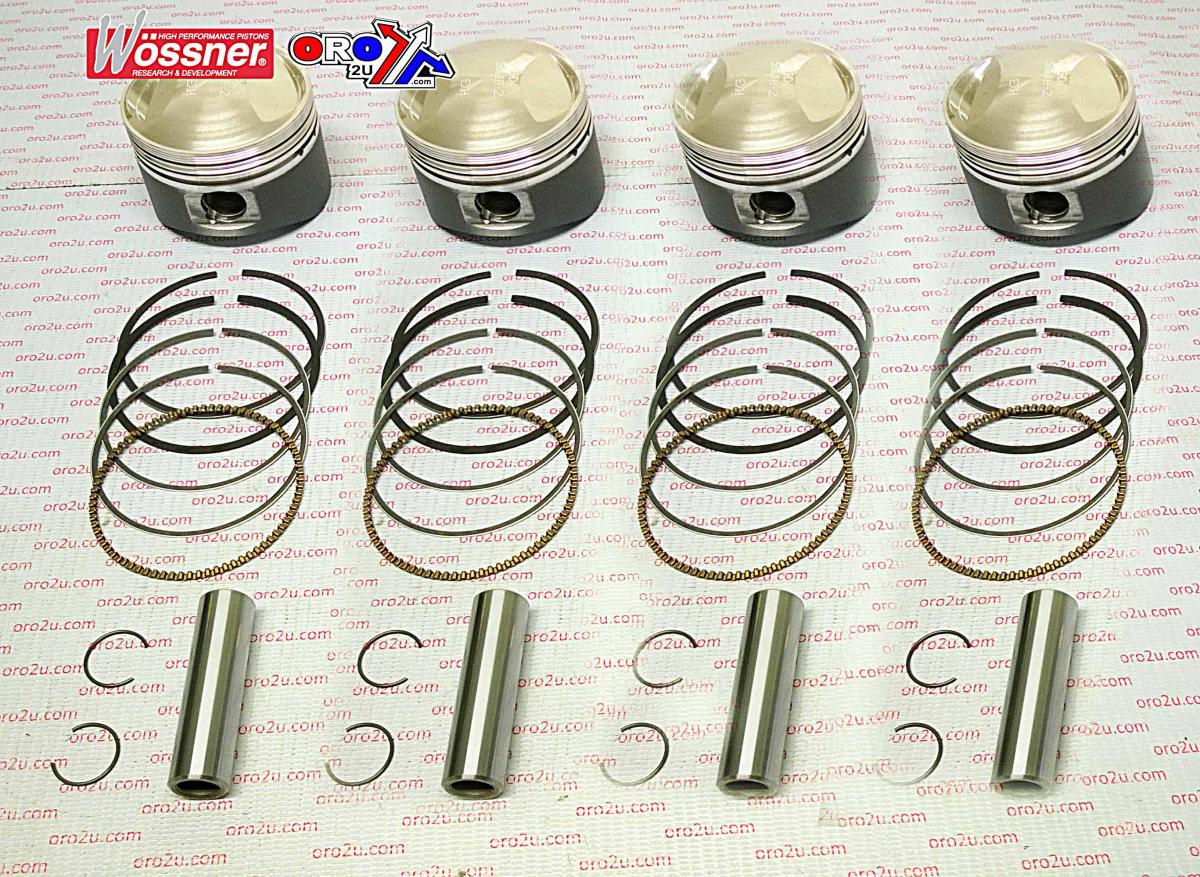

WOSSNER 65mm PISTON KIT HONDA CB750F/K (2 VALVE) 1969-1978

Piston kit 65mm Bore 64.94 Wossner �K8799D400-4 (+4MM)

HONDA
CB750 F / K [2 Valve] 1969-1978,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9881.400.WO

Clip part no - CW15
Piston pin- WP102
Ring set -650XKS

Display (cm3) 836
Hub stroke (mm) 63.00
Clearance (mm) 0.06
Wossner compression Ratio: 10.30:1
OEM Compression ratio: 9.20:1
Dome volume (cm3) -5.30
Compression height (mm) 23.50
Theorectical weight (G)

�

PISTON KIT SET/4 WOSSNER K8799D400-4 4.00 O/S 65.00mm.
Comp. Ratio 9.2:1 with Dome +5.3 cm3, Comp.Height 23.50mm
Wossner is the innovative specialist for high performance

pistons and cylinder blocks. Wossner products are to be found in engines operating at the highest levels of motor sport competition and in everyday use.Wossner products are the source of the superior power behind the success of well known motor sport teams at national and international race meets.

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
