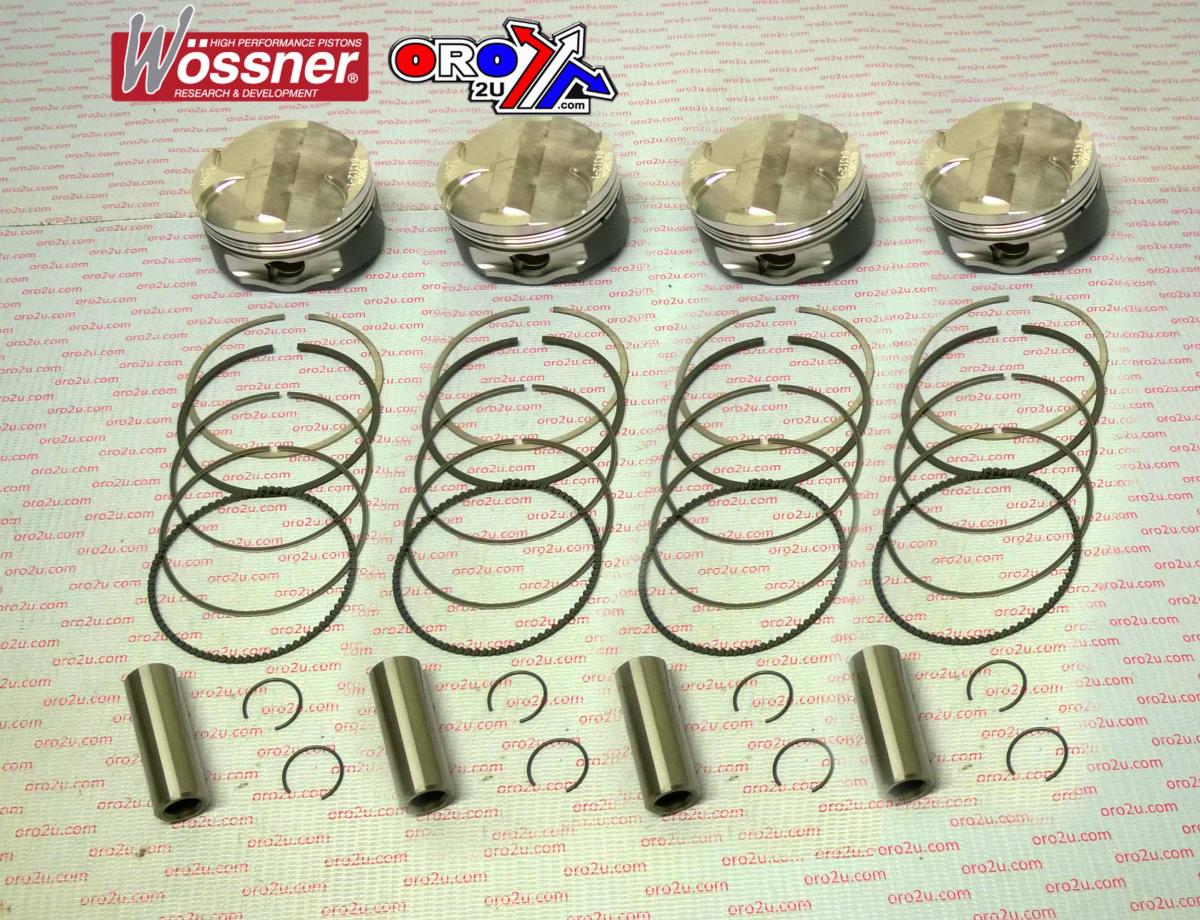

WOSSNER 67mm PISTON KIT YAMAHA YZF-R6 2006-2011

Piston kit 67mm Bore 66.94 Wossner K8830DA-4 (STD)

YAMAHA
YZF R6 2006-2011,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9874.000.WO
YAMAHA YZF R6 2006-2011 4 Stroke, Comp. 13:1
WOSSNER FORGED PISTON K8830DA-4 Bore 67.00 (mm)
Clip part no - CW15
Piston pin- WP011
Ring set -670XKS

Display (cm3) 599 / 617 / 635
Hub stroke (mm) 42.50
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 13.00:1
Dome volume (cm3) � -2.00
Compression height (mm) 21.20
Theorectical weight (G)

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
