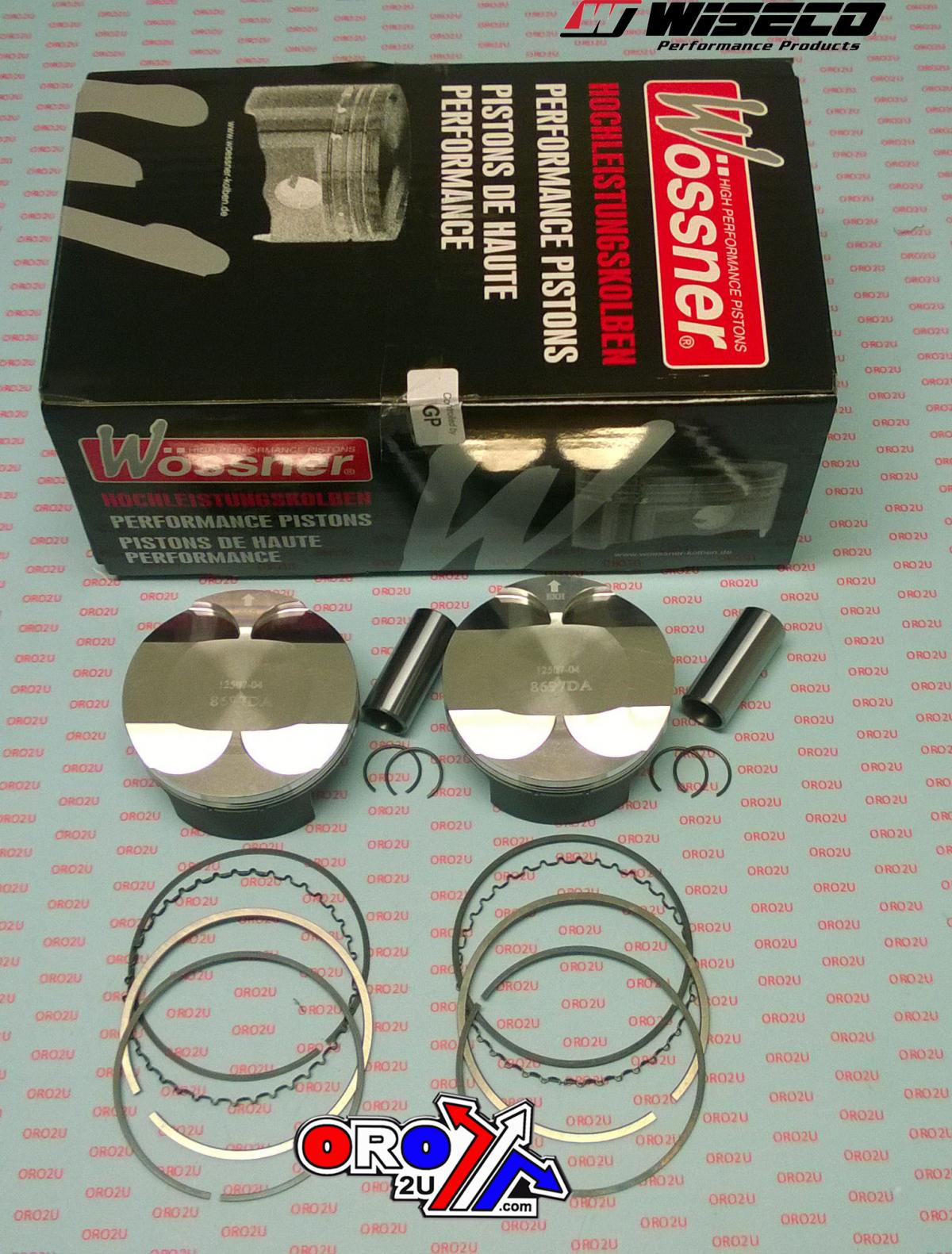

WOSSNER 83mm PISTON KIT KAWASAKI EX650 NINJA 2006-2008 (X2)

Piston kit 83mm Bore 82.95 Wossner K8697DA-2 (STD)

KAWASAKI
EX650 NINJA 2006 - 2011, (2 rings)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9873.83.000.WO
Clip part no - CW19
Piston pin- WP028
Ring set -830XSY

Display (cm3) 649
Hub stroke (mm) 60.00
Clearance (mm) 0.05
Wossner compression Ratio: 12.60:1
OEM Compression ratio: 12.70:1
Dome volume (cm3) � -9.30
Compression height (mm) 22.70
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
