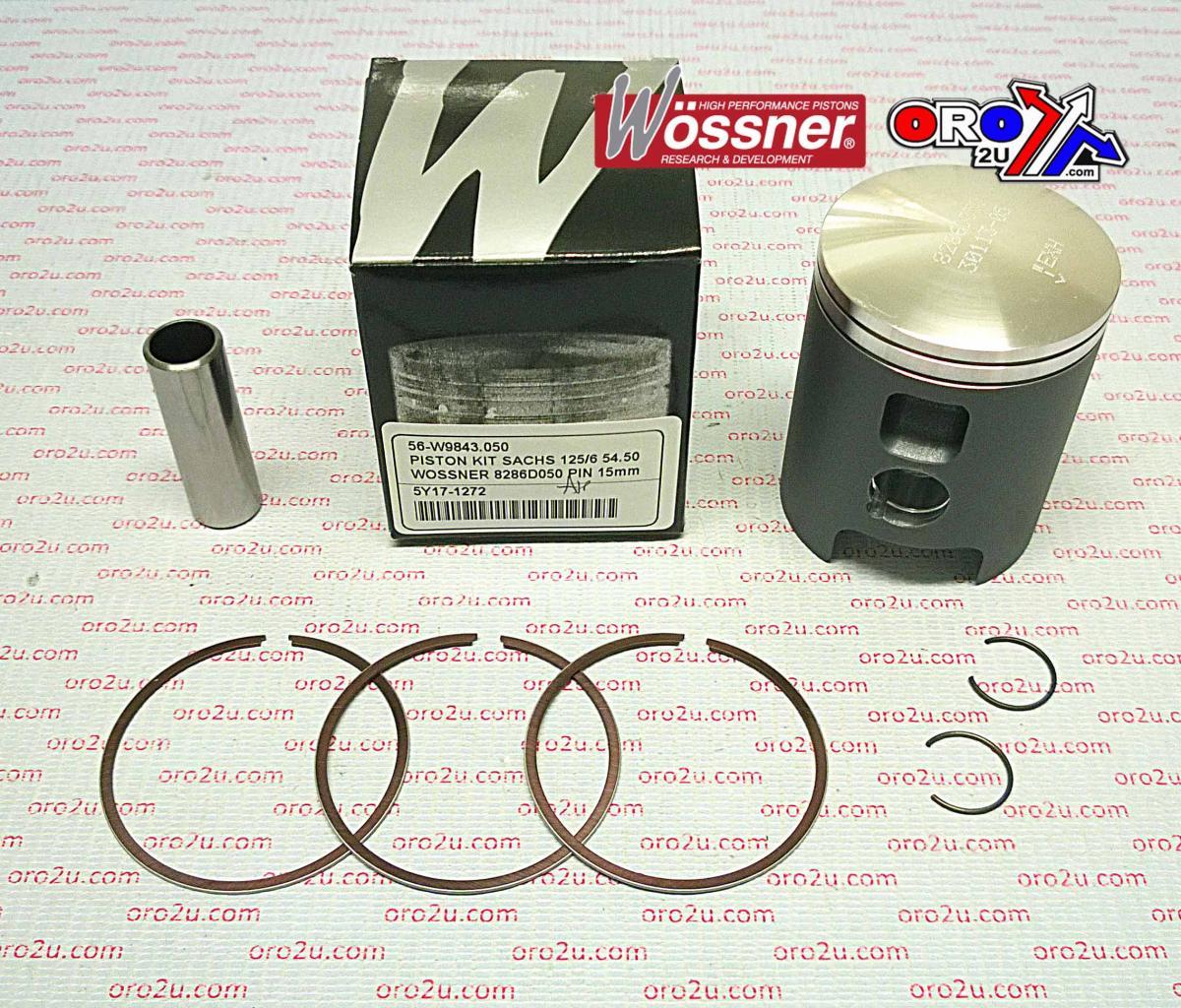

WOSSNER 55mm PISTON KIT SACHS 125/6, PIN 15mm

Piston Kit 55mm Bore 54.94 Wossner 8286DB (+0.01)

SACHS

• 125/6

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Applications: Sachs 125/6
• Piston Model: Wossner Piston Kit 8286D100 O/S 1.00mm 55.00mm Bore. Compression Height 38mm.
• Cross Reference Numbers ONLY: Clip P/N CW15, Pin P/N WP132, Ring Set P/N RSB5500 x 2
• Display (cm3): 122
• Hub Stroke (mm): 54.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Compression Height (mm): 38.00
• Theoretical Weight (G):

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
