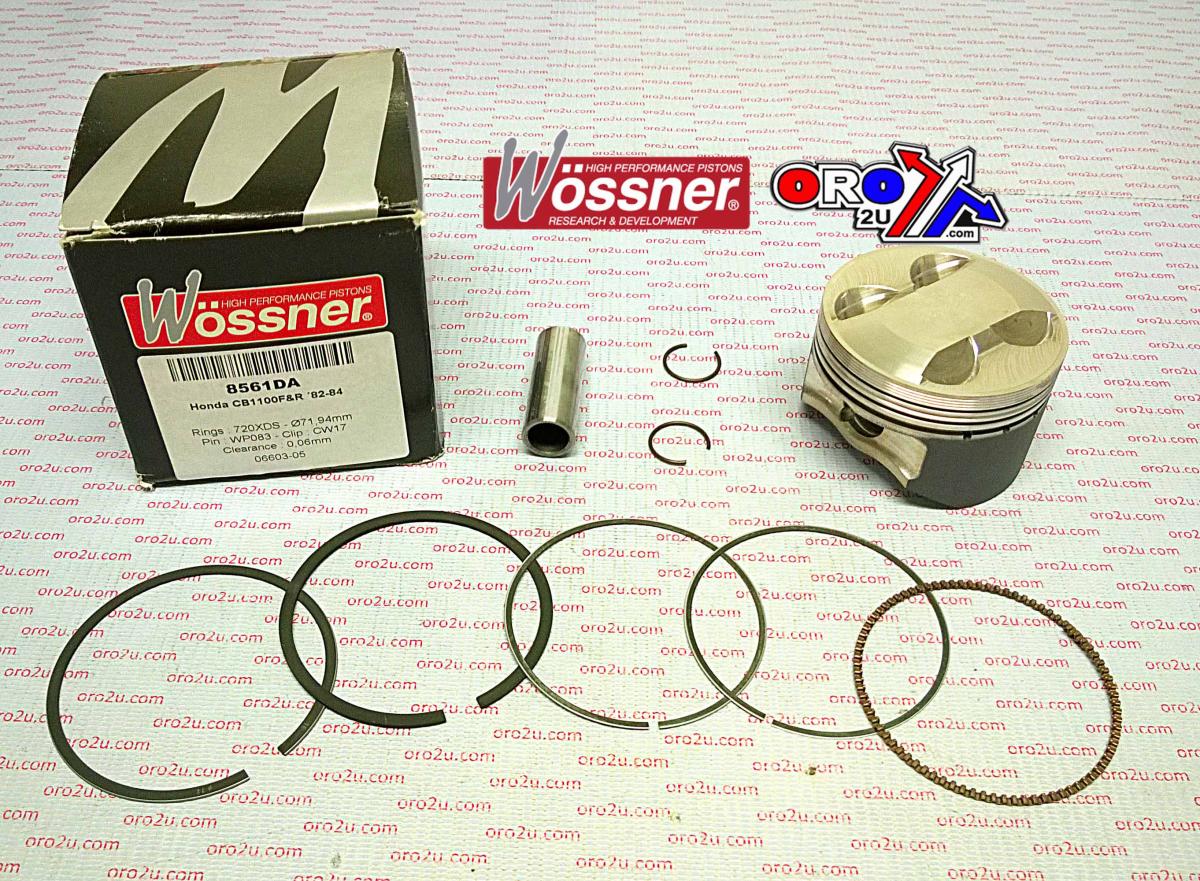

WOSSNER 72mm PISTON KIT HONDA CB1100F/R 1982-1984 (EACH)

Piston kit 72mm BORE 71.94 Wossner 8561DA �

HONDA
CB1100F 1982 - 1984,
CB1100R 1982 - 1984,
�

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9806.70.EA (oro2u.com)
HONDA 1982 - 1984 CB1100F, CB1100R,
WOSSNER STD 8561DA PISTON, 72.00mm,

Display (cm3) 1123
Hub stroke (mm) 69.00
Clearance (mm) 0.06
Wossner compression Ratio:10.00:1
OEM Compression ratio: 9.70:1
Dome volume (cm3)+3.70
Compression height (mm) 25.40
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
