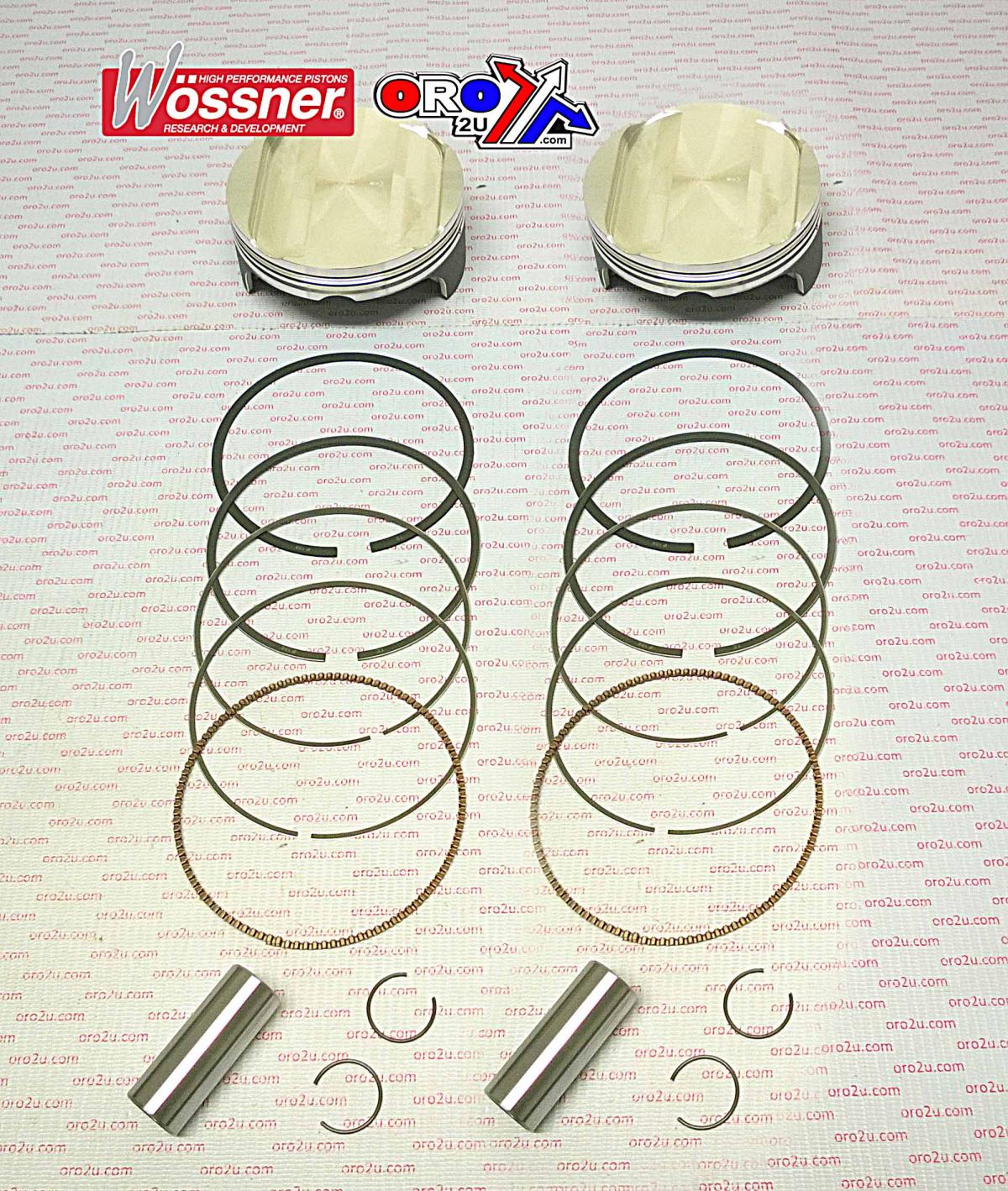

WOSSNER 106mm PISTON KIT DUCATI 1098 R/SP

Piston kit 106mm BORE 105.93 Wossner K8763DA-2 � (STD)

DUCATI
1098R,
1098SP, �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9803.106.WO (oro2u.com)
ALL YEARS DUCATI 1098R/1098SP K8763DA-2 WOSSNER PISTON, 106(mm),

Lock P/N CW20
Pin P/N WP038
Ring Set P/N 1060XSU

Display (cm3) 1099
Hub stroke (mm) 67.90
Clearance (mm) 0.07
Wossner compression Ratio:OEM
OEM Compression ratio: 12.80:1
Dome volume (cm3) -9.20
Compression height (mm) 26.00
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
