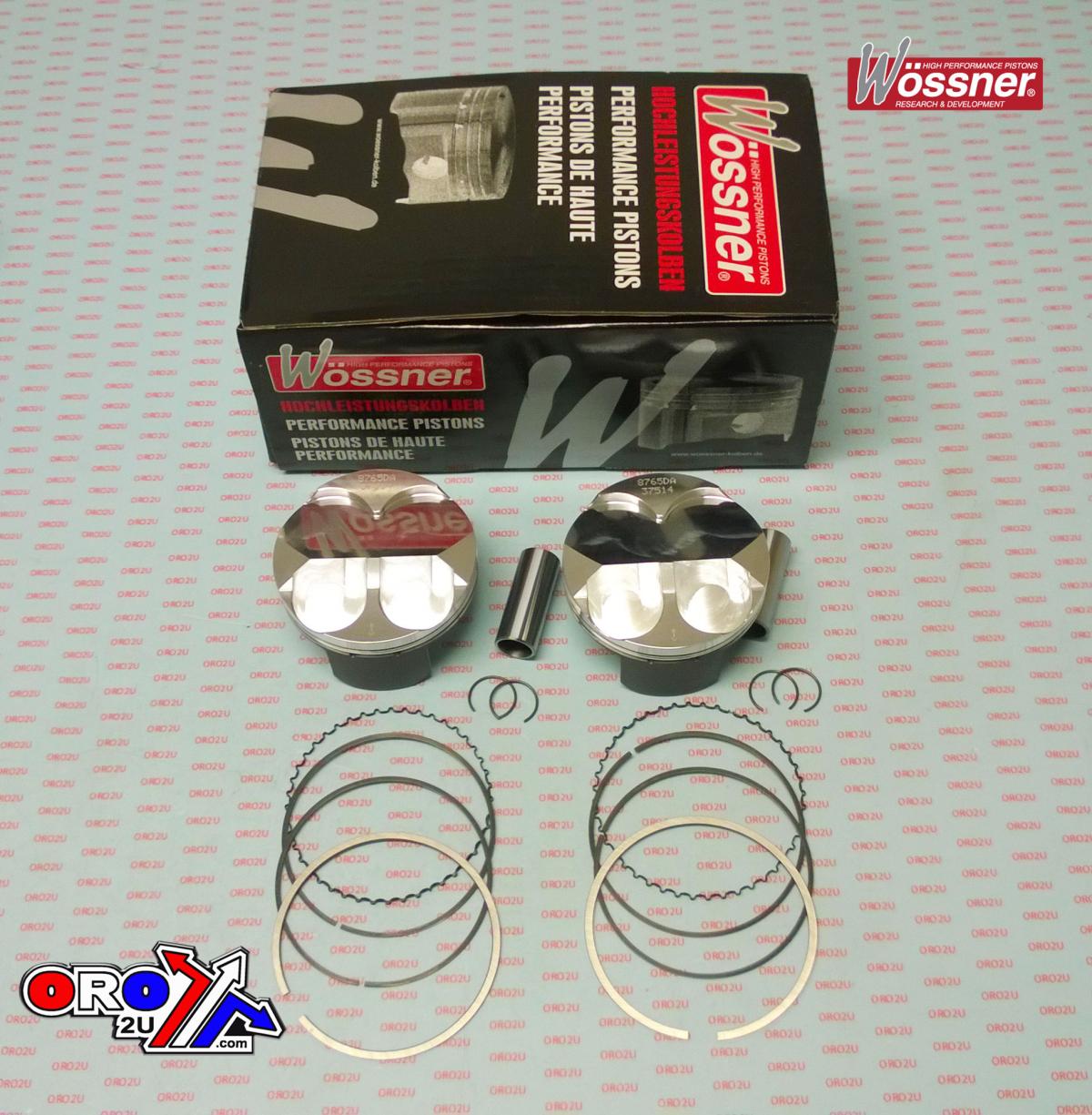

WOSSNER 94mm PISTON KIT DUCATI 848 2007-2008, SET/2

Piston kit 94mm BORE 93.94 Wossner K8765DA-2 � (STD)

DUCATI
848 Racing 2007 - 2008, �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9796.94.WO (oro2u.com)
2007 - 2008 DUCATI 848 RACING K8765DA-2 WOSSNER PISTON, 94(mm),

Stroke 61.2mm
OEM Comp. Ratio 12:1
Dome/Bowl Volume -3.2cm
Comp. Height 28mm
Lock P/N CW20
Pin P/N WP038
Ring Set P/N 940XSY

Display (cm3) 1085
Hub stroke (mm) 61.20
Clearance (mm) 0.06
Wossner compression Ratio:OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3)-3.20
Compression height (mm) 28.00
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
