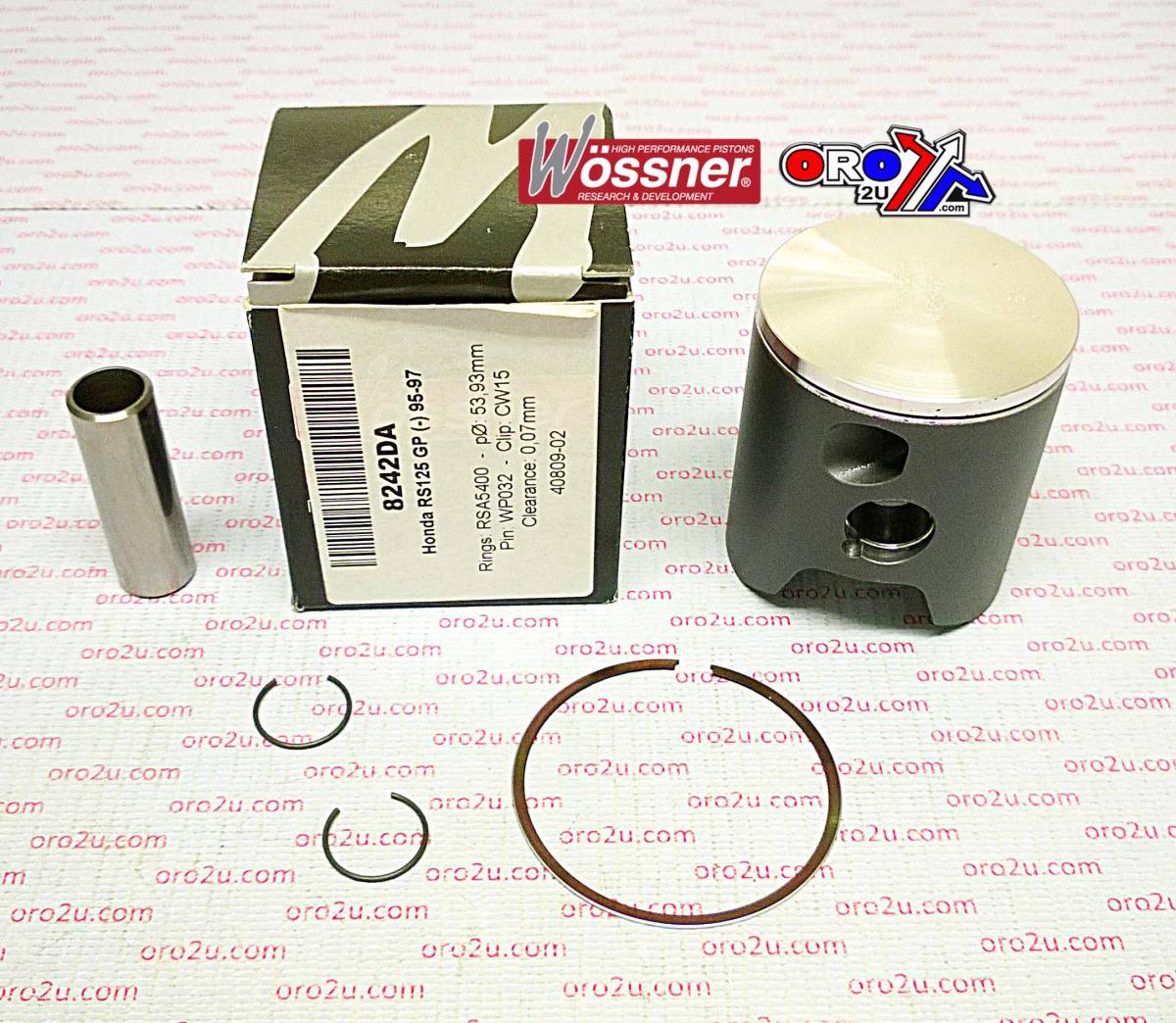

PISTON KIT 95-97 RS125 GP 54.0 FORGED WOSSNER 8242DA

Piston kit 54mm BORE 53.93 Wossner 8242DA (STD)

HONDA
RS125 GP 1995 - 1997, �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9723.A.WO (oro2u.com) Wossner Piston Honda RS125 53.93 mm (PN# 8242DA)
- 1995 Honda RS 125 GP
- 1996 Honda RS 125 GP
- 1997 Honda RS 125 GP
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSA5400

Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 29.00
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
