WOSSNER 95mm PISTON KIT B, KTM EXC-F 450 12-20, HUSQVARNA FE450 14-19

Piston kit 95.01mm BORE 94.96 Wossner 8898DB (+0.01MM)

HUSABERG
FE450 � 2014,

KTM
EXC550 2012 - 2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W968.B.WOKTM EXC-F450 2012-2014,

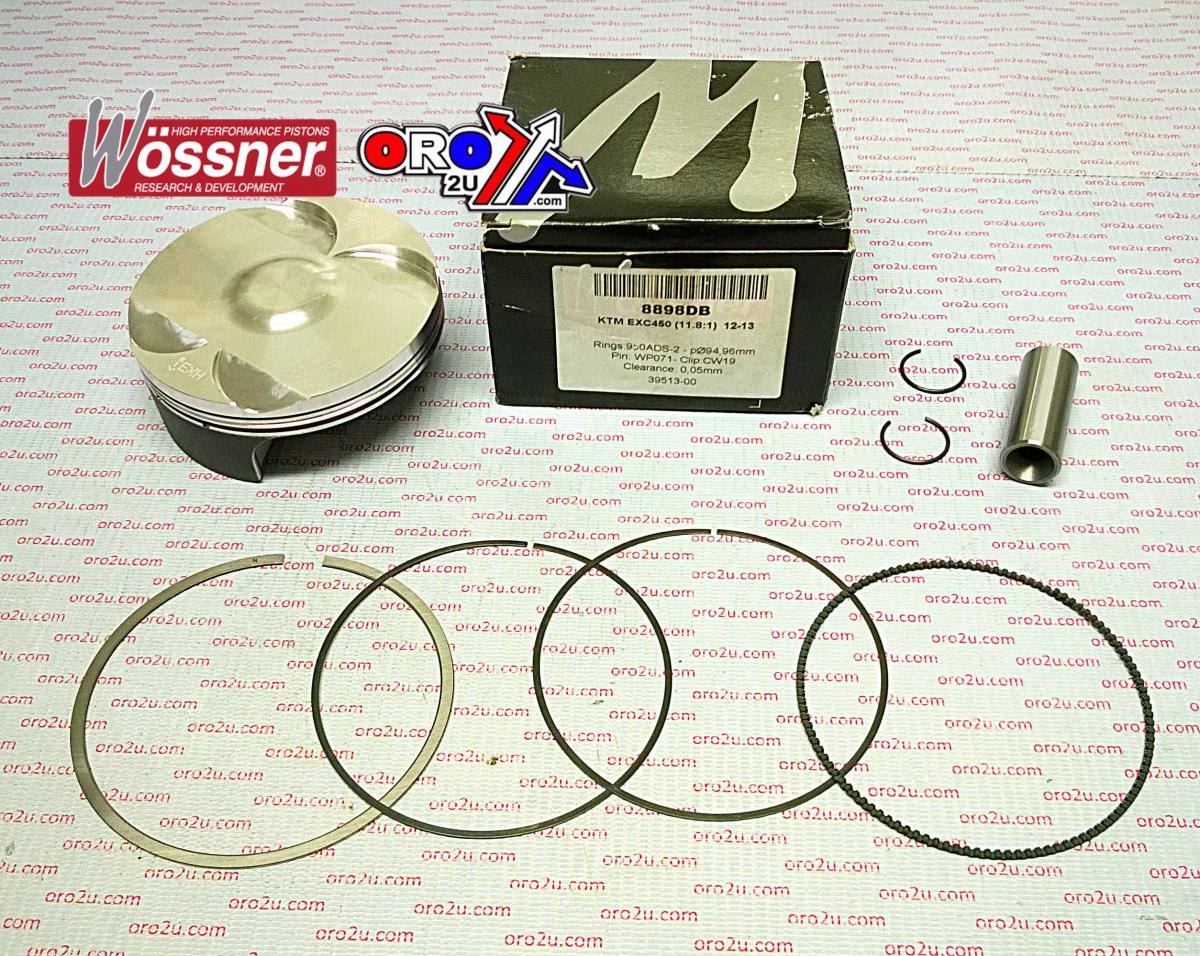

WOSSNER PISTON KIT
Piston Size: 94.96mm
Stroke: 63.4
Comp. ratio: 11.9:1
Comp. Height (mm) 22.80
RING P/N 950ADS-2
CLIP P/N CW19
PIN P/N WP037
(P/N# 8898DB)

Display (cm3) 449
Hub stroke (mm) 63.40
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 11.80:1
Dome volume (cm3) -1.60
Compression height (mm) 22.80
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
