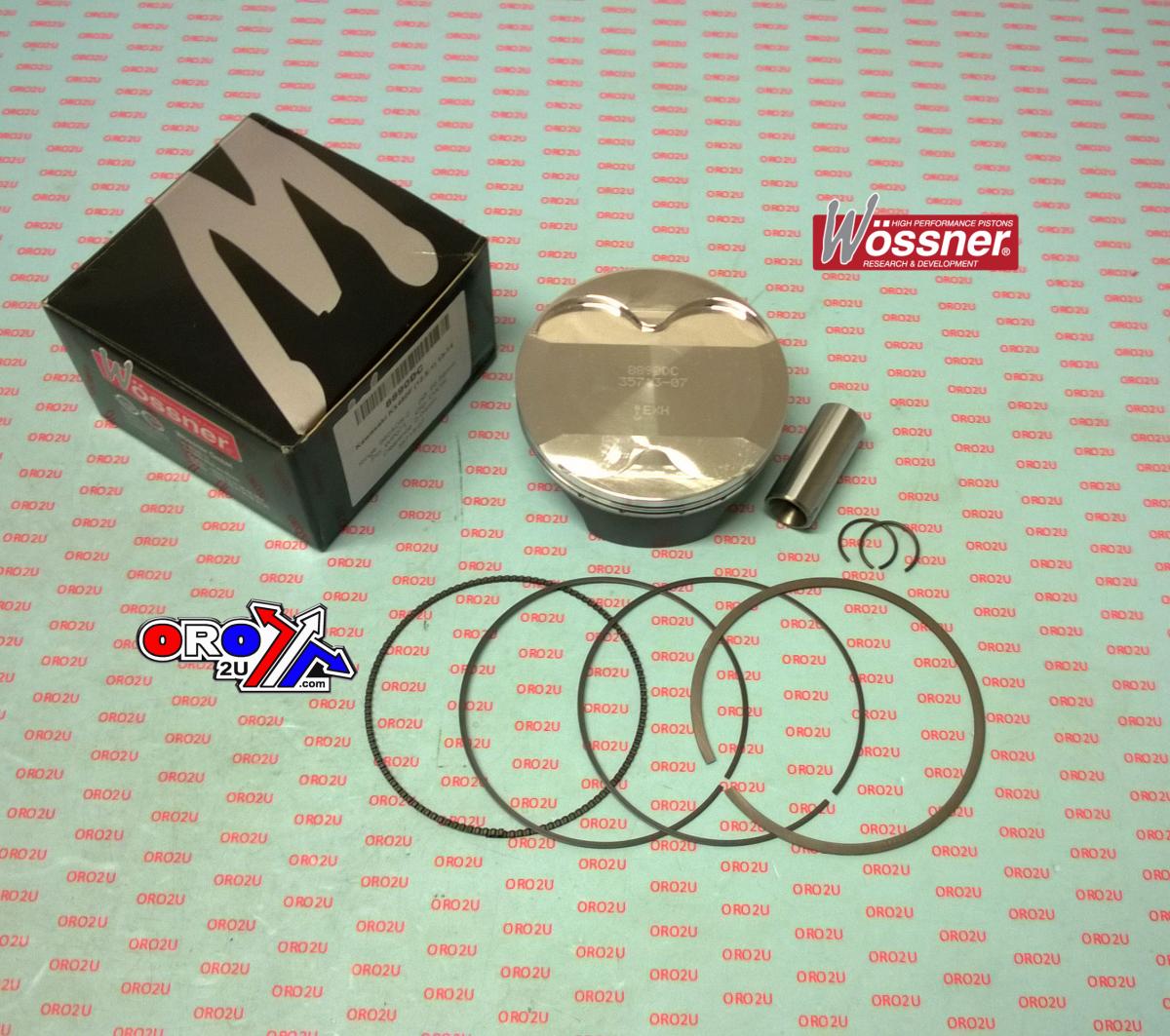

PISTON KIT 13-14 KX450F 96.00 WOSSNER 8890DA KAWASAKI

Piston kit 96mm BORE 95.96 Wossner 8890DA (STD)

KAWASAKI
KX450F 2013 - 2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W965.A.WO (oro2u.com) Kawasaki KX450F 2013-14,
Wossner Piston Kawasaki KX450F 96 mm Bore (PN# 8890DA)
Lock P/N CW19
Pin P/N WP071
Ring Set P/N 960ADS-2
Rod P/N P4020

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) +1.00
Compression height (mm) 23.70
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0736, � 40082M09600

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
