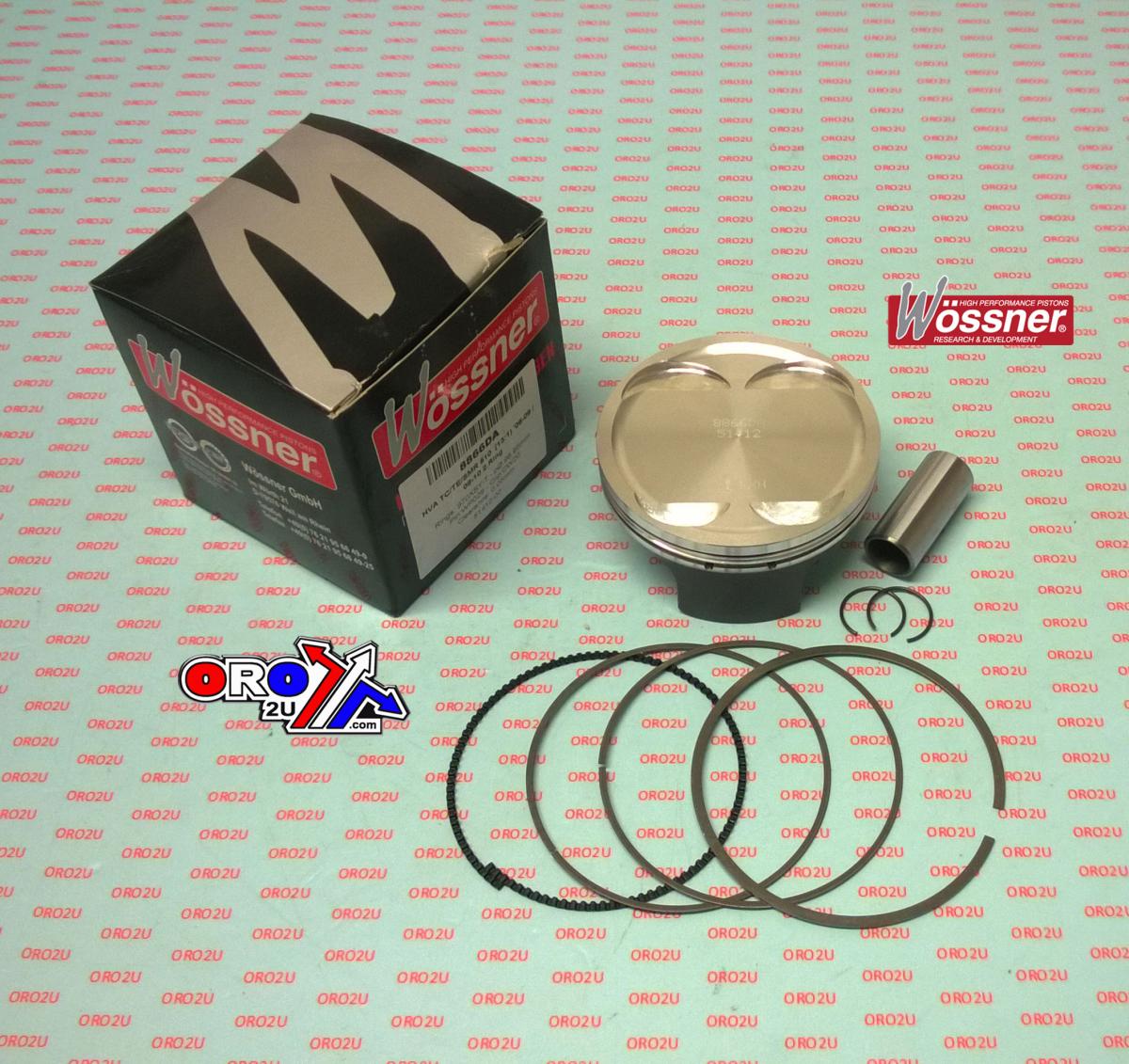

WOSSNER 97mm PISTON KIT B, HUSQVARNA TC510 06-09, TE510 08-10, SMR 510 08-10

Piston kit 97.01mm BORE 96.96 �Wossner 8866DB (+0.01mm)

HUSQVARNA
TC510 2006 - 2009,
TE510 2008 - 2010,
SMR510 2008 - 2010,

(2 Rings)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W152.WO.B (ORO2U.COM) Wossner Piston Husqvarna TC510 97.01mm Bore (PN# 8866DB)
TC510 06-09 TE510 08-10 SMR510 08-10
RINGS 970XSY
C-CLIPS CW20
PIN WP029

Display (cm3) 501
Hub stroke (mm) 67.80
Clearance (mm) 0.05
Wossner compression Ratio: 13.00:1
OEM Compression ratio: 12.90:1
Dome volume (cm3) -9.20
Compression height (mm) 24.80
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
