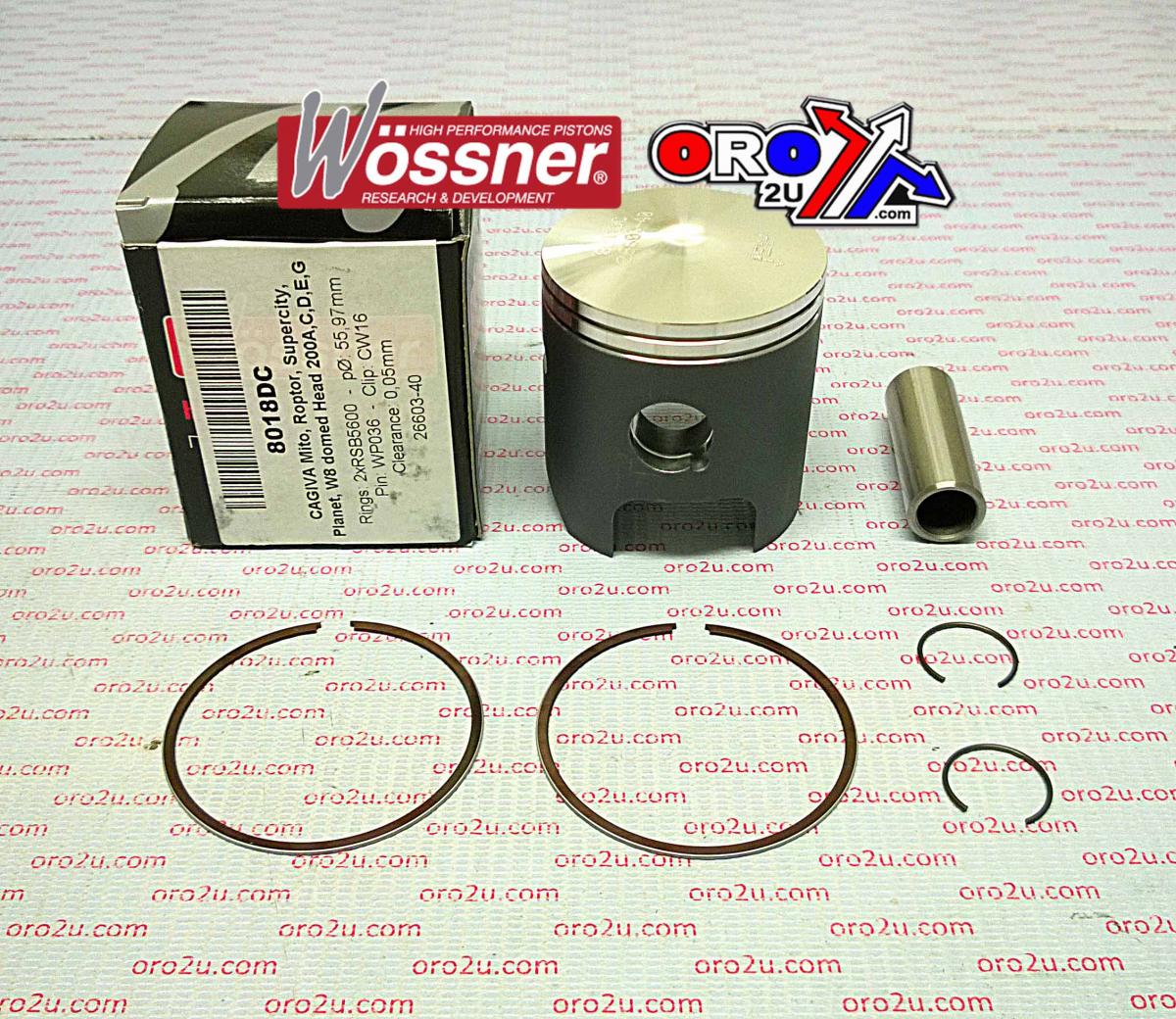

WOSSNER 57mm PISTON KIT CAGIVA MITO 125 1999-2012

Piston kit 57mm BORE 56.95 Wossner 8018D100 (+1mm)

CAGIVA
125 Mito / Raptor / Supercity / Planet / W8 / Head 200A,C,D,E,G 2000-2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W941_100 (oro2u.com) CAGIVA 125 Mito / Roptor / Supercity / Planet / W8 2000- 2012,
Wossner Piston CAGIVA Mito 57.00 mm Bore 8018D100
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5700 x 2

Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) Domed
Compression height (mm) 25.00
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
