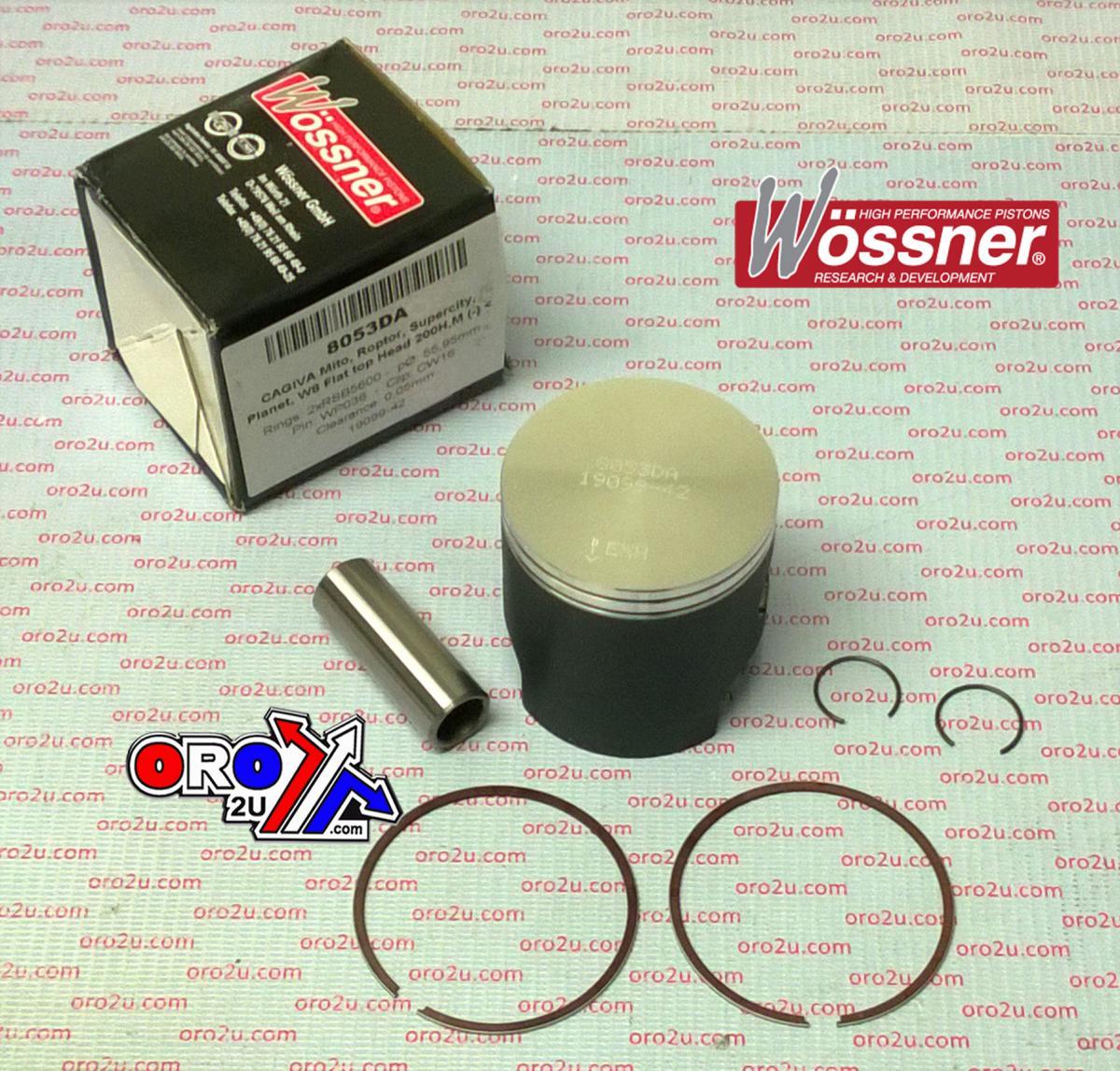

WOSSNER 56mm PISTON KIT C, CAGIVA MITO 125 1993-1998

Piston kit 56.00mm BORE 55.97 WOSSNER 8053DC (+0.02mm)

CAGIVA
125 Mito/ Raptor / Supercity / Planet / W8 / Head 200H,M � 2000-2012, � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W940+00C.WO (oro2u.com)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N 2 x RSB5600

Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) Flat
Compression height (mm) 25.00
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
