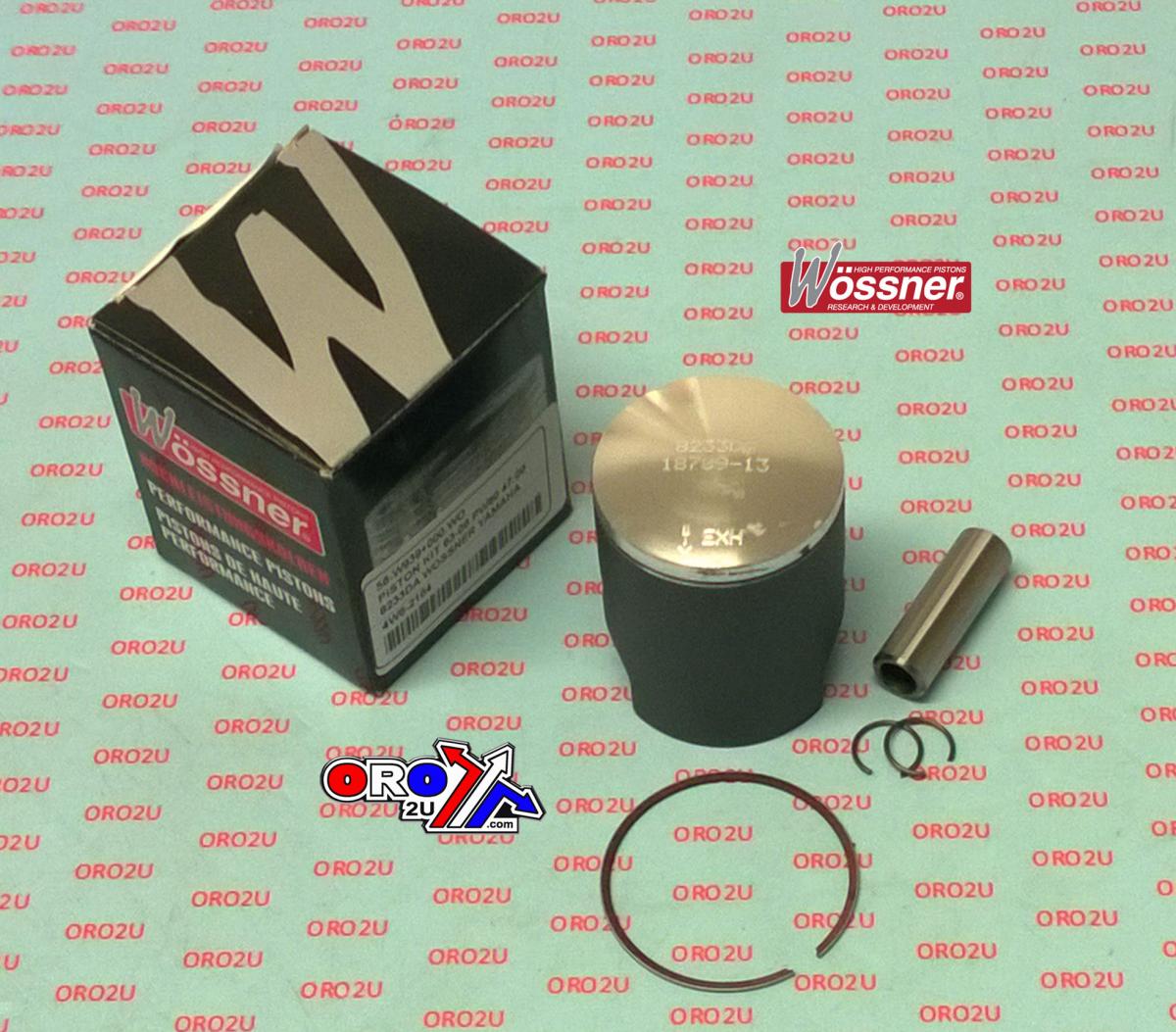

WOSSNER 47mm PISTON KIT YAMAHA PW80 1983-2008

Piston kit 47mm BORE 46.95 Wossner 8233DA (STD)

YAMAHA
PW80 1983 - 2006,
BW80 1986 -1988, 1990,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 8233DA (oro2u.com)
YAMAHA PW80 1983-2006,
YAMAHA BW80 1986-1988, 1990,
YAMAHA YB/TY/PW80 -3E5-,
Wossner Piston Yamaha PW80 47 mm Bore (PN# 8233DA)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB4700

Hub stroke (mm) 45.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 29.50
Theorectical weight (G)

- 1983 Yamaha PW 80 - 1984 Yamaha PW 80

- 1985 Yamaha PW 80 - 1986 Yamaha PW 80 - 1987 Yamaha PW 80 - 1988 Yamaha PW 80 - 1989 Yamaha PW 80 - 1990 Yamaha PW 80 - 1991 Yamaha PW 80 - 1992 Yamaha PW 80 - 1993 Yamaha PW 80

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
