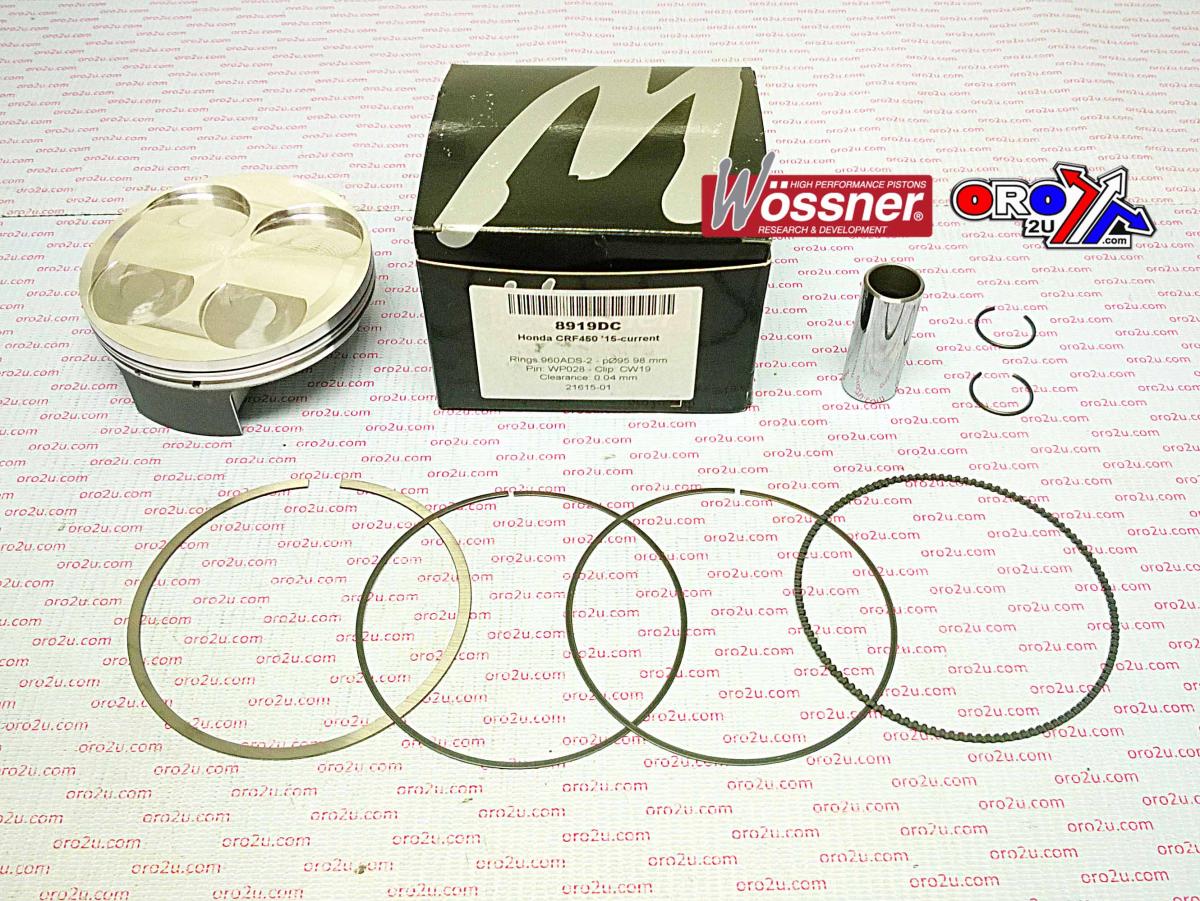

WOSSNER 96mm PISTON KIT C, HONDA CRF450R 2015-2016

Piston kit 96.02mm BORE 95.98 Wossner �8919DC (+0.02mm)

HONDA
CRF450R 2015 - ,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W927.C.WO (ORO2U.COM) HONDA CRF450R 2015 - 2016,
WOSSNER PISTON KIT
SIZE 95.98
WOSSNER # 8919DC
Circlip P/N CW19
Pin P/N WP028
Ring Set P/N 960ADS-2

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) -2.24
Compression height (mm) 20.60
Theorectical weight (G) 241.00

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
