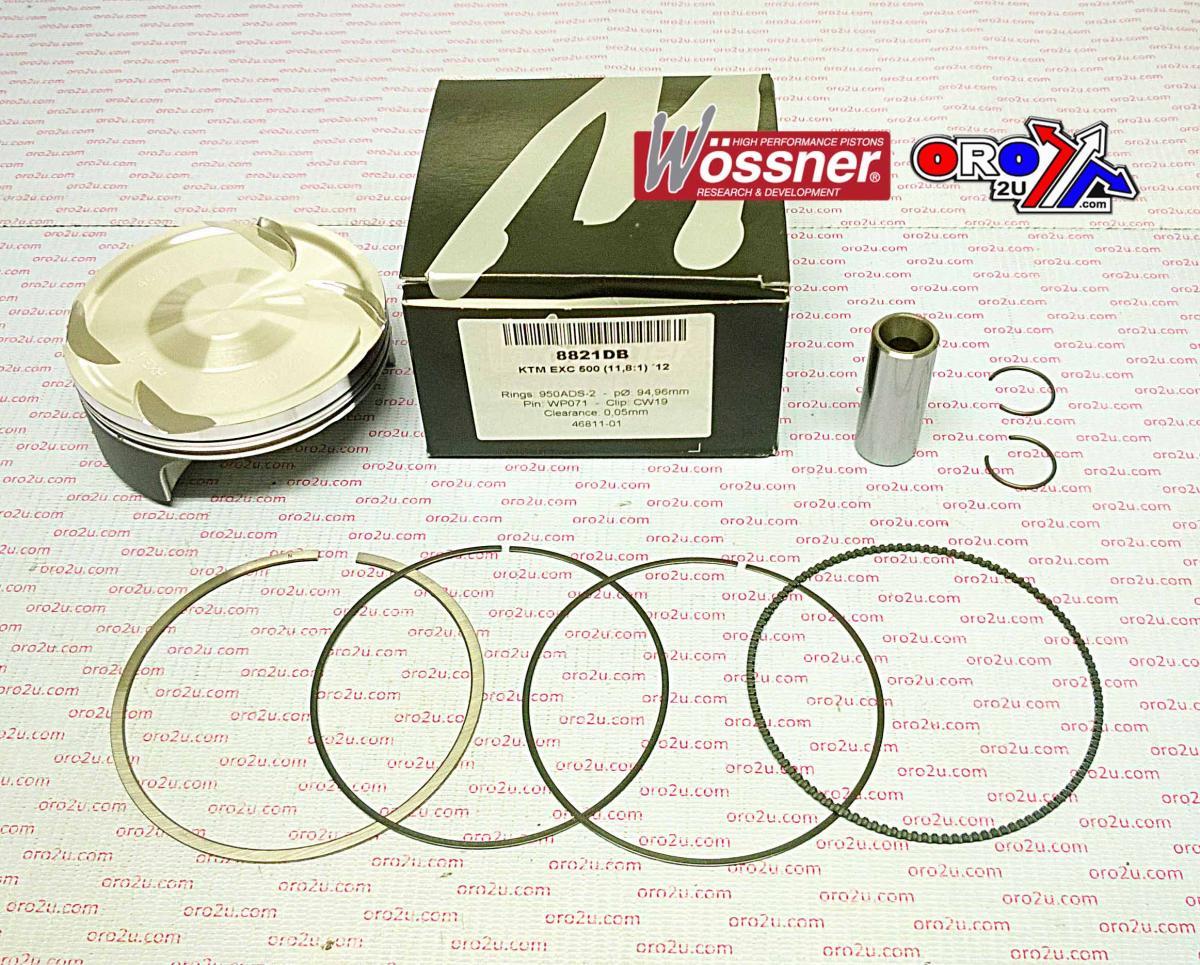

WOSSNER 95mm PISTON KIT B, KTM EXC 500 12-19, HUSQVARNA FE501 13-18

Piston kit 95.01mm BORE 94.96 Wossner �8821DB (+0.01MM)

KTM
EXC500 2012 - ,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Hard teflon skirt coating for perfect fit and conformability to your cylinder bore.

Part No. 56-W925.B.WO Wossner Piston KTM EXC500 2012-2013 (8821DB)
Circlip P/N CW19
Pin P/N WP071
Ring Set P/N 950ADS-2
Size. 94.96mm

Display (cm3) 510
Hub stroke (mm) 72.00
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 11.80:1
Dome volume (cm3) -6.80
Compression height (mm) 22.80
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
