WOSSNER 58mm PISTON KIT B, HUSQVARNA CR150 2011-2013

Piston kit 58.01mm BORE 57.95 Wossner �8283DB (+0.01MM)

HUSQVARNA
CR150 2011 - 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

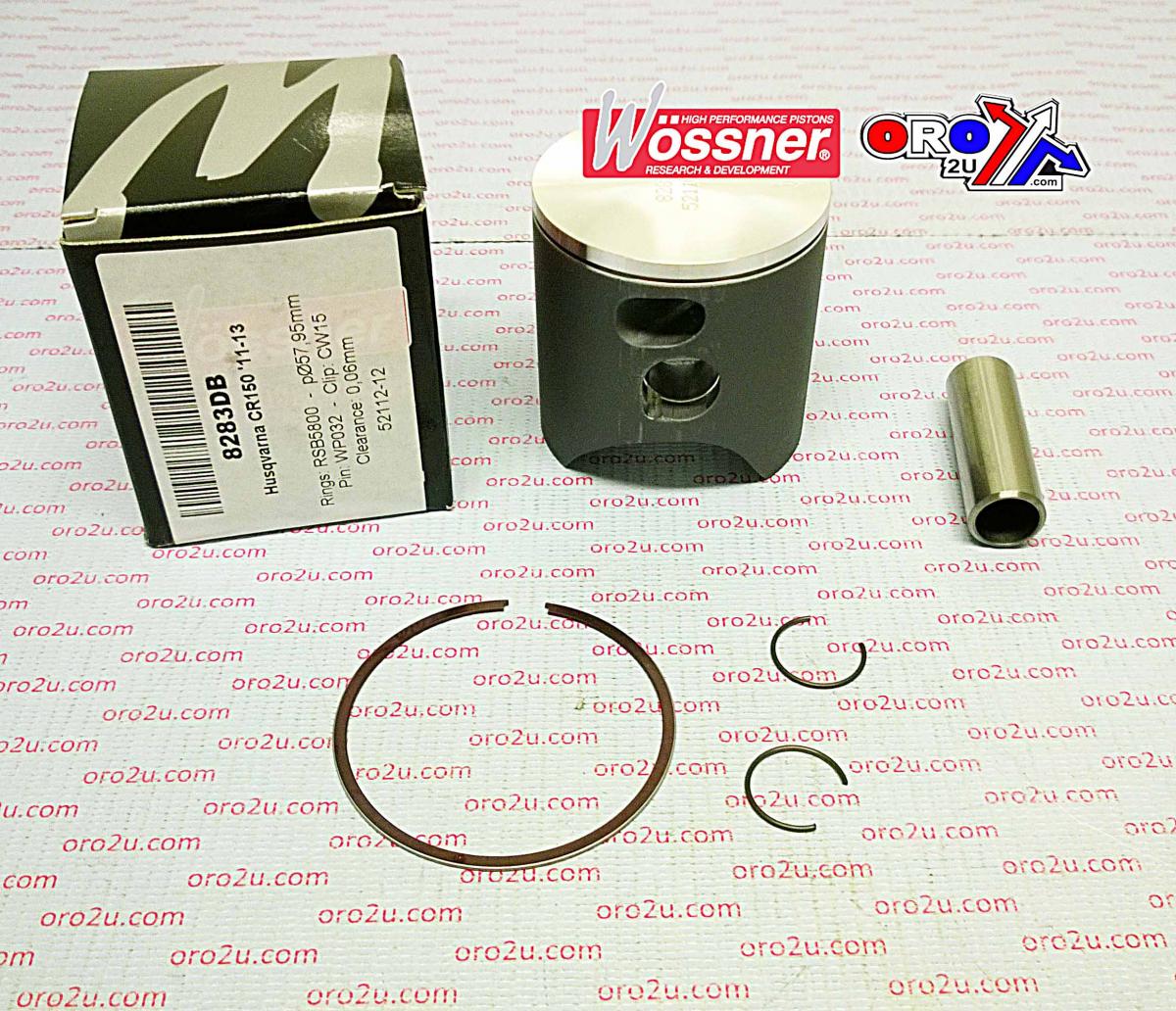

Part No. 56-W924.B.WO (oro2u.com) Wossner Piston HUSKY CR150 2011-2013 (8283DB)
Circlip P/N CW15
Pin P/N WP032
Ring Set P/N RSB5800
Size. 57.95mm

Display (cm3) 144
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 28.00
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
