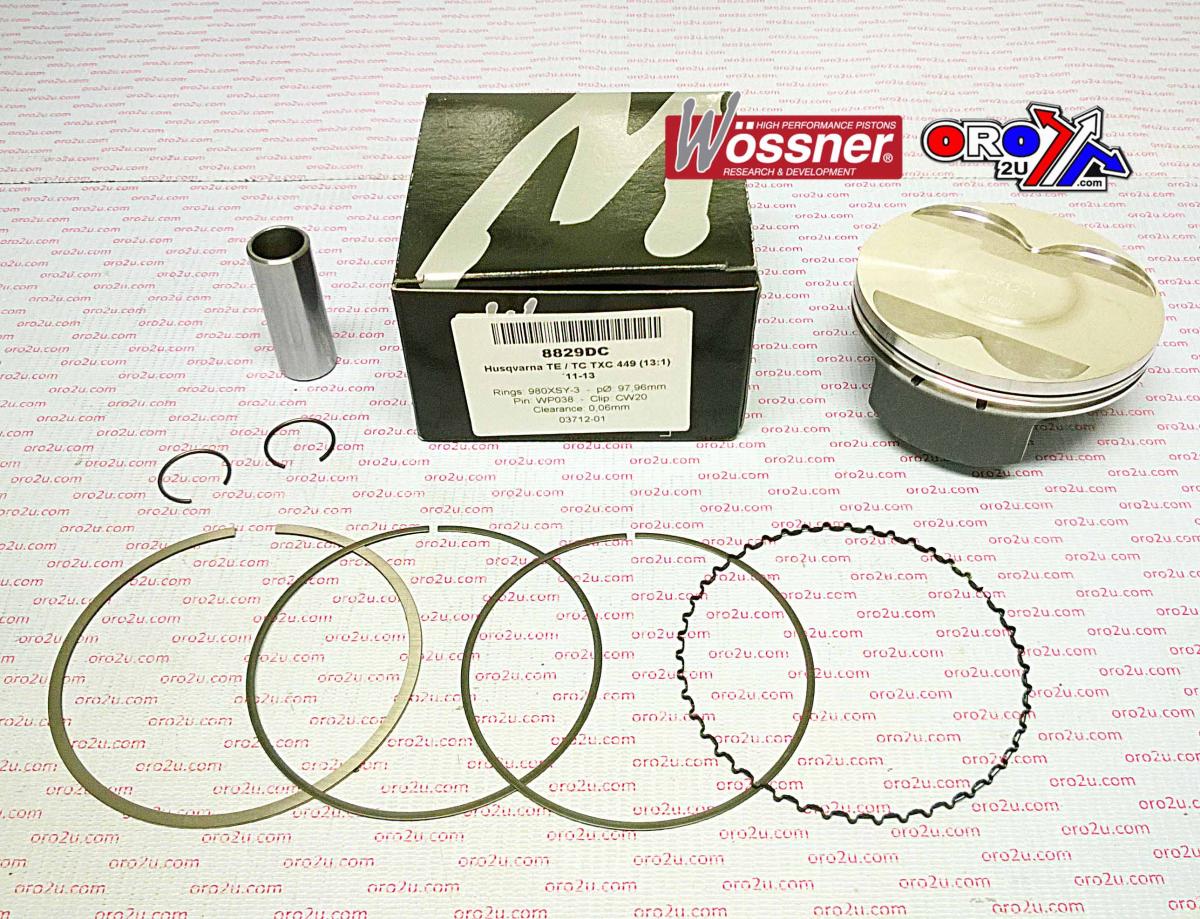

WOSSNER 98mm PISTON KIT A, HUSQVARNA TE/TC/TXC 449 2011-2013

Piston kit 98mm BORE 97.94 Wossner �8829DA (STD)

HUSQVARNA
TE449/TC446/TXC449 2011-2013 (PRO SERIES)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W920.A.WO
(ORO2U.COM)WOSSNER PISTON KIT HUSQVARNA TE449/TC446/TXC449 2011-2013
SIZE 97.94mm
WOSSNER # 8829DA
CIRCLIP - CW20
PIN - WP038
RINGS - 980XSY

Display (cm3) 449
Hub stroke (mm) 59.60
Clearance (mm) 0.06
Wossner compression Ratio: 13.00:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) -0.50
Compression height (mm) 25.00
Theorectical weight (G)

Cross reference numbers ONLY.
1-002-442-681, �

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
