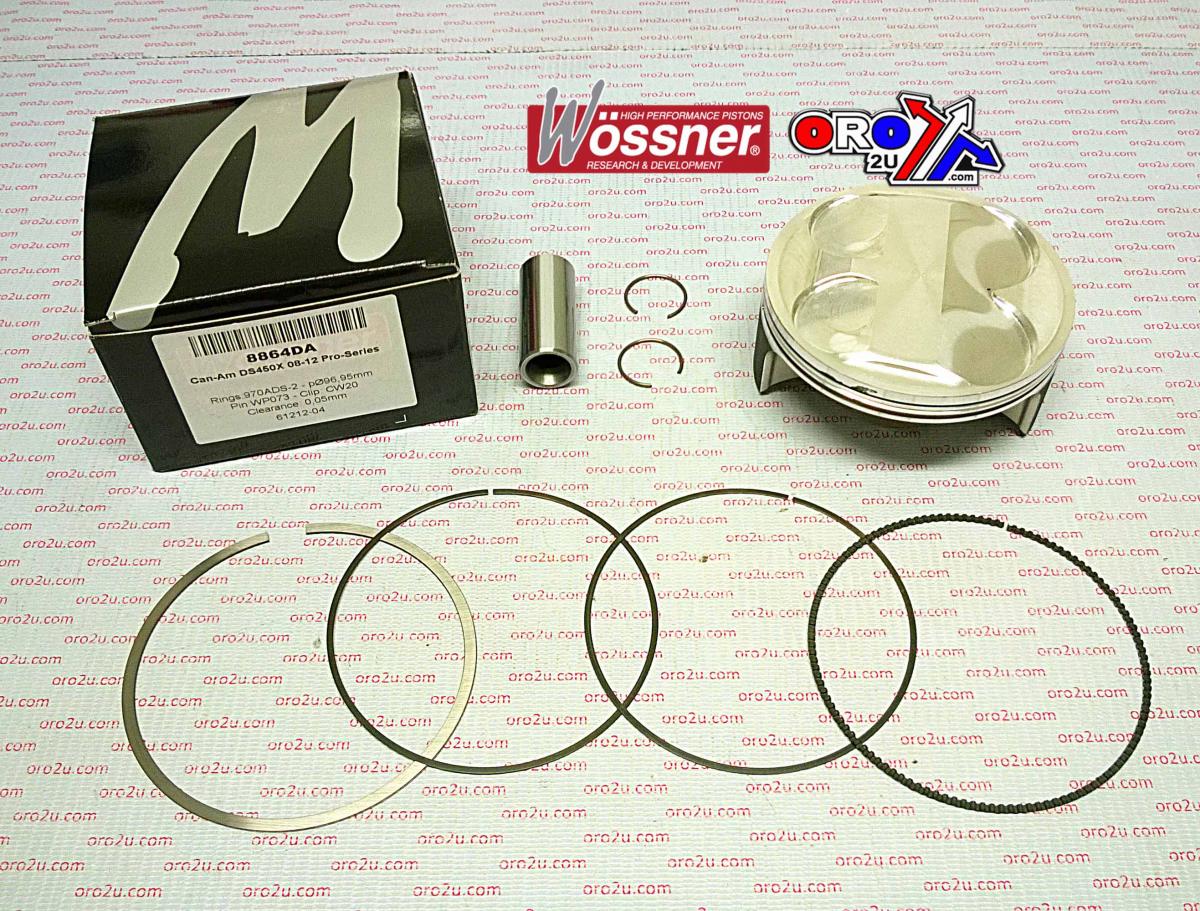

WOSSNER 97mm PISTON KIT A, CAN-AM DS450 2008-2012

Piston kit 97mm BORE 96.95mm Wossner 8864DA (HC)
PRO SERIES

CAN-AM
DS450 2008 - 2012,
DS450X 2008 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W910.A.WO (oro2u.com)
CAN-AM DS450 / DS450X 2008 - 2012,
WOSSNER 8864DA PISTON KIT SIZE 97.00mm, Comp Ratio 13.5:1
PISTON PARTS.
CLIPS - CW20,
PIN - WP073,
RINGS - 970AD-S

Display (cm3) 449
Hub stroke (mm) 60.80
Clearance (mm) 0.05
Wossner compression Ratio: 12.5:1
OEM Compression ratio: 11.8:1
Dome volume (cm3) -0.50
Compression height (mm) 26.80
Theorectical weight (G)

Cross reference numbers ONLY.
420685132, 40027M09700, 8943DA

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
