WOSSNER 54.5mm PISTON KIT HONDA NSR125R 1989-2001, CRM125 1986-1996

Piston kit 54.50mm Bore 54.44 Wossner 8019D050 (+0.50mm)

HONDA
CRM R 125 �'1986-' 2006,
NSR R 125 �built 1988-2003

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

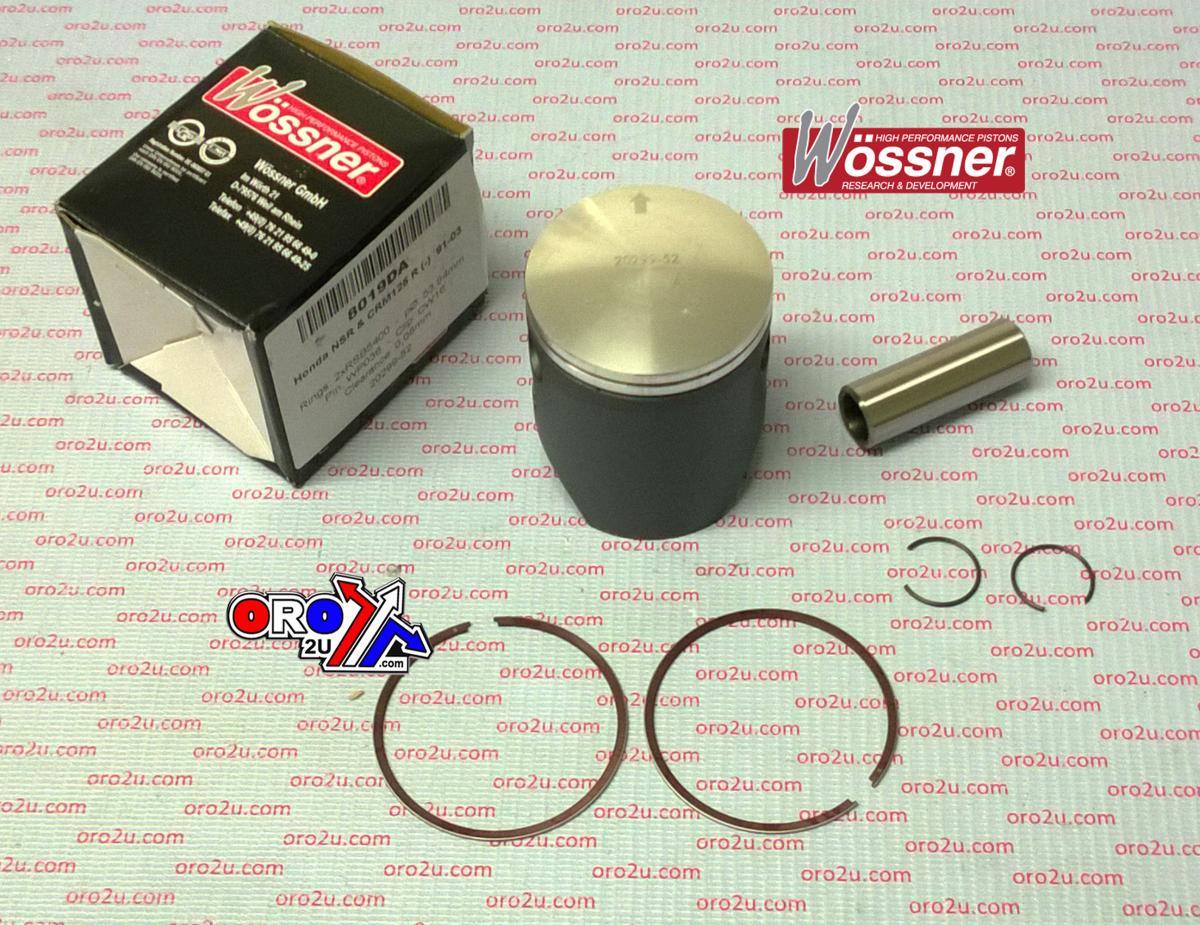

High quality Piston kit. Consist of pistons, rings, bolts and circlips.

56-W906+050.WO (8019D050)
RINGS. (2x)RSB5450
CLIPS. CW16
PIN. WP036

Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.00
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
