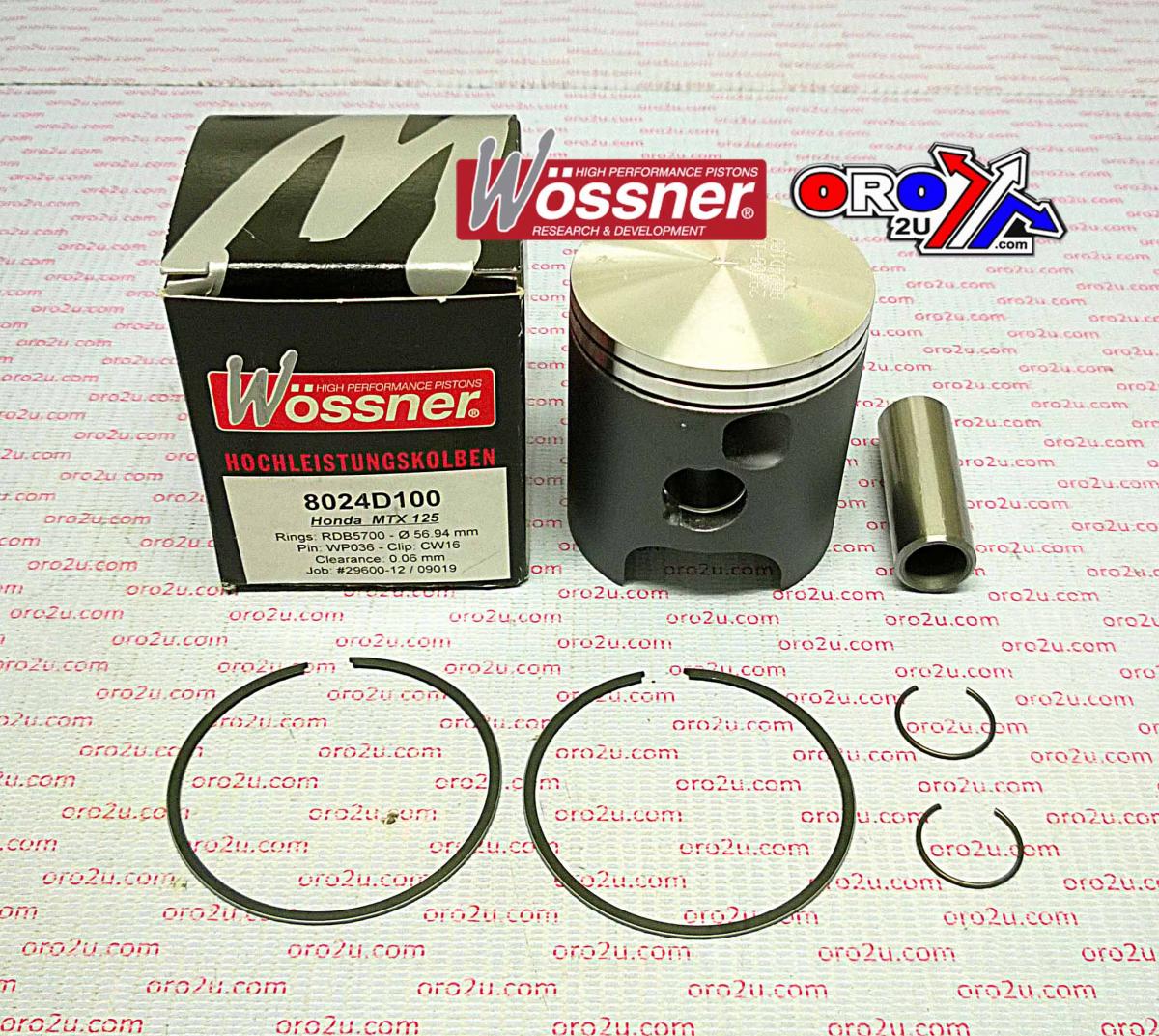

WOSSNER 56mm PISTON KIT HONDA MTX125 1983-1987, MBX125 1983-1987

Piston kit 56mm BORE 55.94mm Wossner 8024DA (STD)

HONDA
MBX125 1983 - 1987,
MTX125 1983 - 1987,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W903+000.WO (oro2u.com) Wossner Piston Honda MBX125 56 mm Bore (PN# 8024DA)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5600 x 2

Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.40
Theorectical weight (G)

Cross reference numbers ONLY.
13140-KE1-003,

- 1983 Honda MBX 125 - 1983 Honda MTX 125 - 1984 Honda MBX 125 - 1984 Honda MTX 125 - 1985 Honda MBX 125 - 1985 Honda MTX 125 - 1986 Honda MBX 125 - 1986 Honda MTX 125

- 1987 Honda MBX 125 - 1987 Honda MTX 125

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
