WOSSNER 80mm PISTON KIT A, POLARIS 800 RZR 10-14, RANGER 10-14, SPORTSMAN 05-14

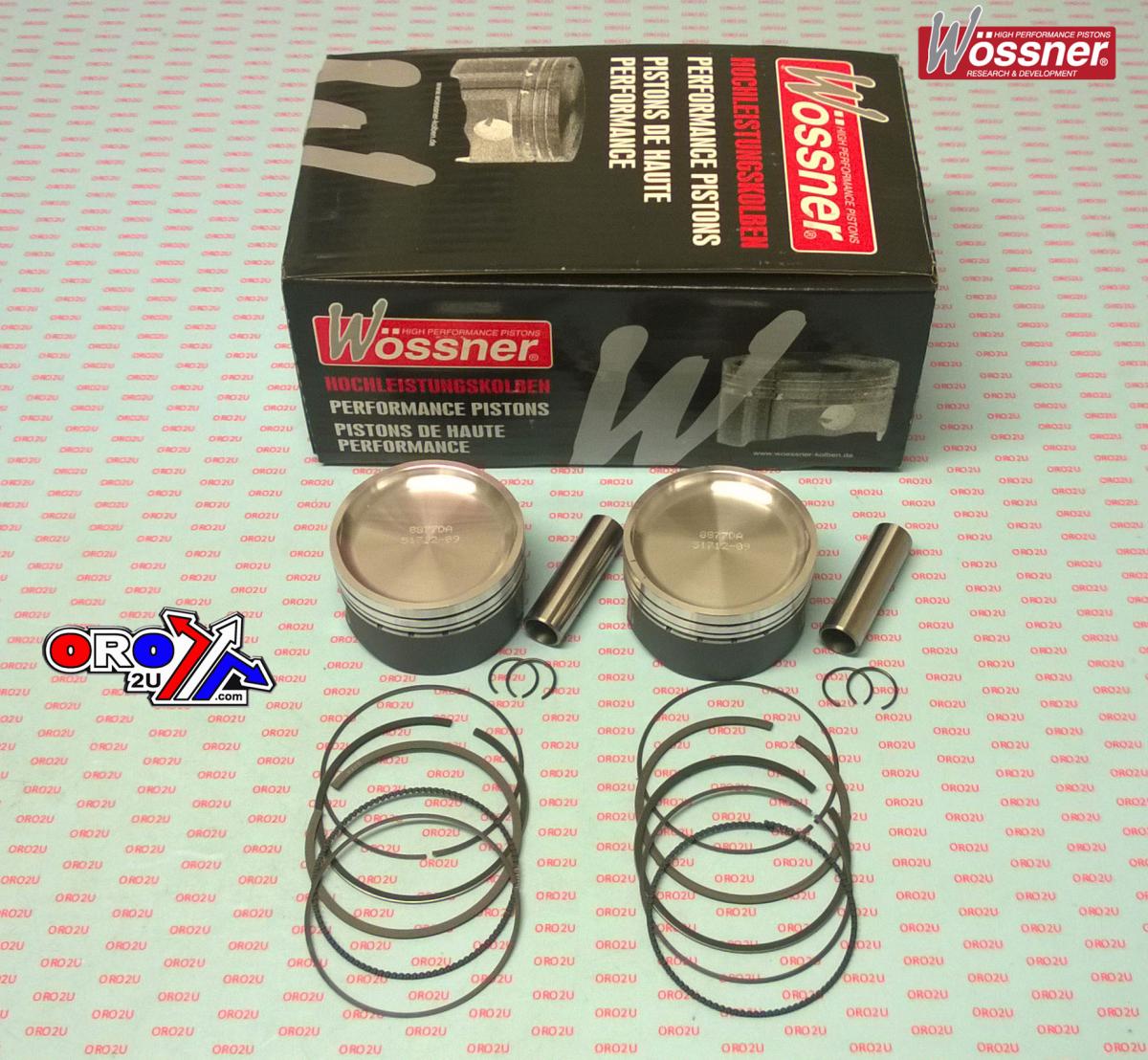

Piston Kit 80mm Bore 79.93 Wossner �K8877DA-2 (STD)

POLARIS
SPORTSMAN 800 2005-2012,
RANGER RZR800 2007-2015,
Sportsman EFI800 2005-2011,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W8803+00A.WO (oro2u.com)
Lock P/N CW18
Pin P/N WP042
Ring Set P/N 800XTZ-3

Cross reference numbers ONLY.
2202917, 4961M08000

POLARIS SPORTSMAN 800 2005-2012, POLARIS RANGER RZR800 2007-2015, Polaris Sportsman EFI800 2005-2011,
Wossner K8877DA-2 Pistons A,
Wossner are forged and have been developed for the racer

seeking strength and reliability, and the everyday trail rider who is looking for increased longevity over a cast- type piston.
Cross reference numbers ONLY. REPLACEMENT RING SET. CLIPS CW18 WRISTPIN WP042, RINGS 800XTZ-3

Piston to Bore Clearance: Wossner pistons already have the recommended clearance built in. Skirt diameter is smaller than the recommended bore size (see sizing on box). Some applications: Nitrous, supercharged, turbo, and cold water marine engines may need more than the recommended clearance.
Pistons are measured 90 degrees from the piston pin axis of the piston skirt, with a micrometre and then a ball

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
