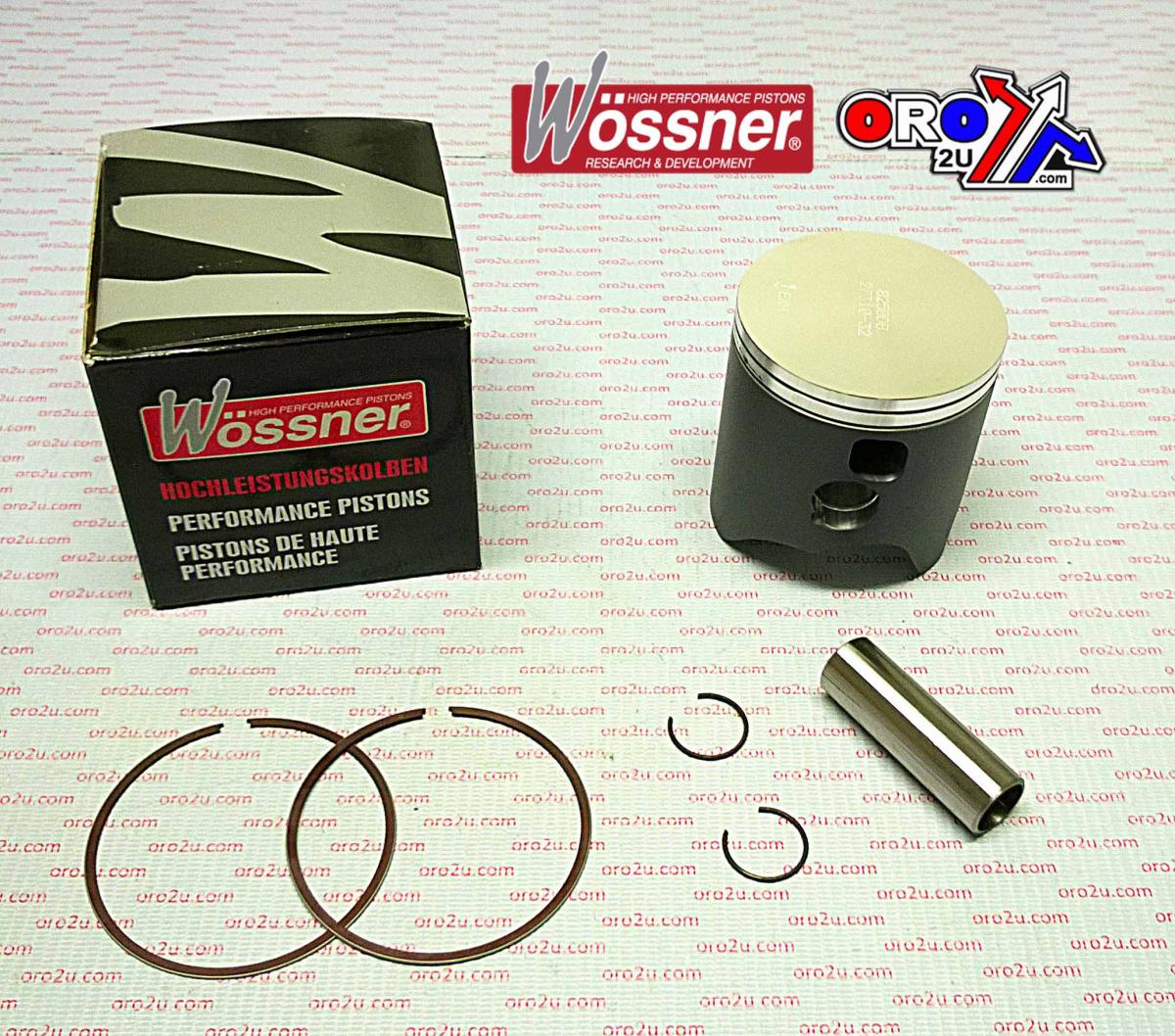

PISTON KIT 08-15 KTM300 72mm WOSSNER 8250DA FORGED

Piston Kit 72mm Bore 71.94 Wossner 8250DA (STD)

KTM
EXC 300 2008 - ,
MXC 300 2008 - ,

HUSQVARNA
WR300 2009 - 2013,
TE300 2014 -,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W854.A.WO (oro2u.com)
Wossner Piston KTM EXC300 (71.94mm) 72 mm Bore (PN# 8250DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7200 x 2
Rod P/N P2023

Display (cm3) 297
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
55630107000, 09104895 � � � , 858M07200, 55630107100

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
