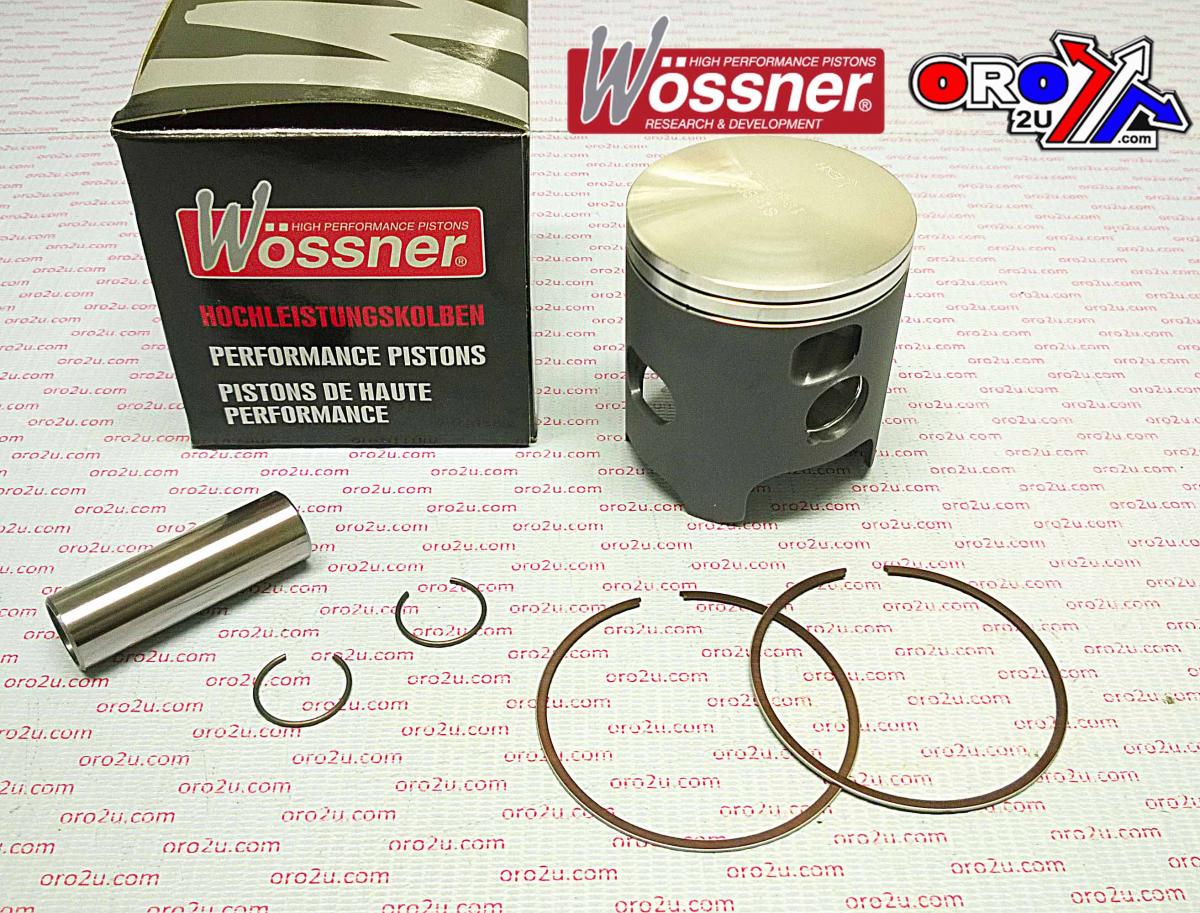

WOSSNER 66.4mm PISTON KIT B, KAWASAKI KX250 2005-2008

Piston Kit 66.41mm Bore 66.35 Wossner 8168DB (+0.01)

KAWASAKI
KX250 2005 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W844.B.WO (oro2u.com)
Wossner Piston Kawasaki KX250 66.41 mm Bore (PN# 8168DB)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 x 2
Rod P/N P2022

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.00
Theorectical weight (G)

�

- 2005 Kawasaki KX 250 - 2006 Kawasaki KX 250 - 2007 Kawasaki KX 250 - 2008 Kawasaki KX 250 - 2009 Kawasaki KX 250

Cross reference numbers ONLY. [ 13001-0058 + 13002-1098 + 13008-0013 + 92033-1336 ]

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
