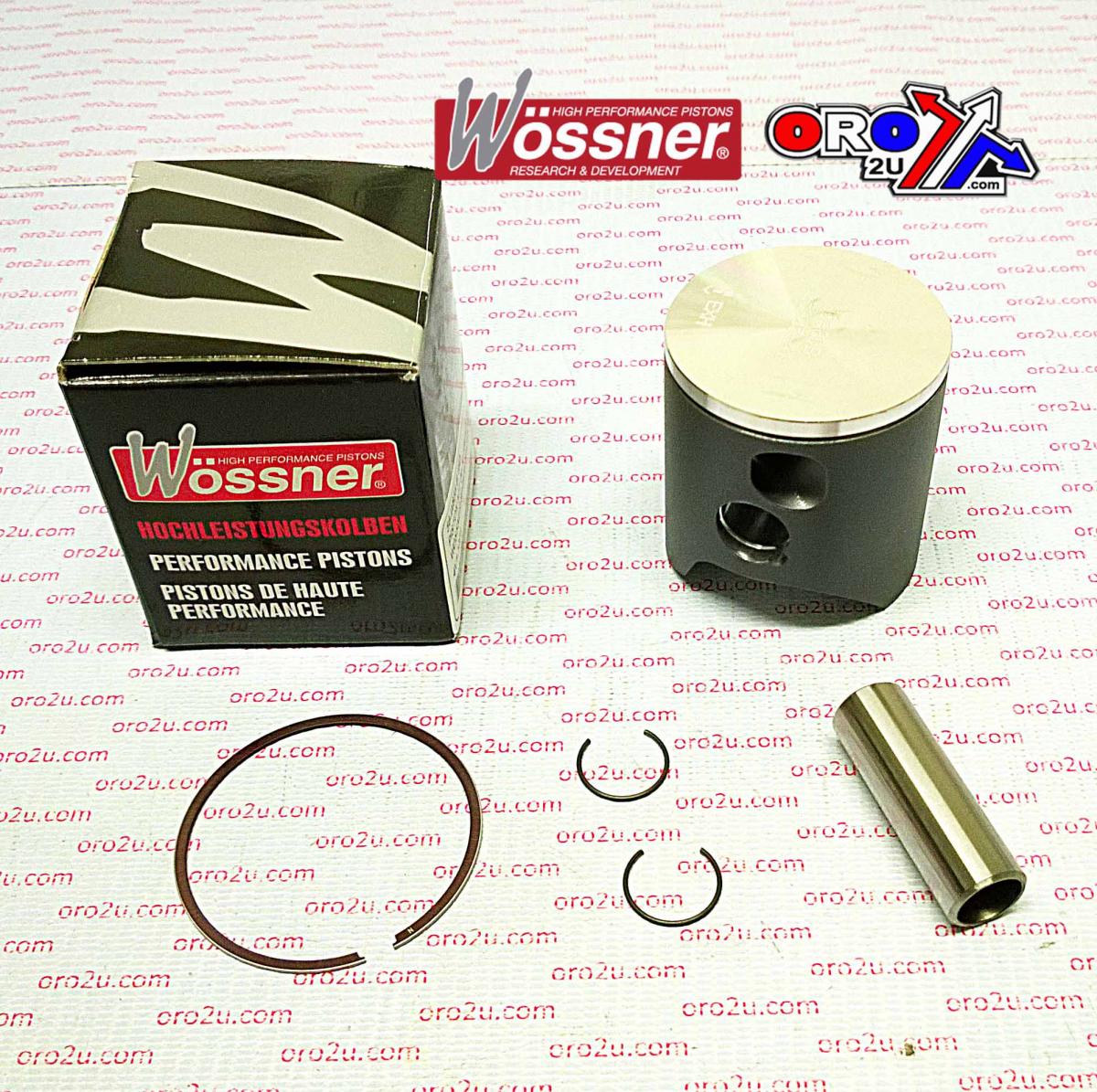

PISTON KIT 04-10 RM125 54.00 A WOSSNER 8098DA SUZUKI MX

Piston Kit 54mm Bore 53.95 Wossner 8098DA (STD)

SUZUKI
RM125 2004 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W835.A.WO (oro2u.com)
Wossner Piston Suzuki RM125 54 mm Bore (PN# 8098DA)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2016

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)

Cross reference numbers ONLY.
12110-36E31-0F0, 09104823, 835M05400

- 2004 Suzuki RM 125 - 2005 Suzuki RM 125 - 2006 Suzuki RM 125 - 2007 Suzuki RM 125 - 2008 Suzuki RM 125 - 2009 Suzuki RM 125

Cross reference numbers ONLY. 12101-36821 [ 12110-36F00-0F0 + 12141-36F00 + 12151-01B41 + 09381-15001 ]

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
