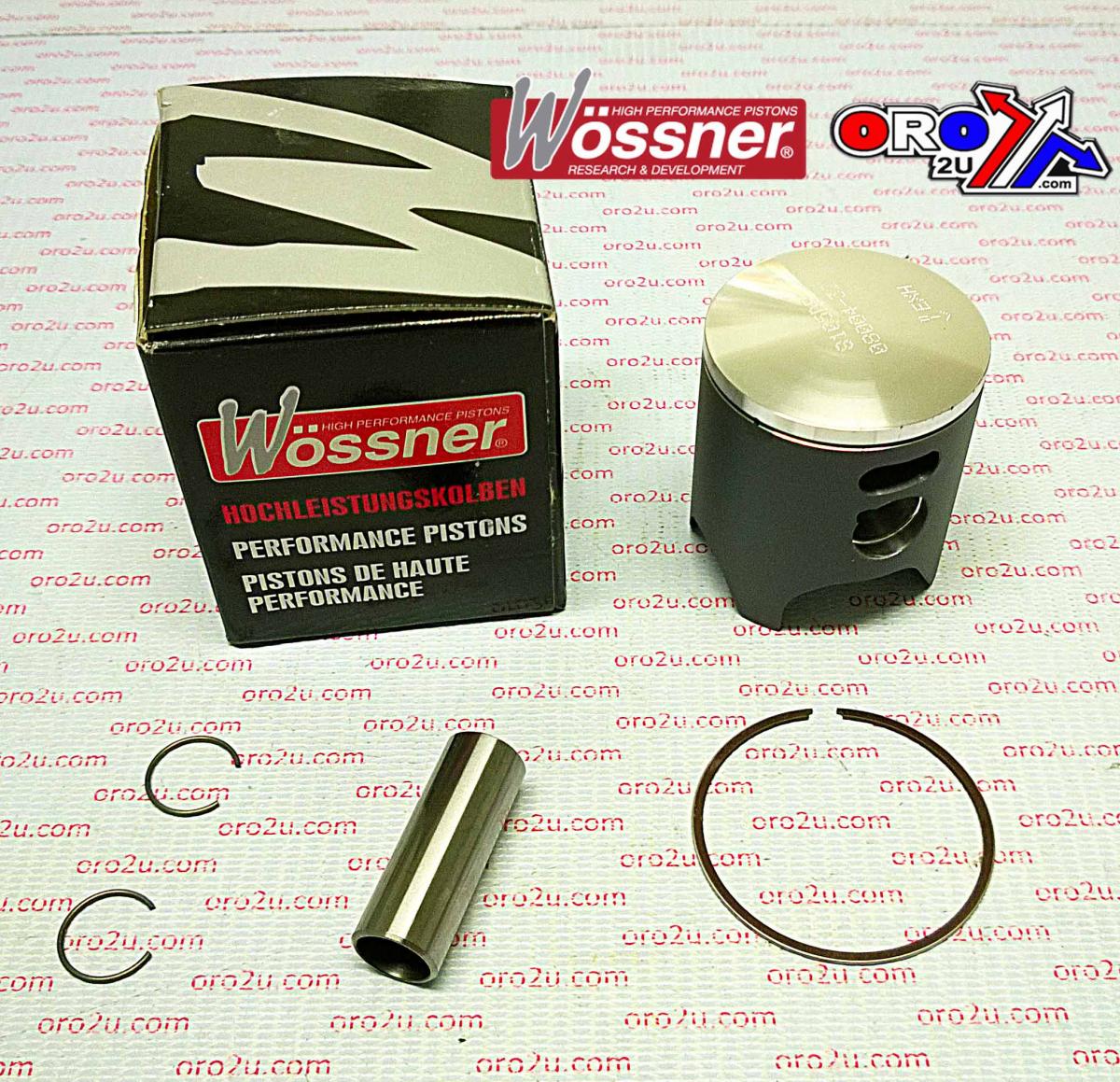

PISTON KIT 03-09 CR85 47.50 C WOSSNER 8105DC HONDA MX

Piston Kit 47.52mm Bore 47.47 Wossner 8105DC (+0.02)

HONDA
CR85 2003 - 2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W833.C.WO (oro2u.com)
Wossner Piston Honda CR85 47.52 mm Bore (PN# 8105DC)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB4750
Rod P/N P2003

Display (cm3) 84
Hub stroke (mm) 47.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 24.00
Theorectical weight (G)

- 2003 Honda CR 85 - 2004 Honda CR 85 - 2005 Honda CR 85 - 2006 Honda CR 85 - 2007 Honda CR 85 - 2008 Honda CR 85

- 2009 Honda CR 85

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
