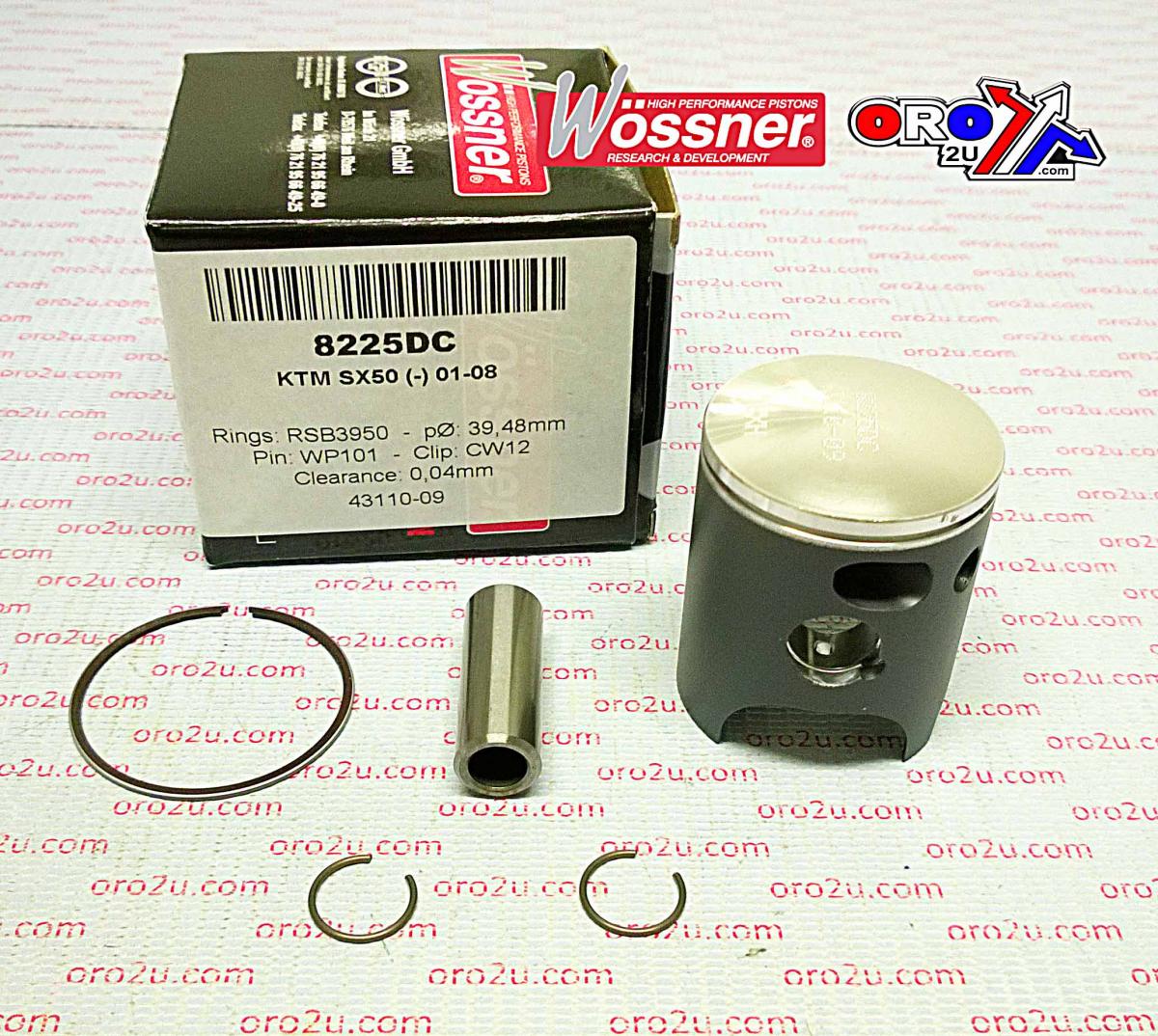

WOSSNER 39.5mm FORGED PISTON KIT C, KTM SX50 2002-2008

Piston Kit 39.52mm Bore 39.47 Wossner 8225DC (+0.02mm)

KTM
SX50 2001 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W803.C.WO (oro2u.com)
Wossner Piston KTM SX50 39.5 mm Bore (PN# 8225DC)
Lock P/N CW12
Pin P/N WP101
Ring Set P/N RSB3950

Display (cm3) 50
Hub stroke (mm) 40.00
Clearance (mm) 0.04
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 21.60
Theorectical weight (G)

Select your car to see if this product fits:
- 2001 KTM SX 50 - 2002 KTM SX 50 - 2003 KTM SX 50 - 2004 KTM SX 50 - 2005 KTM SX 50 - 2006 KTM SX 50

- 2007 KTM SX 50 - 2008 KTM SX 50

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
