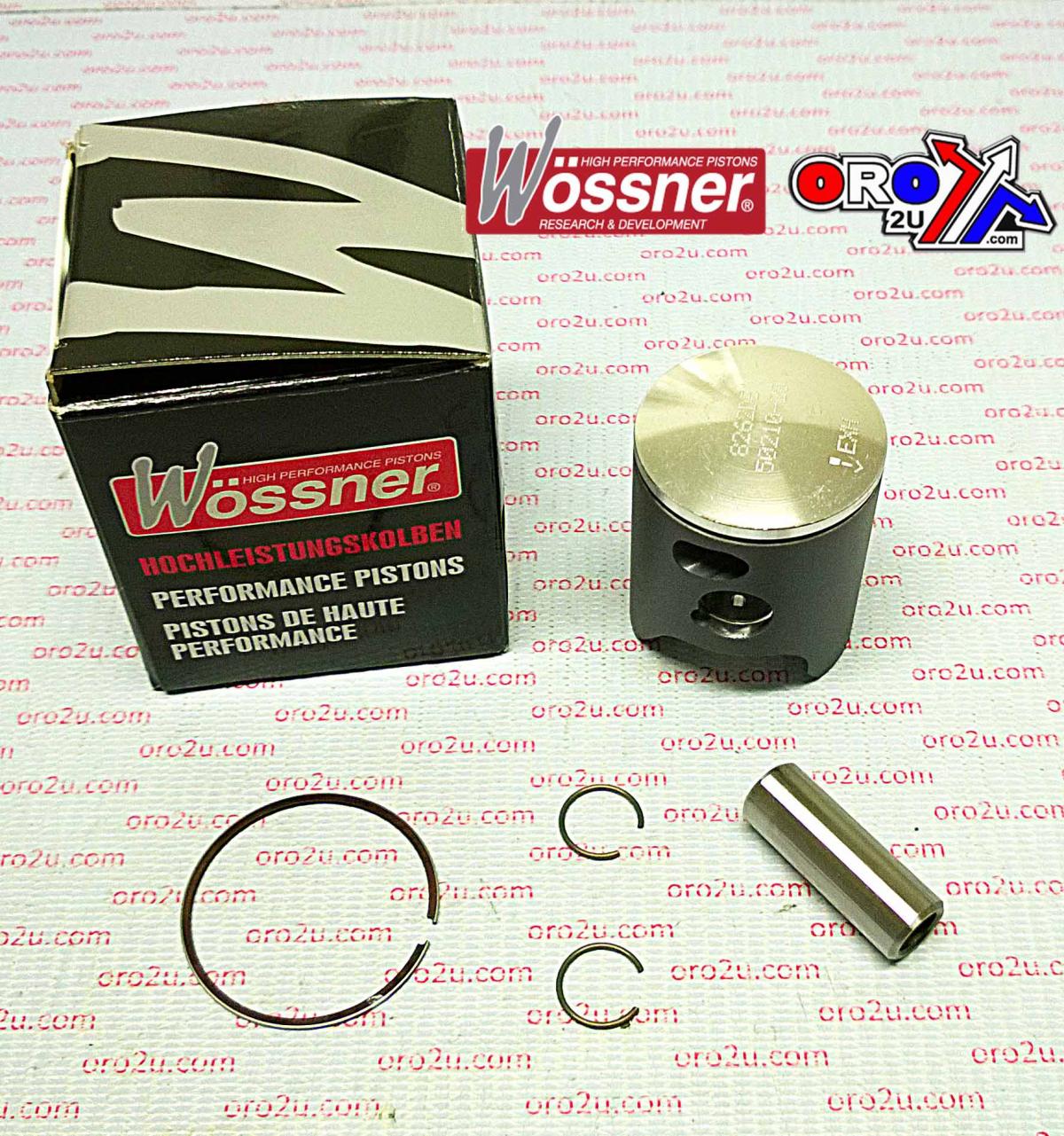

WOSSNER 39.5mm PISTON KIT A, KTM SX50 09-21, HUSQVARNA TC50 17-21

Piston Kit 39.50mm Bore 39.46 Wossner 8262DA (STD)

KTM
SX50 2009 - 2020,
HUSQVARNA
TC50 2017-2020,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. Part No. 56-W802.A.WO (oro2u.com)
Wossner Piston KTM SX50 39.50 Bore (PN# 8262DA)
Lock P/N CW12
Pin P/N WP101
Ring Set P/N RSB2950
Rod P/N P2053

Display (cm3) 50
Hub stroke (mm) 40.00
Clearance (mm) 0.04
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 21.60
Theorectical weight (G)

Cross Reference Numbers Only:
45230007000 I , 45230038000, 09104899, 874M03950, 45230015000

�
