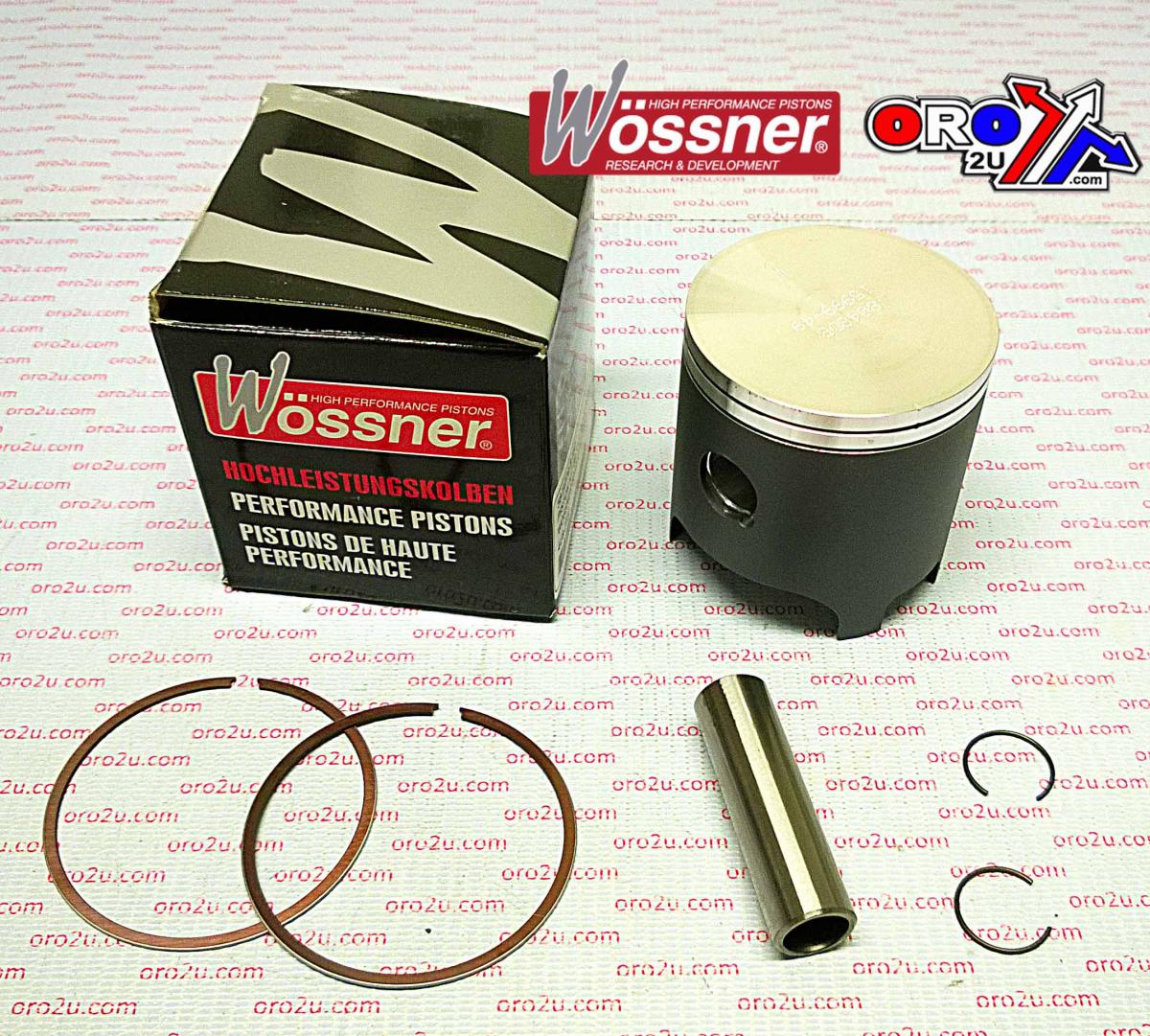

WOSSNER 64mm FORGED PISTON KIT C, KTM 200 1998-2016

Piston Kit 64.02mm Bore 63.96 WOSSNER 8048DC (+0.02MM)

KTM
SX 200 2003 - 2005,
EXC 200 1998 - 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W770.C.WO
Lock P/N CW16
Pin P/N WP027
Ring Set P/N RSB6400 x 2

Display (cm3) 200
Hub stroke (mm) 60.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

�
Cross reference numbers.
WOSSNER 8048DA, WISECO 770M06400, VERTEX 22926, PROX 01-6248, NAMURA NX-70021,
Piston I Cpl. 52330007400 I ,
Piston Ii Cpl. 52330007400 II ,
PIN 52330033100 ,
RING 52330032100 ,
CLIP 52330074100 ,

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
