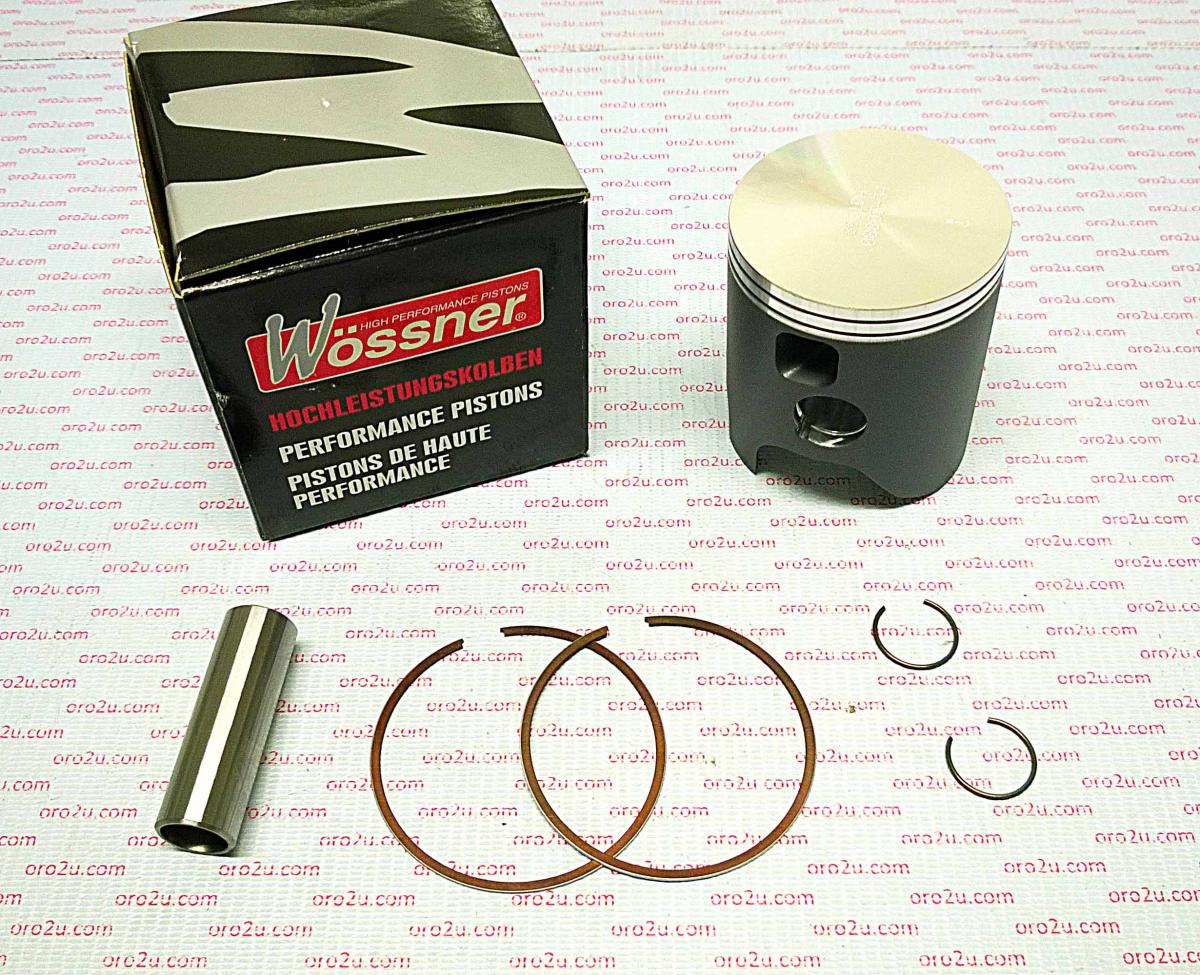

WOSSNER 66.4mm PISTON KIT A, KTM 250 EXC/MXC 2000-2005, 2-RING

Piston kit 66.40mm Bore 66.34 Wossner 8081DA (STD)

KTM
MXC 250 2000 - 2005,
EXC 250 2000 - 2005,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W753.A.WO
Wossner Piston KTM EXC250 66.4 mm Bore (PN# 8081DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 X 2
Rod P/N P2023
SIZE:66.34mm

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
54630207100, 09104804 � � � , 857M06640

�

Select your car to see if this product fits:
- 2000 KTM EXC 250 - 2001 KTM EXC 250

- 2002 KTM EXC 250 - 2003 KTM EXC 250 - 2004 KTM EXC 250 - 2005 KTM EXC 250

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
