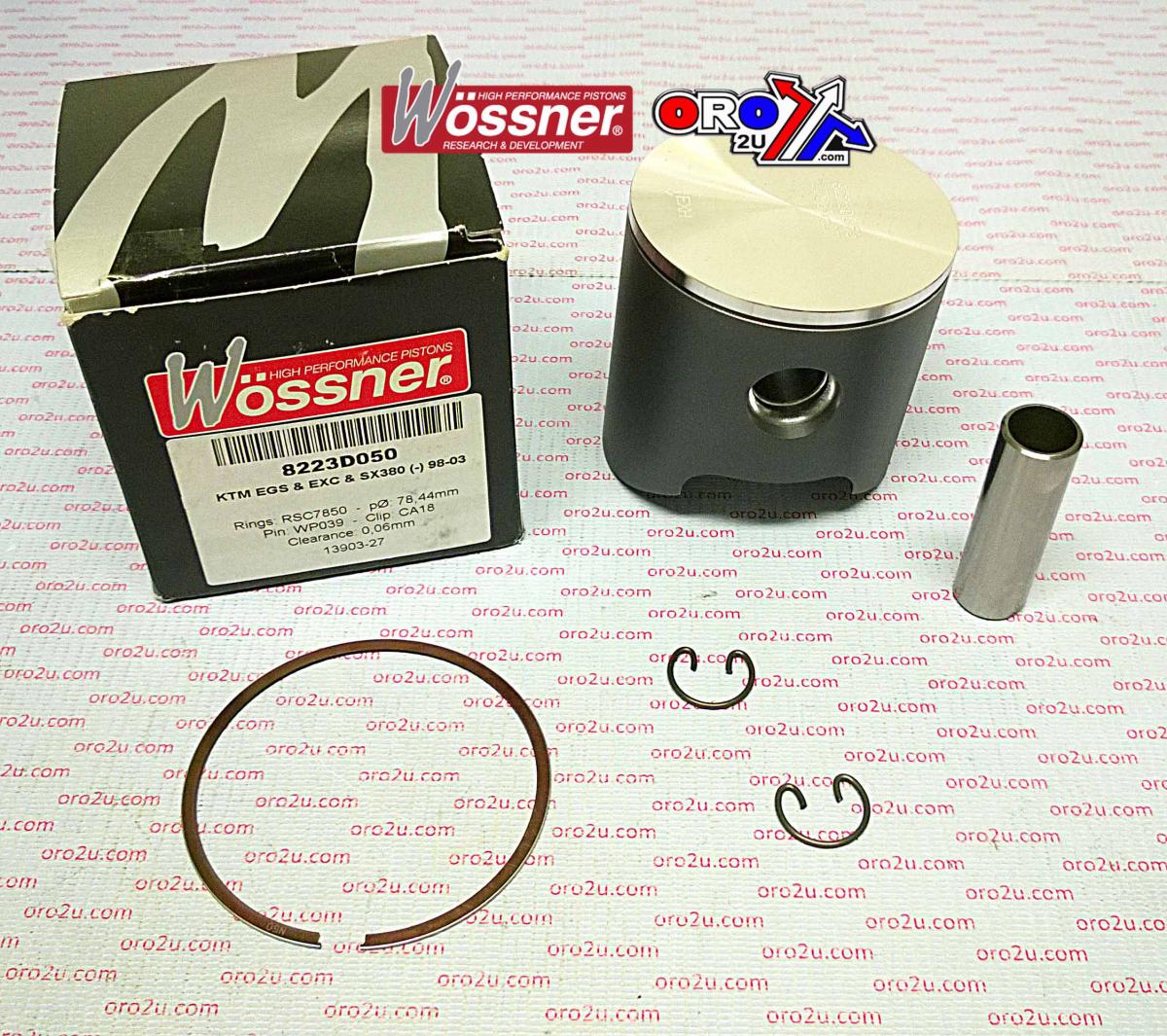

WOSSNER 78mm FORGED PISTON KIT A, KTM 380 1998-2002

Piston kit 78mm Bore 77.94 Wossner 8223DA (STD)

KTM
EGS 1998-2002,
EXC 1998-2002,
SX360 1998-2002,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W748+00A.WO
Wossner Piston KTM EGS380 78 mm Bore (PN# 8223DA)
KTM380 EGS/ECX/SX 98-02
Lock P/N CA18
Pin P/N WP039
Ring Set P/N RSC7800

Display (cm3) 368
Hub stroke (mm) 77.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
