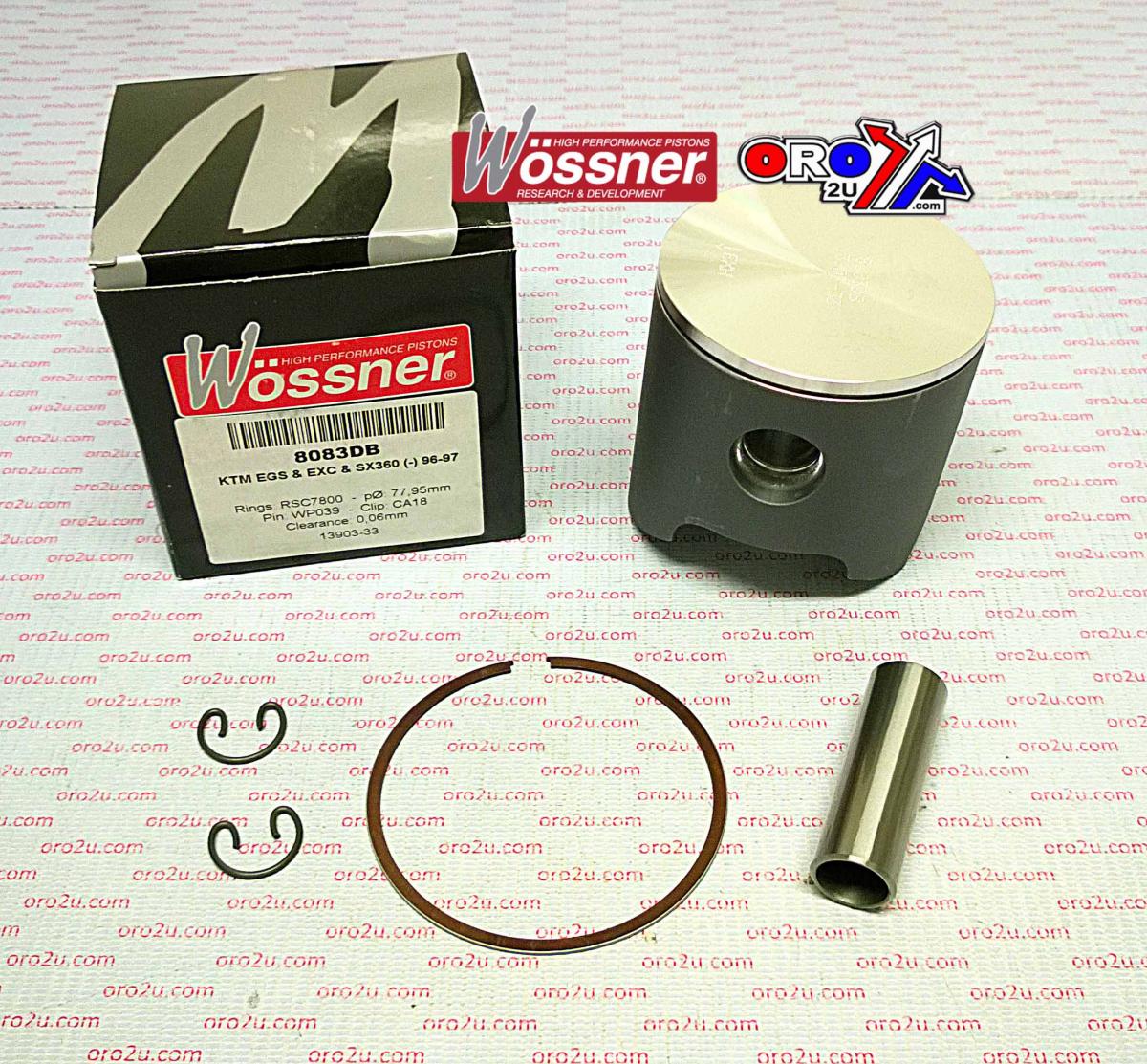

WOSSNER 78.5mm FORGED PISTON KIT KTM 360 1996-1997

Piston kit 78.50mm Bore 78.44 Wossner 8083D050 (+0.50)

KTM
EGS 1996 - 1997,
EXC 1996 - 1997,
SX360 1996 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W747+050.WO
Wossner Piston KTM EGS360 78.50 mm Bore (PN# 8083D050)
KTM360 EGS/ECX/SX 96-97
Lock P/N CW18
Pin P/N WP039
Ring Set P/N RSC7850

Display (cm3) 353
Hub stroke (mm) 74.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
