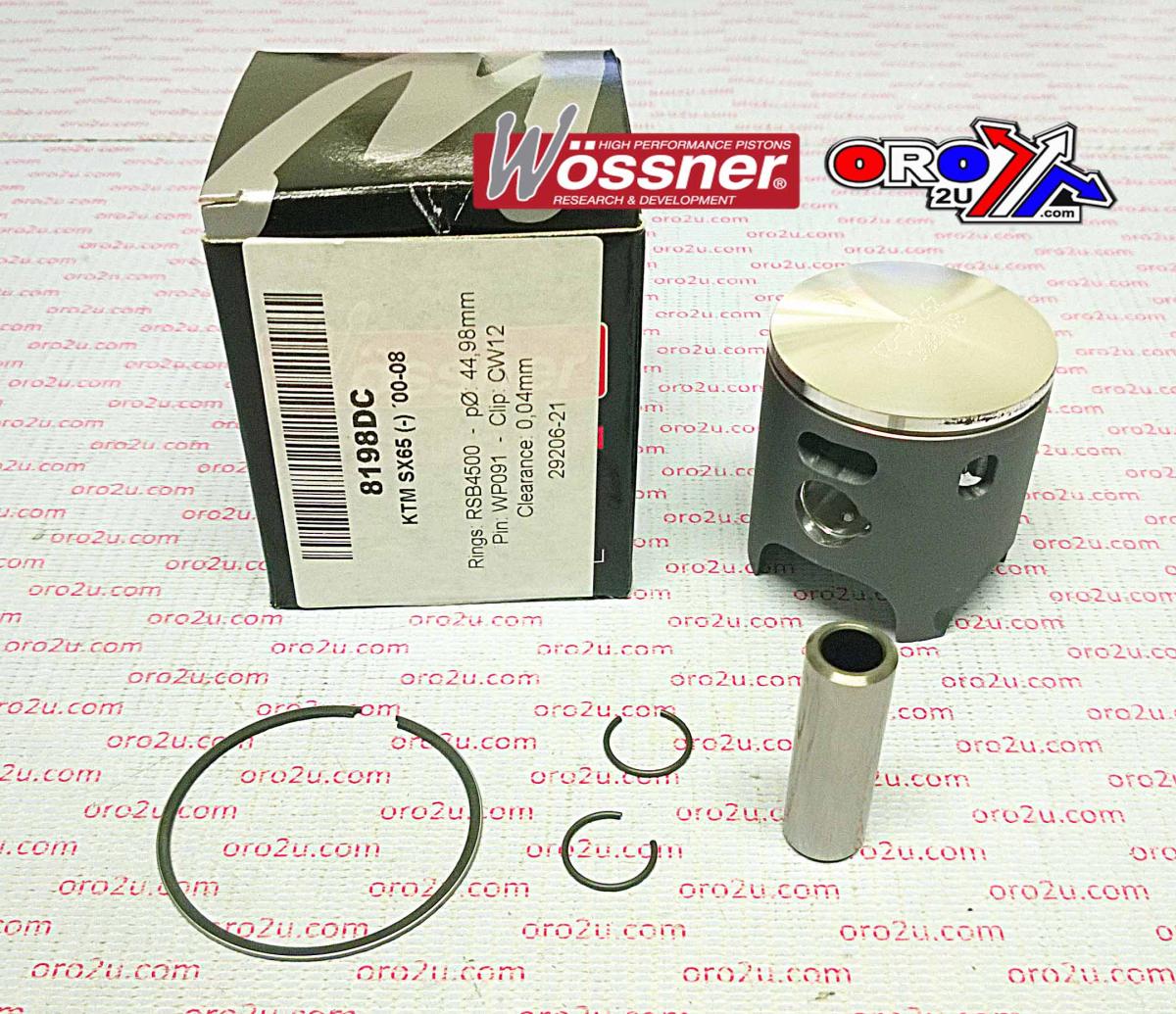

WOSSNER 45mm PISTON KIT C, KTM SX65 2000-2008

Piston kit 45.02mm Bore 44.98 Wossner 8198DC (+0.02)

KTM
SX65 2000 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W746.C.WO
Wossner Piston KTM SX65 45.02 mm Bore (PN# 8198DC)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB4500
Rod P/N P2002

Display (cm3) 63
Hub stroke (mm) 40.00
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 21.70
Theorectical weight (G)

1997 KTM SX 65 - 1998 KTM SX 65 - 1999 KTM SX 65 - 2000 KTM SX 65 - 2001 KTM SX 65 - 2002 KTM SX 65

- 2003 KTM SX 65 - 2004 KTM SX 65 - 2005 KTM SX 65 - 2006 KTM SX 65 - 2007 KTM SX 65 - 2008 KTM SX 65

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
