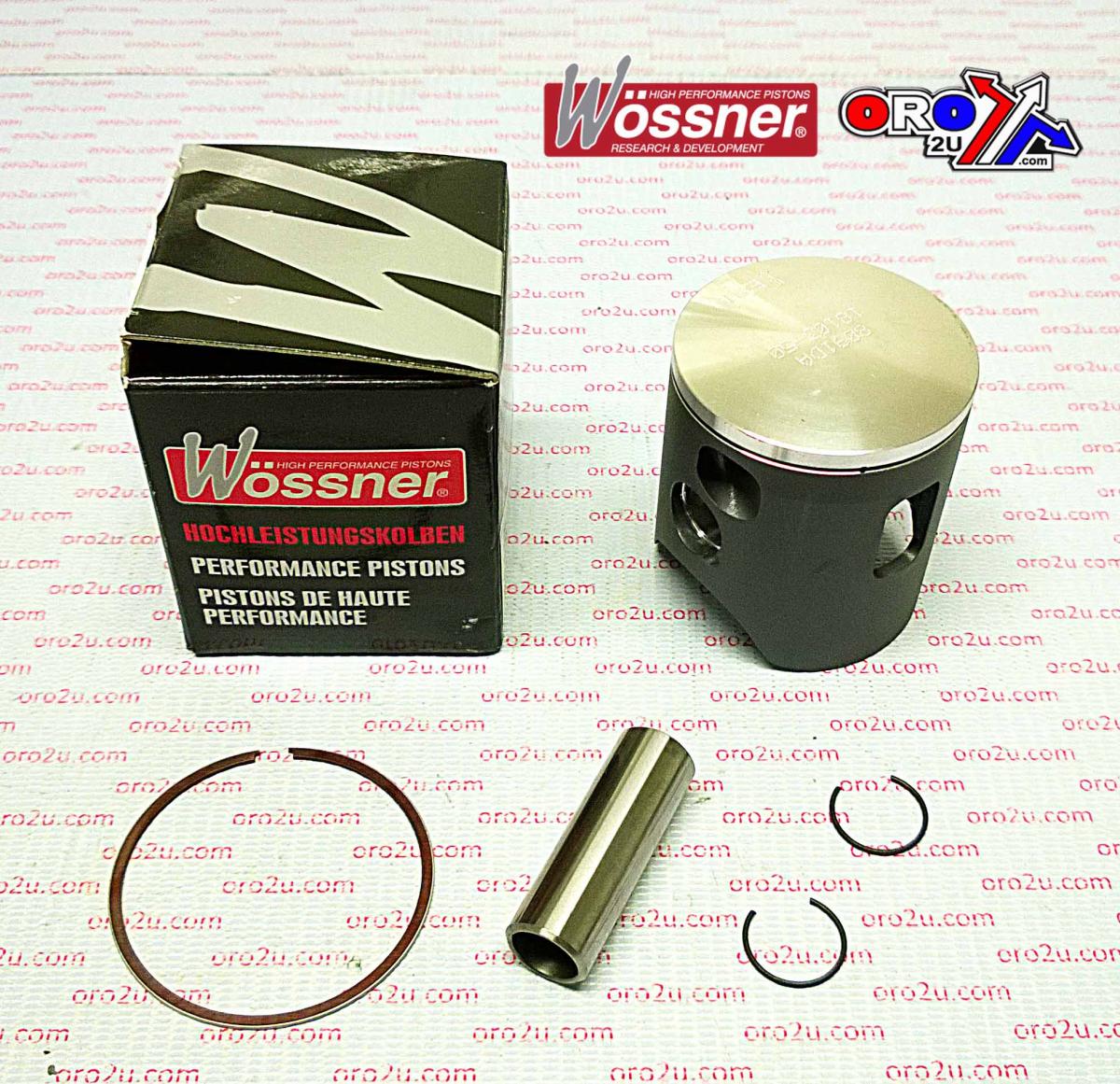

WOSSNER 54.5mm PISTON KIT YAMAHA YZ125 98-01, GAS GAS MC/MX/EC 125 00-01

Piston kit 54.50mm Bore 54.45 Wossner 8091D050 (+0.50)

YAMAHA
YZ125 / WR125 1998 - 2001,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W726.050.WO
Wossner Piston Yamaha YZ125 54 mm Bore (PN# 8091D050)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5450
Rod P/N P2019

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

Select your car to see if this product fits:
1998 Yamaha WR 125 1998 Yamaha YZ Base 1999 Yamaha WR 125 1999 Yamaha YZ Base

2000 Yamaha WR 125 2000 Yamaha YZ Base 2001 Yamaha WR 125 2001 Yamaha YZ Base

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
