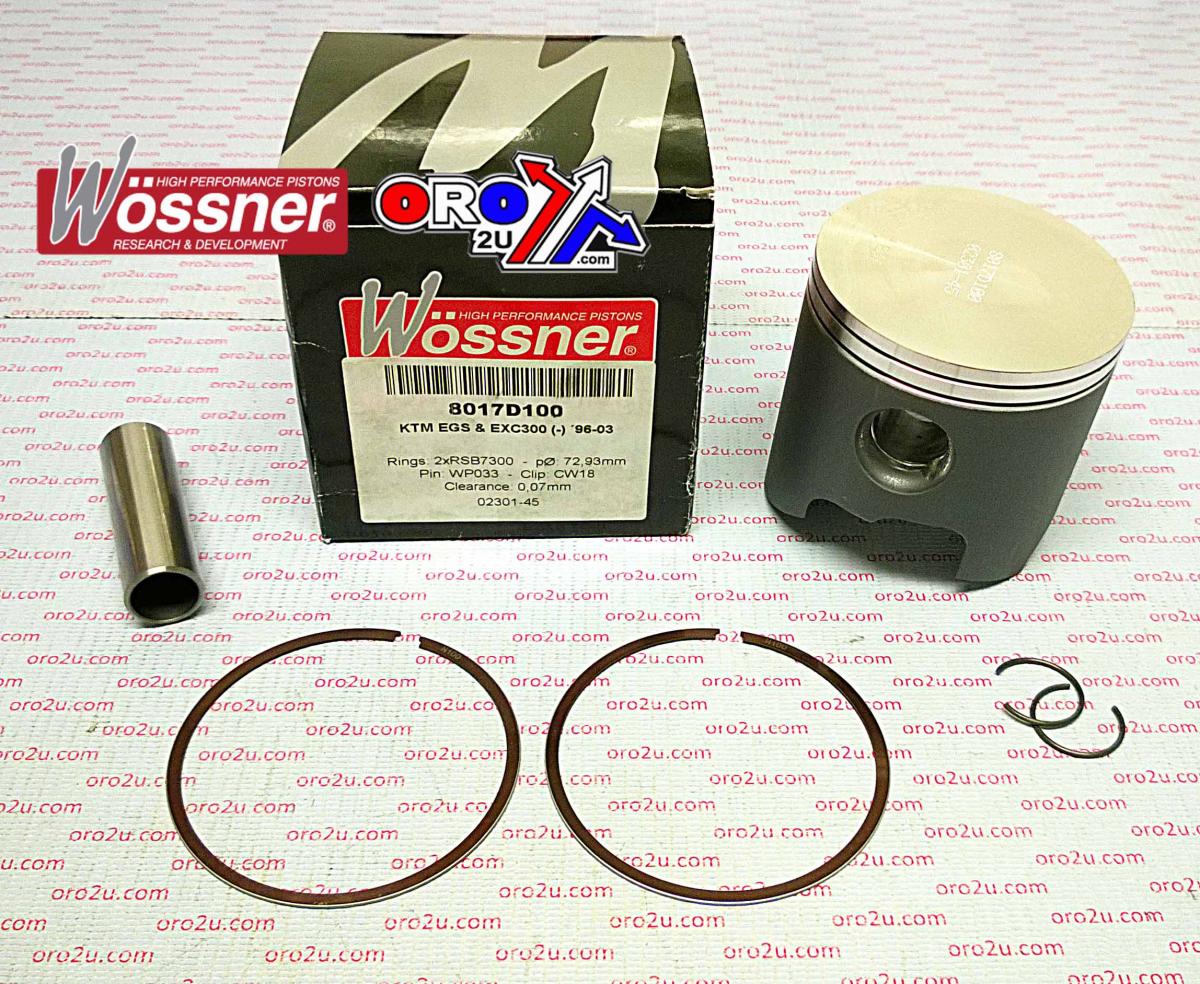

WOSSNER 72mm FORGED PISTON KIT b, KTM 300 SX/EXC/MXC 1996-2003

Piston kit 72.01mm Bore 71.94 Wossner 8017DB (+0.01)

KTM
EGS300 1996 - 2003,
EXC300 1996 - 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W712+00B.WO
Wossner Piston KTM EGS300 72.01 mm Bore (PN# 8017DB)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7200 X 2
Rod P/N P2024

Display (cm3) 297
Hub stroke (mm) 72.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.70
Theorectical weight (G)

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
