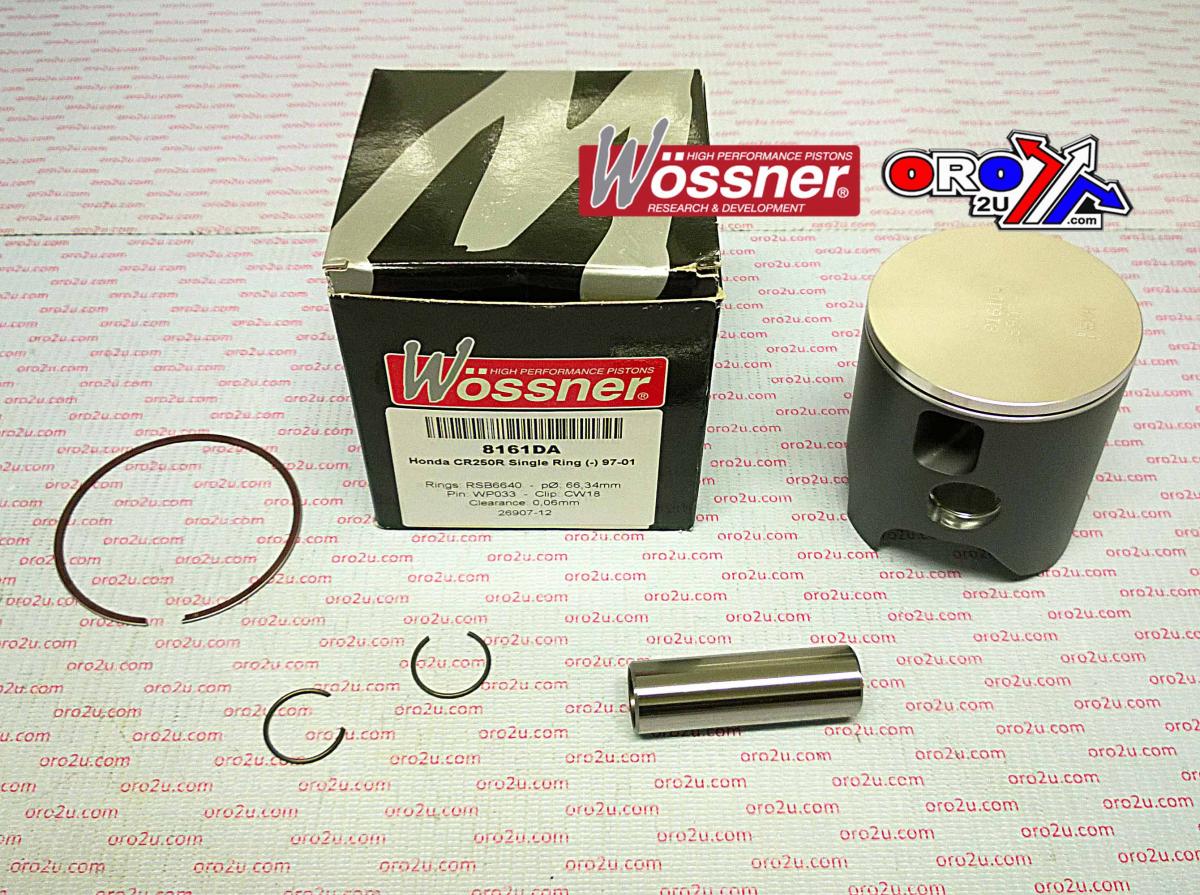

PISTON KIT 97-01 CR250 66.40 WOSSNER 8161DA 1-RING PISTON KIT 97-01 CR250 66.40

Piston kit 67.40mm Bore 66.34 Wossner 8161DA (STD)

HONDA
CR250R 1997 - 2001 (1 Ring),

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W702.A.WO
Wossner Piston Honda CR250R 66.4 mm Bore (PN# 8001DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640
Rod P/N P2021

Display (cm3) 290
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
13101-KZ3-L10, 768M6640

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
